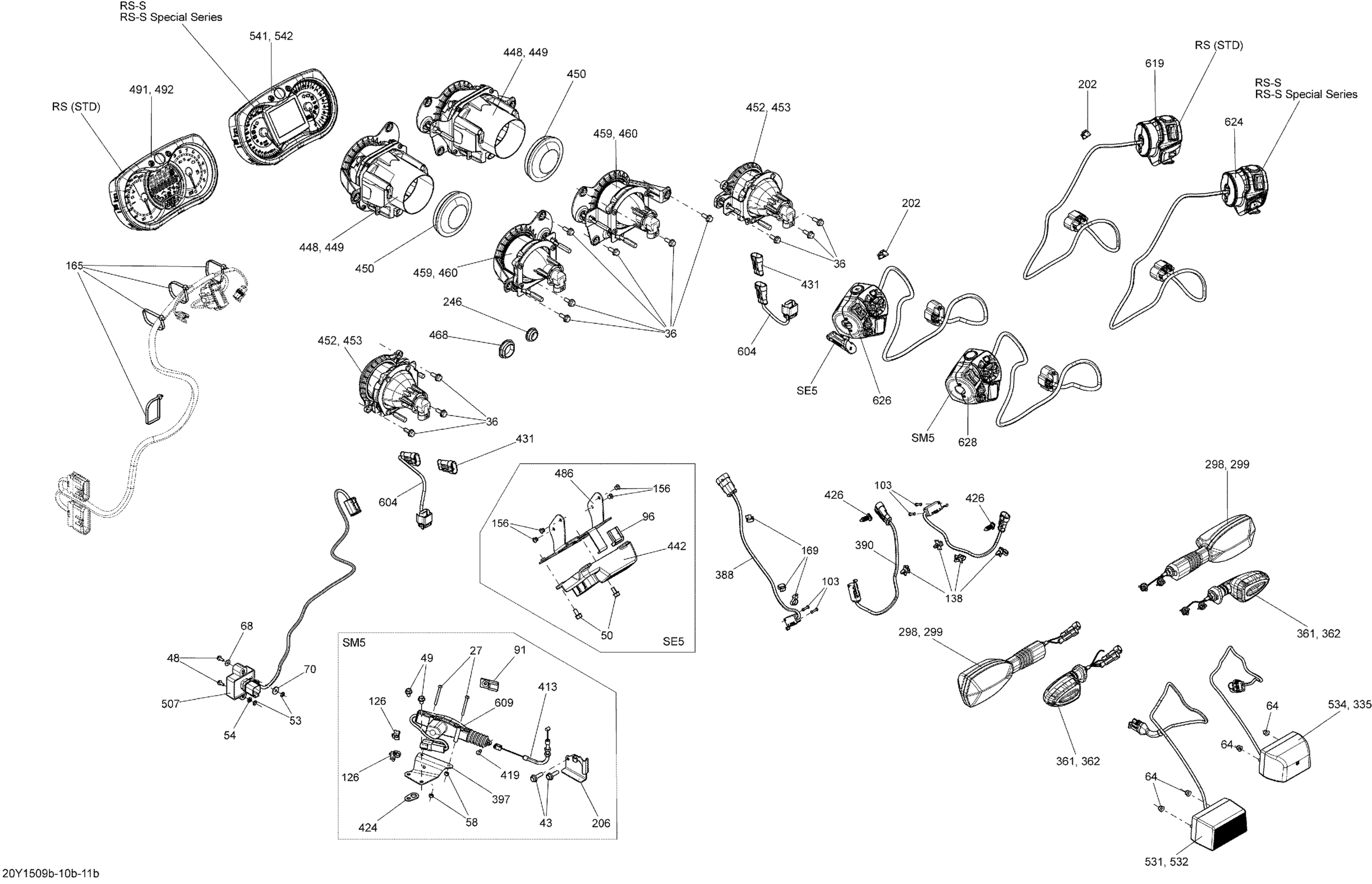

Can-Am Spyder RS SE5, 2015 Electrical System 2_20Y1509b Diagram

#

Description
Price

27

Socket Head Screw M4 X 40 | X

205444086

$1.42

36

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

43

Hex. Flange Screw M6 X 20

207662044

$1.66

48

HEX. SCREW FORMING M4 X 16 - Call your local BRP dealership

250000674

Unavailable

49

Hex. Forming Screw M6 X 10

210261050

$1.42

50

Hex. Flange Screw M6 X 12

210261250

$1.56

53

Push Nut | Not shown

211100002

$0.83

54

Flat Washer, Emhart

213200016

$0.68

58

Elastic Stop Nut M4

232541414

$0.48

64

Elastic Flange Nut M5

233251494

$1.74

68

Flat Washer 4 mm, Stainless

234042600

$0.92

70

Flat Washer 5 mm, Stainless

234052400

$2.34

91

Clip

270000141

$8.33

96

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

103

Pop Rivet

293150150

$2.31

126

Tie-Rap 173 mm

293750009

$0.85

138

Tie-Rap 173 mm

293750009

$0.85

156

Pop Rivet 3/16"

390402400

$0.25

165

Tie-Rap 180 mm

414115200

$0.09

202

Clip

414227300

$1.45

206

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

246

Cap

705003464

$10.42

298

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.00

299

Bulb 12V 21W | Not Shown

715900043

$17.00

361

LH Rear Turn Signal Ass'y

710001290

$69.00

361

RH Rear Turn Signal Ass'y

710001337

$69.00

362

Bulb 12V/10W, Amber

219800039

Unavailable

388

Brake Pressure Switch Ass'y

710001379

$41.51

390

Brake Pressure Switch Ass'y

710001379

$41.51

397

ACTUATOR SUPPORT - Call your local BRP dealership | SM5

710001599

Unavailable

413

REVERSE CABLE - Call your local BRP dealership | SM5

707000636

Unavailable

419

Pop Rivet 1/8" | SM5

390401600

$5.32

424

Shim

710002024

$6.00

426

Connector Holder

710002033

$3.22

431

Connector Plug

710004901

$13.00

442

CALIBRATED MODULE - Call your local BRP dealership | SE5

710003750

Unavailable

448

LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004952

Unavailable

448

RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004951

Unavailable

449

Halogen Bulb

219400069

$20.00

450

Cap

219400070

$16.89

452

LOW BEAM ASS'Y - Call your local BRP dealership | Model-Europe, Brazil, Australia, Includes 452 to 453

710003504

Unavailable

452

LOW BEAM ASS'Y - Call your local BRP dealership | Model-Europe, Brazil, Australia, Includes 452 to 453

710003505

Unavailable

453

Halogen Bulb

415129249

$39.97

459

LH HIGH BEAM ASS'Y - Call your local BRP dealership | Europe, Int'l

710002500

Unavailable

459

RH HIGH BEAM ASS'Y - Call your local BRP dealership | Europe, Int'l

710002499

Unavailable

460

Halogen Bulb

415129249

$39.97

468

Rubber Plug

710002858

$2.75

486

Tcm Support | SE5

710004629

$16.00

491

MULTIFUNCTION GAUGE CLUSTER - Call your local BRP dealership | Includes 491 to 492

710003948

Unavailable

492

Lens | XTP

415129349

$23.05

507

CCK Module Ass'y | Includes 1300 to 1300d

710006467

$195.00

531

License Plate Light

710003348

$71.00

532

Bulb 12V 10W | Not Shown

415129261

$2.00

534

License Plate Light

710003349

$71.00

535

Bulb 12V 10W | Not Shown

415129261

$2.00

541

Not Available As Spare Parts

XXX

Unavailable

542

Not Available As Spare Parts

XXX

Unavailable

604

WIRING HARNESS_ADAPTOR - Call your local BRP dealership | Model-Europe, Brazil, Australia

710004761

Unavailable

609

Reverse Actuator Ass'y

710008369

$77.00

619

RH Switch Housing

710004582

$570.00

624

Not Available As Spare Parts

XXX

Unavailable

626

Housing-Switch LH | SE5

710004584

$430.00

628

LH Switch Housing | SM5

710004161

$570.00
