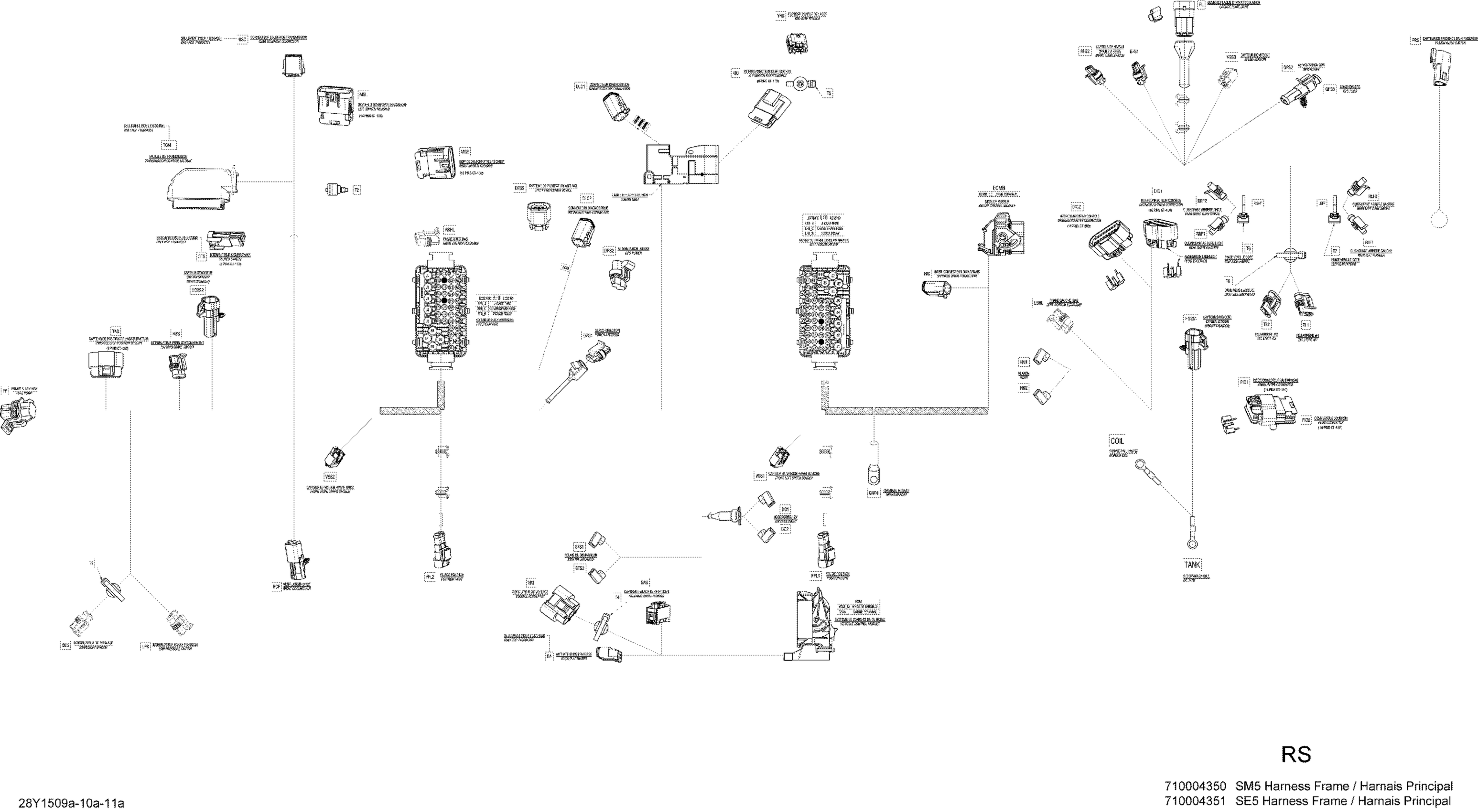

Can-Am Spyder RS SE5, 2015 Electrical Harness Frame SE5_28Y1509a Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership

710004351

Unavailable

188

Tubing 12 mm

409902000

Unavailable

331

PROTECTOR TUBE, 4MM 1000MM LONG - Call your local BRP dealership

219704446

Unavailable

370

Terminal

710001873

$2.02

426

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

1035

Adhesive Tape

710001767

Unavailable

1150

WIRE HOLDER - Call your local BRP dealership

710002025

Unavailable

1166

WIRE HOLDER COVER - Call your local BRP dealership

710002189

Unavailable

1343

Female Housing, 3 Circuits

515177247

Unavailable

BFS1

Female Housing, 2 Circuits

515177192

$6.32

BFS1

Female Terminal

710001164

$5.92

BFS1

Seal

710001233

$2.55

BFS2

Female Housing, 2 Circuits

515177192

$6.32

BFS2

Female Terminal

710001164

$5.92

BFS2

Seal

710001233

$2.55

BLS

Female Housing, 2 Circuits

409209500

$13.48

BLS

Wire Seal

515176621

$7.00

BLS

Female Terminal

710001340

$5.11

COIL

Open Barrel

278000992

$1.79

COIL

Heat Shrink Tubing

710002588

Unavailable

D2

Diode

409012700

$10.83

D2

Heat Shrink

710002589

Unavailable

DC1

Female Terminal

710002398

$2.31

DC1

Female Terminal

710002399

$1.94

DC2

CAP - Call your local BRP dealership

710000670

Unavailable

DC2

Female Terminal

710002398

$2.31

DC2

Female Terminal

710002399

$1.94

DC2

Tie-Rap, 100mm

710002713

Unavailable

DESS

Housing Connector

515177287

$7.46

DESS

Lock

710001222

$1.68

DESS

Terminal

710001229

$3.02

DESS

Seal

710001233

$2.55

DIC1

Lock

710001222

$1.68

DIC1

Cap

710001225

$7.27

DIC1

Housing

710001226

$11.83

DIC1

Terminal

710001229

$3.02

DIC1

Seal

710001233

$2.55

DIC2

Wire Seal

278002186

$4.51

DIC2

Female Terminal

278002187

$5.04

DIC2

Lock

710001222

$1.68

DIC2

Terminal

710001873

$2.02

DIC2

Seal | PACKARD 12191222

710001858

$5.34

DIC2

HOUSING - Call your local BRP dealership

710001874

$13.00

DIC2

Plug

710002075

$2.47

DLC1

Female Terminal

278000632

$1.69

DLC1

Female Terminal

278001665

$3.73

DLC1

Housing, 6 Circuits

278002896

$14.02

DLC1

Sealing Cap

293000052

$2.55

DLC1

Male Wedge, 6 Circuits

515175678

$5.11

DLC2

Female Terminal

278001665

$3.73

DLC2

Housing, 6 Circuits

278002896

$14.02

DLC2

Sealing Cap

293000052

$2.55

DLC2

Male Wedge, 6 Circuits

515175678

$5.11

DPS1

Cap

710001114

$16.89

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.28

DPS1

Wire Seal

710001163

$5.10

DPS1

Female Terminal

710001164

$5.92

DPS1

Cap

710001225

$7.27

DPS2

Female Terminal

710001160

$5.14

DPS2

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS2

SEAL - Call your local BRP dealership

710001935

Unavailable

ECMB

Female Terminal Housing, 48 Circuits

710001588

$39.62

ECMB

Female Terminal

710001589

$1.79

ECMB

Cover, 48 positions

710001591

$10.05

ECMB

Plug

710001592

$2.12

ECMB

Tie-Rap, 100mm

710002713

Unavailable

ECMB_L

Female Terminal

710001590

$1.69

ECMB_L

Female Terminal

710001727

$2.55

FP

Female Terminal

278001481

$3.02

FP

Seal

278001482

$2.55

FP

Seal

710000643

$4.12

FP

Housing

710001132

$9.60

FP

Lock

710001133

$4.12

FPL1

Male Terminal Housing, 2 Circuits

409209400

$14.97

FPL1

Male Terminal

515176164

$6.43

FPL1

Wire Seal

515176621

$7.00

FPL1

Clip

710000992

$4.00

FPL1

Grommet

710002586

Unavailable

FPL1

Grommet

710002586

Unavailable

FPL1

Heat Shrink Tubing

710002588

Unavailable

FPL1

Tie-Rap, 100mm

710002713

Unavailable

FPL1

Tie-Rap, 100mm

710002713

Unavailable

FPL1

Tie-Rap, 100mm

710002713

Unavailable

FPL1

Tie-Rap, 100mm

710002713

Unavailable

FPL2

Male Terminal Housing, 2 Circuits

409209400

$14.97

FPL2

Male Terminal

515176164

$6.43

FPL2

Wire Seal

515176621

$7.00

FPL2

Clip

710000992

$4.00

FPL2

Grommet

710002586

Unavailable

FPL2

Grommet

710002586

Unavailable

FPL2

Heat Shrink Tubing

710002588

Unavailable

FPL2

Tie-Rap, 100mm

710002713

Unavailable

FPL2

Tie-Rap, 100mm

710002713

Unavailable

FPL2

Tie-Rap, 100mm

710002713

Unavailable

FPL2

Tie-Rap, 100mm

710002713

Unavailable

GND1

Adhesive Tape

710001767

Unavailable

GPS2

Male Terminal Housing, 2 Circuits

409209400

$14.97

GPS2

Male Terminal

515176164

$6.43

GPS2

Wire Seal

515176621

$7.00

GPS2

Connector Holder

710002033

$3.22

GPS3

Plug

409013700

$4.42

GPS3

Female Housing, 2 Circuits

409209500

$13.48

GSC

Female Terminal

278001665

$3.73

GSC

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

GSC

CONNECTOR - Call your local BRP dealership

710001936

Unavailable

HBS

Plug

409013700

$4.42

HBS

Female Housing, 3 Circuits

409209600

$35.35

HBS

Wire Seal

515176621

$7.00

HBS

Female Terminal

710001340

$5.11

HIC

Female Terminal

278000632

$1.69

HIC

Sealing Cap

293000052

$2.55

HIC

MALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

515175672

Unavailable

HIC

MALE WEDGE, 4 CIRCUITS - Call your local BRP dealership

515175677

Unavailable

HN1

Female Terminal

710002398

$2.31

HN1

Female Terminal

710002399

$1.94

HN2

Female Terminal

710002398

$2.31

HN2

Female Terminal

710002399

$1.94

HO2S1

Seal

278001482

$2.55

HO2S1

Connector Holder

710002033

$3.22

HO2S1

Housing

710002466

$2.98

HO2S1

Gold Terminal

710002597

$2.98

HO2S2

Seal

278001482

$2.55

HO2S2

Connector Holder

710002033

$3.22

HO2S2

Housing

710002466

$2.98

HO2S2

Gold Terminal

710002597

$2.98

KIC

Cap

710001225

$7.27

KIC

Housing

710001231

$12.05

KIC

Seal Wire

710001332

$2.72

KIC

TERMINAL - Call your local BRP dealership

710001863

Unavailable

LBHL

Wire Seal

278001013

$2.72

LBHL

Female Terminal

278001014

$2.72

LBHL

Female Housing, 3 Circuits

409209600

$35.35

LFB

Wire Seal

278000218

$3.48

LFB

Wire Seal

278001065

$6.03

LFB

Female Terminal

278002578

$0.86

LFB

Seal Plug

278002880

$5.43

LFB

Relay, 30 AMP

515176774

$19.20

LFB

Little Fuse, 5 Amperes

710000742

$7.24

LFB

Little Fuse, 10 Amperes

710000744

$7.24

LFB

Little Fuse, 10 Amperes

710000744

$7.24

LFB

Little Fuse, 15 Ampere

710000745

$6.77

LFB

Little Fuse, 15 Ampere

710000745

$6.77

LFB

Little Fuse, 15 Ampere

710000745

$6.77

LFB

Female Terminal

710000918

$5.10

LFB

Relay

715900824

$16.22

LFB

Relay

715900824

$16.22

LFB

Relay

715900824

$16.22

LFB

PLUG - Call your local BRP dealership

710002633

Unavailable

LFB

PLUG - Call your local BRP dealership

710002633

Unavailable

LFB

Tie-Rap

710002714

$2.98

LFB

Tie-Rap

710002714

$2.98

LFB

Tie-Rap

710002714

$2.98

LFB

Fusebox Ass'y

710005623

$46.12

LFB_C

Little Fuse, 25 Ampere

278002389

$4.42

LFB_C

Little Fuse, 5 Amperes

710000742

$7.24

LFB_C

Little Fuse, 10 Amperes

710000744

$7.24

LFB_C

Little Fuse, 15 Ampere

710000745

$6.77

LFB_C

Little Fuse, 20 Amperes

710000746

$6.77

LFB_C

Cover

710007491

$17.66

LFB_C

FUSE HOLDER DECAL - Call your local BRP dealership

710004273

Unavailable

LFB_J

Fuse, 25 AMP

710001046

$4.00

LFB_J

Fuse, 40 AMP

710001047

$11.52

LFB_J

Fuse, 40 AMP

710001047

$11.52

LFB_J

Fuse, 40 AMP

710001047

$11.52

LFB_J

Fuse 30 amp.

710001200

$7.37

LFB_J

Terminal

710001630

$1.83

LFB_J

Terminal Joint

710001905

$1.83

LFB_J

Terminal

710001906

$2.98

LFB_J

Seal Joint

710003133

$1.00

LFB_J

Seal Joint

710003134

$1.37

LFB_J

M Terminal

710003135

$2.75

LFB_R

Terminal

710002438

$1.00

LFB_R

F Terminal

710003125

$3.68

LFB_R

Seal Joint

710003132

$0.85

LFB_R

Seal Joint

710003133

$1.00

LFB_R

50 Amps Relay

710003143

$13.83

LPS

Plug

409013700

$4.42

LPS

Female Housing, 3 Circuits

409209600

$35.35

LPS

Wire Seal

515176621

$7.00

LPS

Female Terminal

710001340

$5.11

MSL

Terminal

710001223

$3.02

MSL

Terminal

710001224

$3.02

MSL

Cap

710001225

$7.27

MSL

Seal

710001233

$2.55

MSL

Seal Wire

710001332

$2.72

MSL

Housing

710001944

$15.00

MSR

Terminal

710001224

$3.02

MSR

Cap

710001225

$7.27

MSR

Seal

710001233

$2.55

MSR

Housing, Packard

710001929

$10.83

PIC1

Lock

710001222

$1.68

PIC1

Cap

710001225

$7.27

PIC1

Terminal

710001228

$2.72

PIC1

Terminal

710001229

$3.02

PIC1

Seal

710001233

$2.55

PIC1

Seal Wire

710001332

$2.72

PIC1

Housing

710001943

$18.00

PIC2

Cap

710001225

$7.27

PIC2

Housing

710001944

$15.00

PIC2

Holder | XMR

710002006

$3.68

PL

Clip Bracket Connector (edge)

409210100

$2.00

PL

Male Terminal

515176164

$6.43

PL

Wire Seal

515176621

$7.00

PL

Housing

710000568

$10.83

PL

Grommet

710002586

Unavailable

PL

Grommet

710002586

Unavailable

PL

Tie-Rap, 100mm

710002713

Unavailable

PL

Tie-Rap, 100mm

710002713

Unavailable

PL

Tie-Rap, 100mm

710002713

Unavailable

PL

Tie-Rap, 100mm

710002713

Unavailable

PL

PROTECTOR CAP - Call your local BRP dealership

710003324

Unavailable

PRS

Male Housing

278002378

$10.91

PRS

Male Lock, 3 Circuits

409207600

$3.02

PRS

Male Terminal

710001348

$11.14

RBHL

Wire Seal

278001013

$2.72

RBHL

Female Terminal

278001014

$2.72

RBHL

Female Housing, 3 Circuits

409209600

$35.35

RCF

Female Housing, 2 Circuits

278000217

$7.59

RCF

Male Terminal

409004300

$5.46

RCF

Wire Seal

710000504

$4.60

RCF

Connector Holder

710002033

$3.22

RFB

Wire Seal

278000218

$3.48

RFB

Wire Seal

278001065

$6.03

RFB

Little Fuse, 25 Ampere

278002389

$4.42

RFB

Female Terminal

278002578

$0.86

RFB

Seal Plug

278002880

$5.43

RFB

Relay, 30 AMP

515176774

$19.20

RFB

Little Fuse, 10 Amperes

710000744

$7.24

RFB

Little Fuse, 15 Ampere

710000745

$6.77

RFB

Female Terminal

710000890

$3.73

RFB

Female Terminal

710000918

$5.10

RFB

Relay

715900824

$16.22

RFB

Relay

715900824

$16.22

RFB

PLUG - Call your local BRP dealership

710002633

Unavailable

RFB

PLUG - Call your local BRP dealership

710002633

Unavailable

RFB

Tie-Rap

710002714

$2.98

RFB

Tie-Rap

710002714

$2.98

RFB

Tie-Rap

710002714

$2.98

RFB

Fusebox Ass'y

710005623

$46.12

RFB_C

Little Fuse, 25 Ampere

278002389

$4.42

RFB_C

Little Fuse, 5 Amperes

710000742

$7.24

RFB_C

Little Fuse, 10 Amperes

710000744

$7.24

RFB_C

Little Fuse, 15 Ampere

710000745

$6.77

RFB_C

Little Fuse, 20 Amperes

710000746

$6.77

RFB_C

Cover

710007491

$17.66

RFB_C

FUSE HOLDER DECAL - Call your local BRP dealership

710004274

Unavailable

RFB_J

Fuse, 40 AMP

710001047

$11.52

RFB_J

Fuse, 20 AMP

710001078

$1.83

RFB_J

Fuse, 20 AMP

710001078

$1.83

RFB_J

Fuse 30 amp.

710001200

$7.37

RFB_J

Terminal

710001630

$1.83

RFB_J

Terminal Joint

710001905

$1.83

RFB_J

Terminal

710001906

$2.98

RFB_J

Fuse, 60 AMP

710002054

$23.05

RFB_J

Seal Joint

710003133

$1.00

RFB_J

Seal Joint

710003134

$1.37

RFB_J

M Terminal

710003135

$2.75

RFB_R

Terminal

710002438

$1.00

RFB_R

F Terminal

710003125

$3.68

RFB_R

Seal Joint

710003132

$0.85

RFB_R

Seal Joint

710003133

$1.00

RFB_R

50 Amps Relay

710003143

$13.83

RLF1

Male Housing, 1 Circuit

278001012

$12.65

RLF1

Wire Seal

515176621

$7.00

RLF1

Female Terminal

710001340

$5.11

RLF2

Male Housing, 1 Circuit

278001012

$12.65

RLF2

Wire Seal

515176621

$7.00

RLF2

Female Terminal

710001340

$5.11

RRF1

Male Housing, 1 Circuit

278001012

$12.65

RRF1

Wire Seal

515176621

$7.00

RRF1

Female Terminal

710001340

$5.11

RRF2

Male Housing, 1 Circuit

278001012

$12.65

RRF2

Wire Seal

515176621

$7.00

RRF2

Female Terminal

710001340

$5.11

SAS

Wire Seal

710001118

$1.19

SAS

Plug

710001938

$2.29

SAS

Housing

710003731

$7.37

SAS

Female Terminal

710003862

$2.38

STS1

Female Terminal

710002398

$2.31

STS1

Female Terminal

710002399

$1.94

STS2

Female Terminal

710002398

$2.31

STS2

Female Terminal

710002399

$1.94

T1

Clipping Tie-Rap

710003840

$2.31

T10

Clipping Tie-Rap

710003840

$2.31

T2

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

T3

Clipping Tie-Rap

710003840

$2.31

T4

Clipping Tie-Rap

710003840

$2.31

T5

Clipping Tie-Rap

710003840

$2.31

T6

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

T7

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45

T8

Clipping Tie-Rap

710003840

$2.31

T9

Clipping Tie-Rap

710003840

$2.31

TANK

Open Barrel

278000992

$1.79

TANK

Heat Shrink

710002589

Unavailable

TAS

Lock

710001222

$1.68

TAS

Terminal

710001229

$3.02

TAS

Housing

710001232

$13.80

TAS

Seal

710001233

$2.55

TCM

Female Terminal

515175806

$0.81

TCM

Plug

515175812

$1.70

TCM

Female Housing

515176221

$14.94

TCM

Wire Seal

515176222

$14.97

TCM

Female Terminal Housing, 36 Circuits

515176223

$12.97

TCM

Terminal Support

515176224

$15.02

TCM

Female Terminal

710001131

$7.00

TCM

Tie-Rap

710002714

$2.98

TL1

Female Housing, 3 Circuits

409209600

$35.35

TL1

Wire Seal

515176621

$7.00

TL1

Female Terminal

710001340

$5.11

TL2

Female Housing, 3 Circuits

409209600

$35.35

TL2

Wire Seal

515176621

$7.00

TL2

Female Terminal

710001340

$5.11

VCM

Seal Wire

710001153

$1.79

VCM

Plug

710001258

$3.98

VCM

Module Protector VCM

710002381

$21.00

VCM

Tie-Rap

710002714

$2.98

VCM

Housing

710002768

$17.66

VCM

RH Connector Cover

710002772

$4.60

VCM

Terminal

710002773

$1.83

VCM_L

Wire Seal

710001159

$6.45

VCM_L

Terminal

710002775

$0.69

VCM_M

Wire Seal

278000999

$2.55

VCM_M

Female Terminal

710000837

$4.32

VR1

Female Housing, 3 Circuits

710000879

$21.42

VR1

Cap

710000882

$9.19

VR1

Seal

710001932

$3.15

VR1

Terminal

710001934

$4.51

VSS1

Wire Seal

710001118

$1.19

VSS1

Housing

710003729

$20.74

VSS1

Female Terminal

710003862

$2.38

VSS2

Wire Seal

710001118

$1.19

VSS2

Housing

710003729

$20.74

VSS2

Female Terminal

710003862

$2.38

VSS3

Wire Seal

710001118

$1.19

VSS3

Housing

710003729

$20.74

VSS3

Female Terminal

710003862

$2.38

YRS

Wire Seal

710001118

$1.19

YRS

Housing

710003730

$14.75

YRS

Female Terminal

710003862

$2.38
