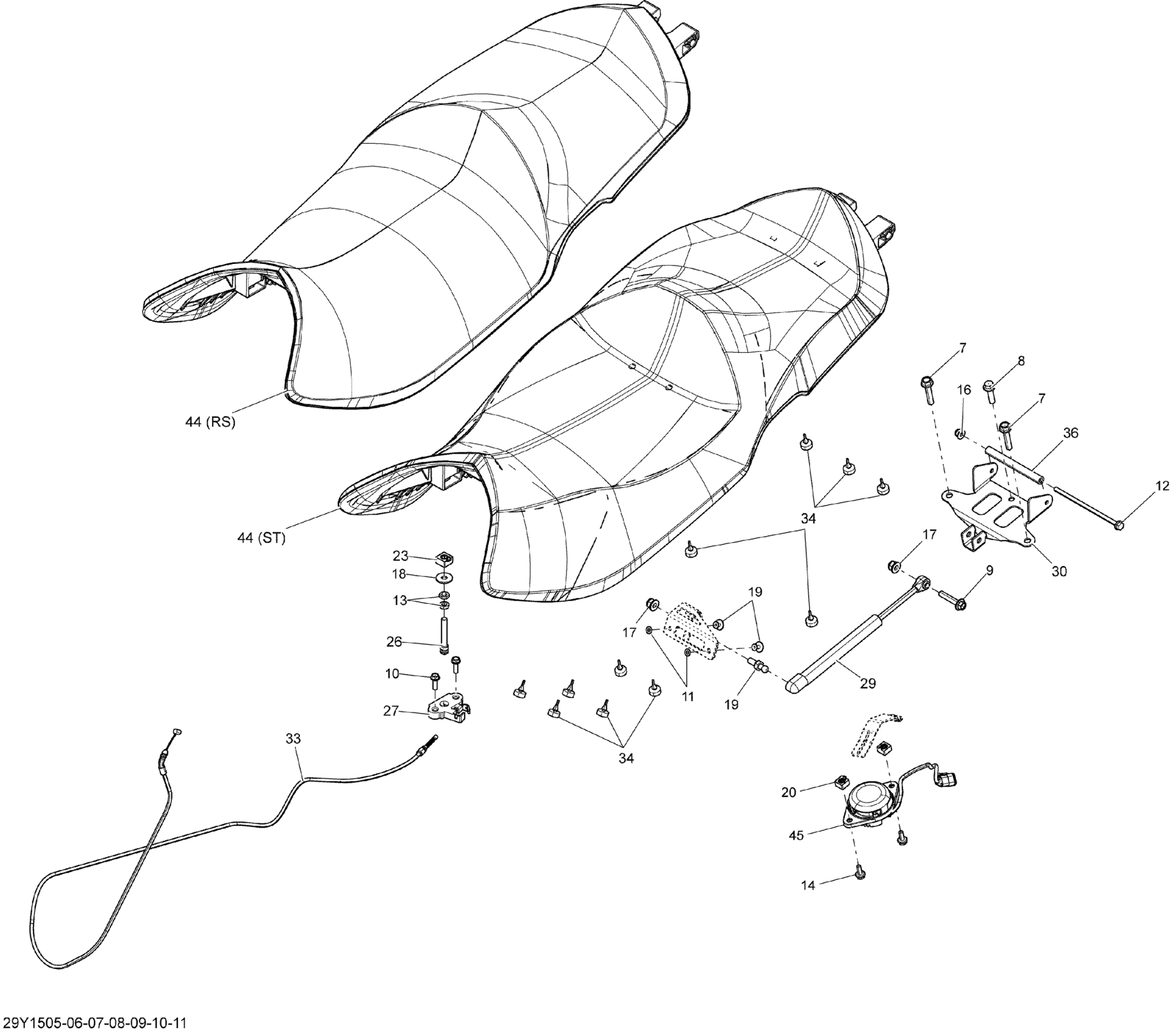

Can-Am Spyder RS SE5, 2015 Seat _29Y1509 Diagram

#

Description
Price

7

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

8

Hex. Flange Screw M8 X 30

207683034

$4.44

9

Hex. Flange Screw M8 X 40

207684044

$1.48

10

Hexagonal Head Screw

210262050

$2.11

11

Flat Washer | XT

211200035

$0.55

12

Hex. Flange Screw M6 X 130

230663084

$3.38

13

Hex. Jam Nut M8

232180600

$0.67

14

Hex. Flange Screw M6 X 16

207661644

$0.74

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

17

Hex. Flange Elastic Nut M8

233281414

$1.47

18

Flat Washer 8 mm

234082410

$1.47

19

Ball Head Stud

250300039

$7.51

20

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

23

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

24

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

26

Lug

705002223

$25.99

27

Latch

705007379

$28.99

29

Gaz Shock

708000479

$38.99

30

PIVOT PLATE - Call your local BRP dealership

708001770

Unavailable

33

Seat Cable

708001743

$53.99

34

Rubber Stopper

708000759

$4.19

36

SPACER BUSHING - Call your local BRP dealership

708000824

Unavailable

44

SEAT ASS'Y - Call your local BRP dealership

708001571

$549.99

45

Passenger Detection Switch

710008103

$76.99
