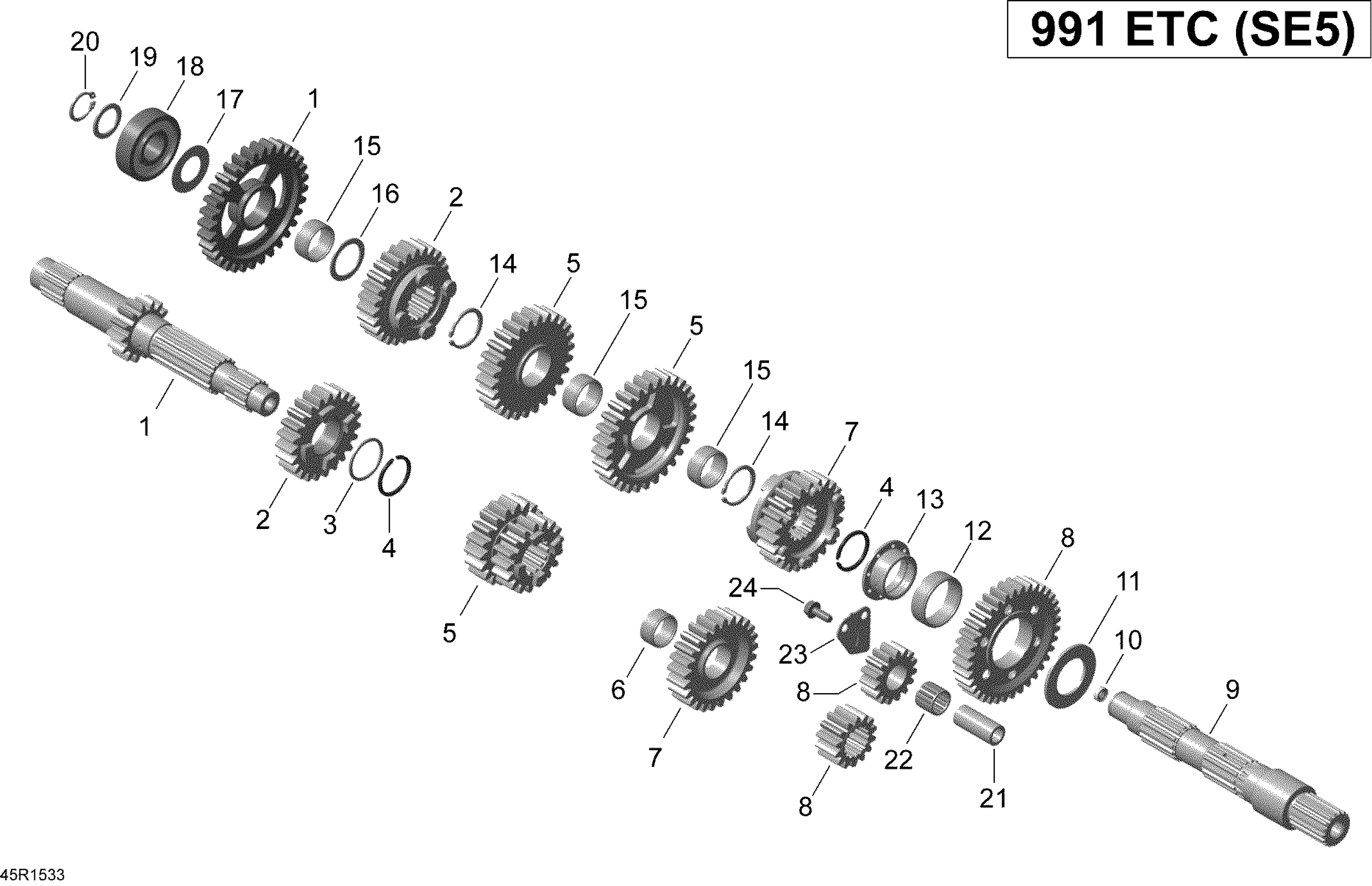

Can-Am Spyder RS SE5, 2015 Gear Box _45R1533 Diagram

#

Description
Price

1

GEAR SET 1RST SPEED - Call your local BRP dealership

420481035

Unavailable

2

Gear Set

420481045

$165.00

3

Thrust Washer

420627122

$3.00

4

Snap Ring - SE5

420245817

$7.00

5

Gear Set

420481040

$185.00

6

Needle Bearing

420232530

$26.89

7

GEAR SET - Call your local BRP dealership

420481050

Unavailable

8

Gear Set

420481055

$125.00

9

Main Shaft | Includes 9 to 10

420620618

$180.00

10

Oil Seal

420930500

$19.00

11

Thrust Ring

420626381

$17.00

12

Needle Bearing

420632197

$30.00

13

Bushing

420632530

$65.00

14

Retaining Ring

420845772

$6.98

15

Needle Bearing

420632070

$23.05

16

Washer

420427106

$8.00

17

SHIM - Call your local BRP dealership

420827110

Unavailable

18

BALL BEARING - Call your local BRP dealership

420832144

Unavailable

19

Thrust Washer

420227442

$10.00

20

Retaining Ring

420945665

$5.00

21

BOLT - Call your local BRP dealership

420229450

Unavailable

22

Needle Cage

420432034

$34.58

23

LOCKING TIE - Call your local BRP dealership

420224740

Unavailable

24

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable
