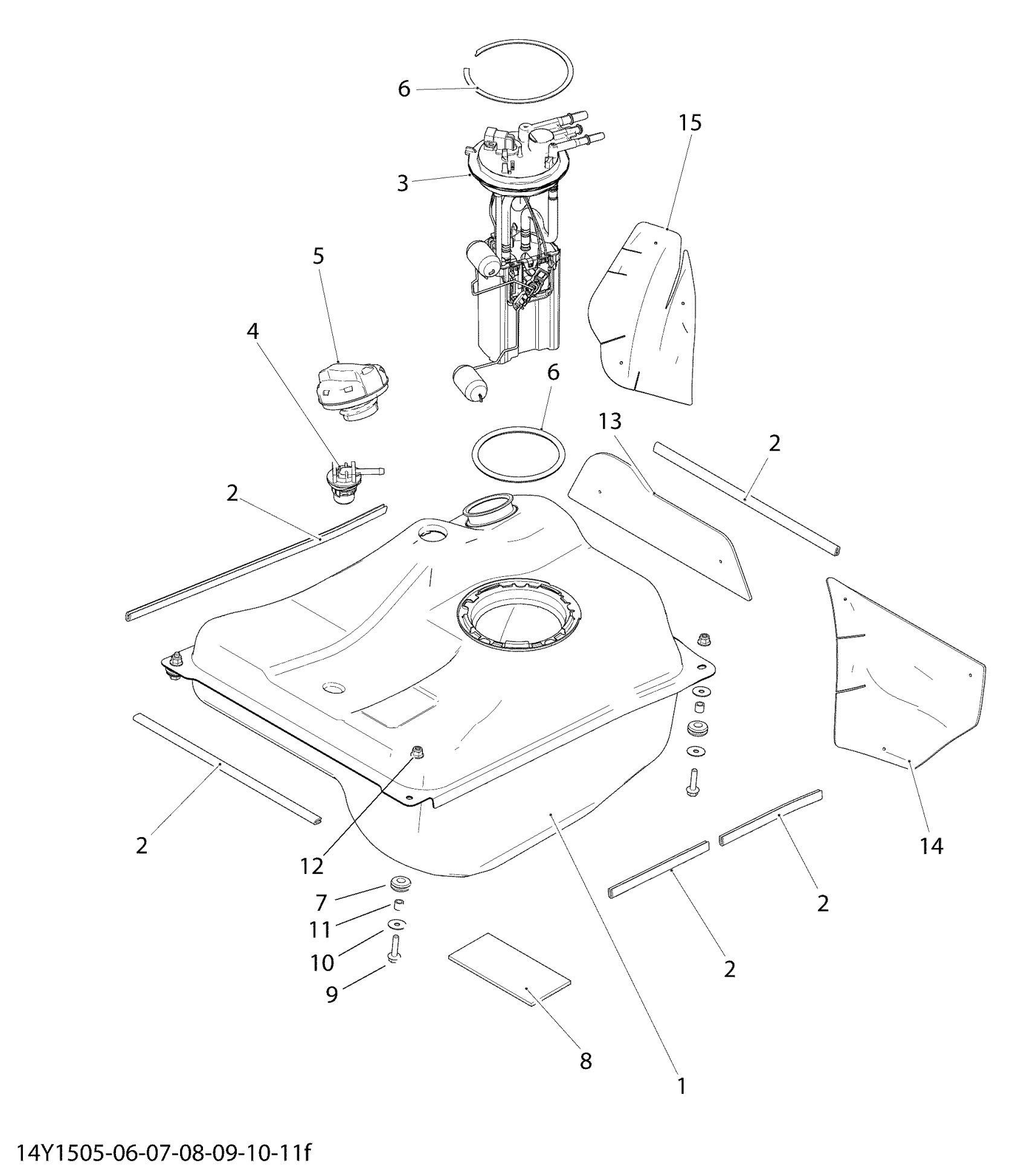

Can-Am Spyder RS SE5, 2015 Fuel Tank - Pump _14Y1505f Diagram

#

Description
Price

1

Fuel Tank

219800298

$599.99

2

Trim 1000Mm Long

219704354

$14.30

3

Pump Module

709000088

$625.49

4

Rollover Valve

709000413

$50.72

5

Fuel Cap

709000660

$15.49

6

Seal Kit

219800248

$38.99

7

Grommet

709000582

$4.25

8

Carpet

709000130

$14.49

9

Hex. Flange Screw M6 X 25

207662544

$0.53

10

Flat Washer

224060201

$1.12

11

Bushing

709000162

$12.64

12

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

13

Reflective Sheet

709000157

$20.99

14

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

15

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable
