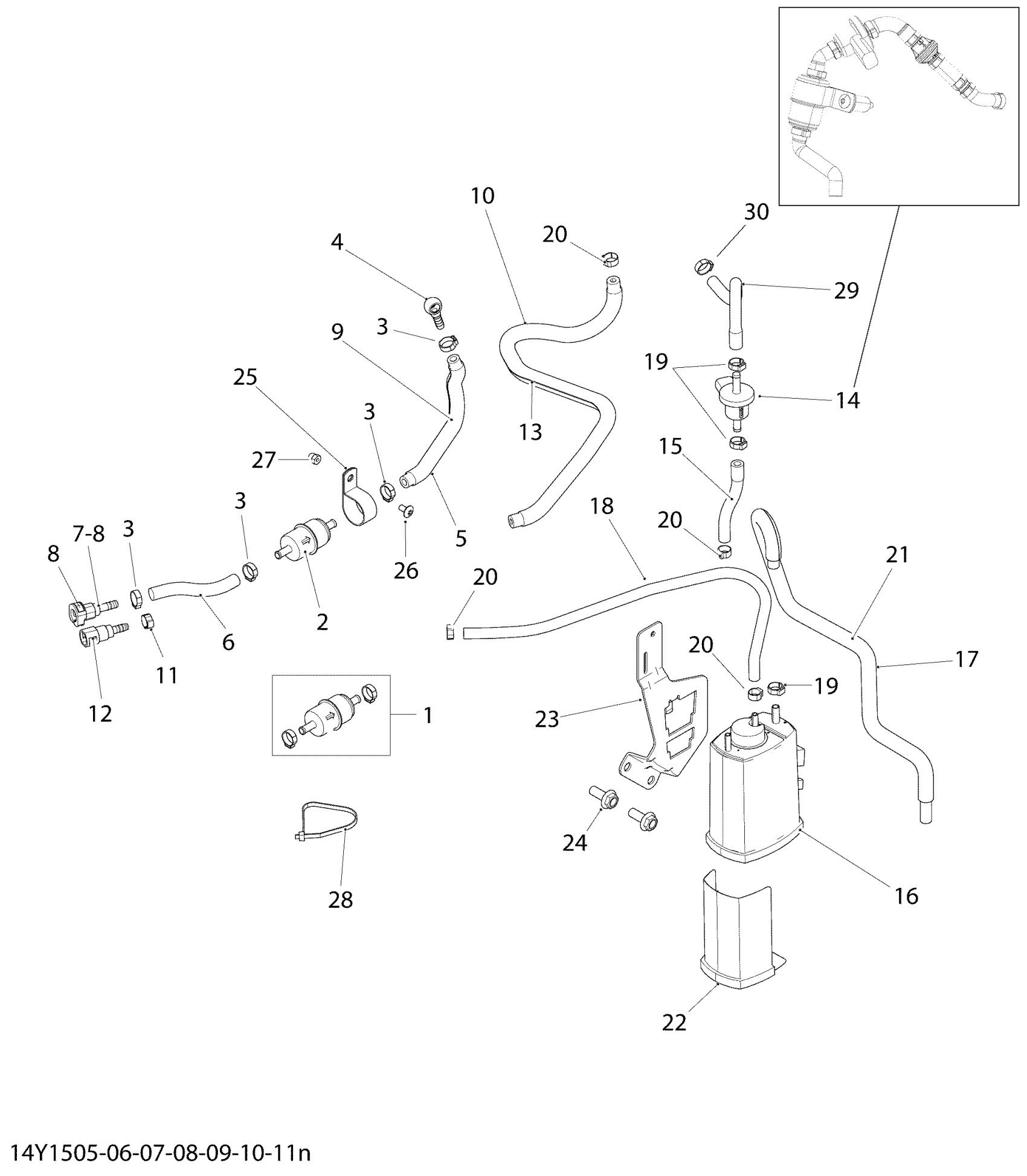

Can-Am Spyder RS SE5, 2015 EVAP System - NO CARB _14Y1505n Diagram

#

Description
Price

1

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

2

Fuel Filter

513034047

$35.99

3

Oetiker Clamp

293650125

$2.69

4

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

5

Fuel Line 7.9 mm, Meter

709000264

$15.99

6

Fuel Line 7.9 mm, Meter

709000265

$12.99

7

Female Quick Fitting Ass'y

709000125

$11.12

8

Locking Clip

513033135

$4.96

9

Tubing 16 Mm 1000Mm Long

219704408

$6.23

10

HOSE 6,35MM ID - 680MM - Call your local BRP dealership

709000445

Unavailable

11

Oetiker Clamp

293650046

$2.33

12

Quick Connect Pipe Fitting

293710192

$12.49

13

Tubing 16 Mm 1000Mm Long

219704408

$6.23

14

Purge Valve ass'y

709000793

$209.99

15

Hose

709000652

$17.49

16

Vapor Canister

709000090

$84.30

17

Formed Hose

709000277

$28.99

18

HOSE 6,35MM ID - 485MM - Call your local BRP dealership

709000653

Unavailable

19

Crimp Clamp, 15.3-706R

293650047

$2.64

20

Oetiker Gear Clamp

293650025

$2.46

21

Tubing

513033412

$4.15

22

Reflective Sheet

709000564

$11.99

23

FUEL FILTER SUPPORT - Call your local BRP dealership

709000384

Unavailable

24

Hex. Flange Screw M10 X 25

207602544

$1.33

25

Open Clamp

513033047

$4.73

26

Torx Truss Screw M6 X 12

250000767

$1.66

27

Domed Nut M6

232361493

$1.77

28

Tie-Rap 180 mm

414115200

$0.09

28

Tie Wrap 368 mm

293750008

$0.85

29

FORMED HOSE - Call your local BRP dealership | NOCARB

709000649

Unavailable

30

Spring Clamp

414415200

$0.81
