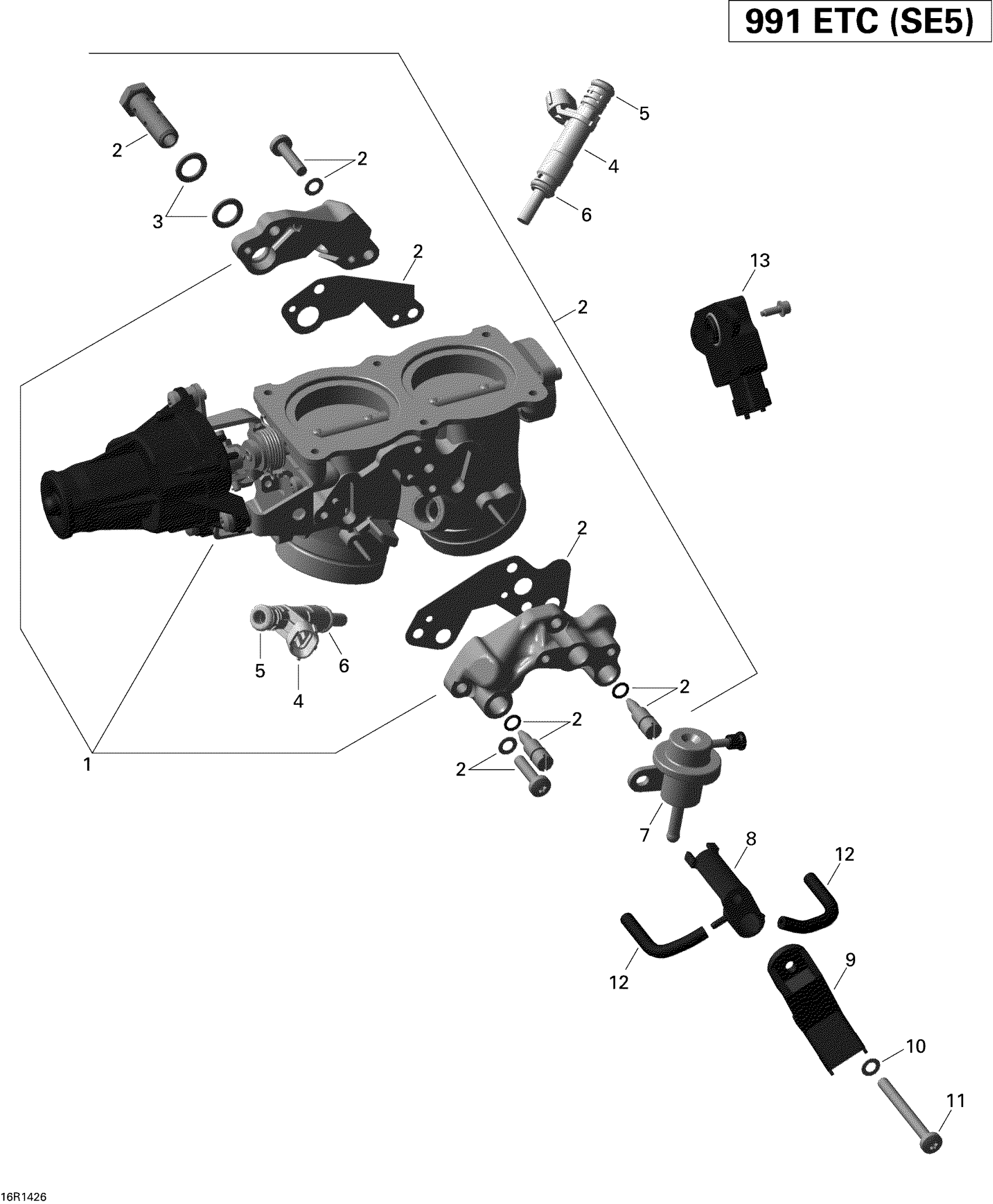

Can-Am Spyder RS SE5, 2014 Throttle Body Diagram

#

Description

Price

1

Corps Papillon *Throttle Body | Includes 1 to 13

420686292

$924.49

2

Venturi Repair Device Kit | Includes 2 to 3

420281243

$169.49

3

Aluminum Sealing Ring

420250016

$5.39

4

Fuel Injector Ass'y | Includes 4 to 6

420874488

$119.99

5

O-Ring

420631220

$14.28

6

O-Ring

420431890

$7.49

7

Pressure Regulator

420274105

$105.99

8

Adapter

420460290

$20.49

9

Pressure Sensor

270600040

$199.99

10

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

11

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

Unavailable

12

Hose, Sensor

420960118

$16.87

13

Potentiometer

420274095

$110.99
