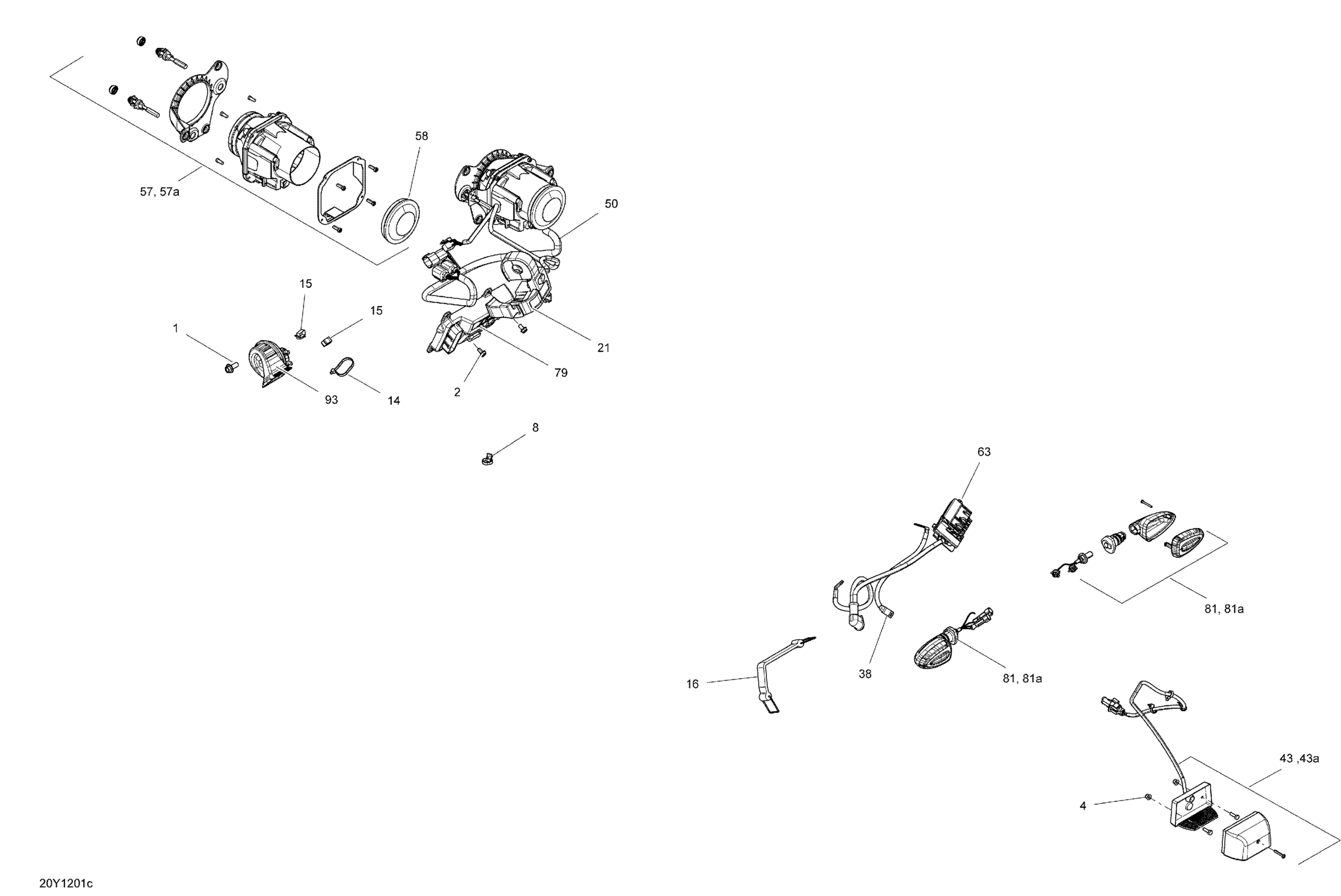

Can-Am Spyder RS SE5, 2012 Electrical System Lighting North America (SE5) Diagram

#

Description
Price

1

Hex. Flange Screw M8 X 20

207682044

$0.92

2

Hex. Flange Screw M6 X 12

210261250

$1.56

4

Elastic Flange Nut M5

233251494

$1.74

8

Tie-Rap 173 mm

293750009

$0.85

14

Tie-Rap 180 mm

414115200

$0.09

15

Clip

414227300

$1.45

16

Battery Strap

515176044

$14.27

21

SE5 Switch Housing | Semi-Automatic

515176198

$190.00

38

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.05

43

Licence Light | Includes 24 to 25

710001994

$75.00

50

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

57

LH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004952

Unavailable

57

RH BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710004951

Unavailable

58

Cap

219400070

$16.89

63

POSITIVE CABLE (BAT/SOL/FUS) - Call your local BRP dealership | SE5 Electronic, A29B, A29C, A29D, A29E, A29F, A29G

710002079

Unavailable

79

TCM MODULE - Call your local BRP dealership | Semi-Automatic

710001946

Unavailable

81

LH Rear Turn Signal Ass'y

710001290

$69.00

81

RH Rear Turn Signal Ass'y

710001337

$69.00

93

HORN - Call your local BRP dealership

710004229

$29.00

43a

Bulb 12V 10W | Not Shown

415129261

$2.00

57a

Halogen Bulb

219400069

$20.00

81a

Bulb 12V/10W, Amber

219800039

Unavailable
