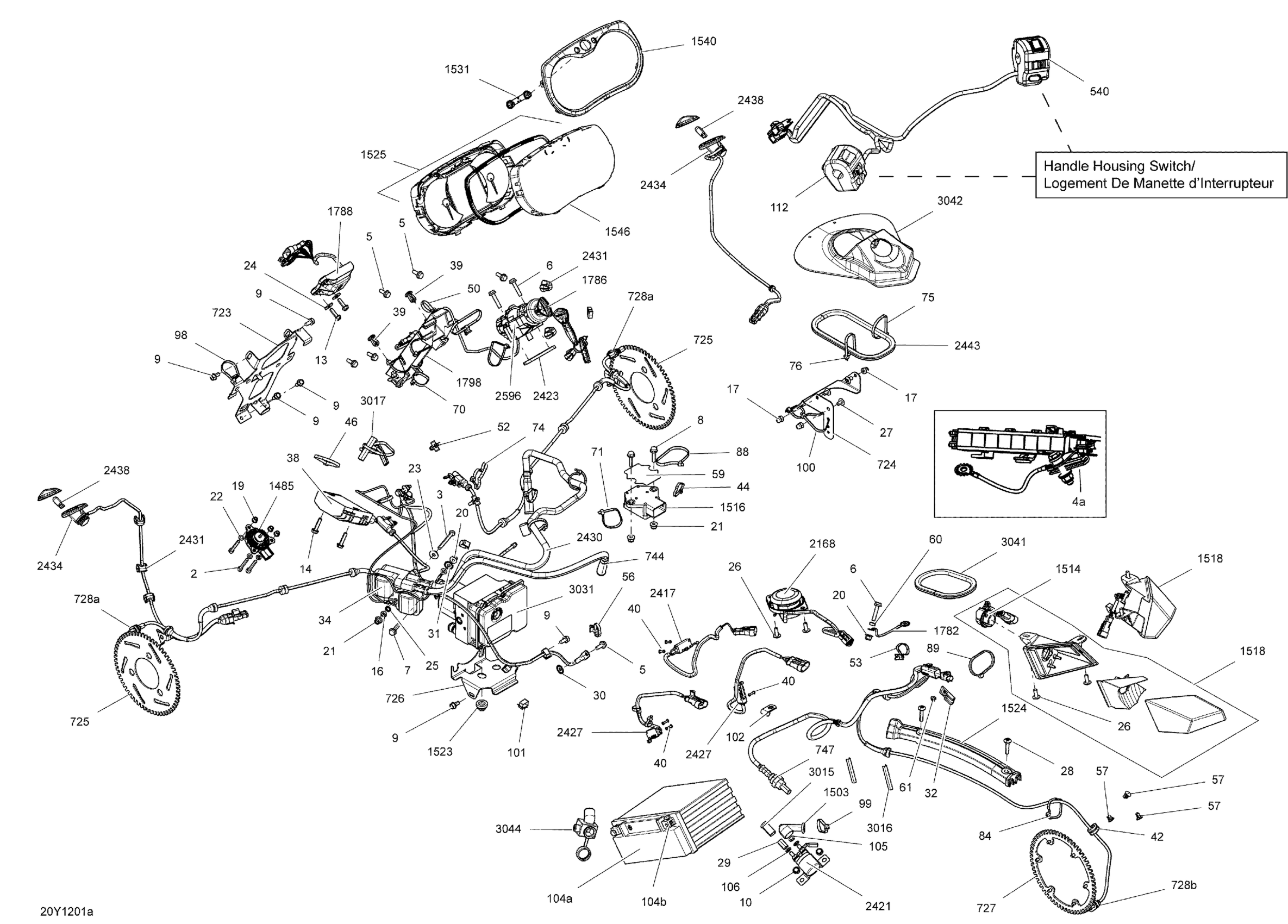

Can-Am Spyder RS SE5, 2012 Electrical System Commons Parts Diagram

#

Description
Price

2

Socket Head Screw M5 X 35

205053588

$1.56

3

Hex. Screw M6 X 55

207065544

$1.70

4a

Trim 1000Mm Long

219704354

$14.74

5

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

5

Hex. Flange Screw M6 X 16

207661644

$0.61

6

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

6

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

7

Hex. Flange Screw M6 X 20

207662044

$1.66

8

Hex. Flange Screw M6 X 25

207662544

$0.53

9

Hex. Flange Screw M6 X 12

210261250

$1.56

10

Hex. Flange Screw M6 X 12

210261250

$1.56

13

THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership

250000413

Unavailable

14

Hex. Flange Forming Screw M6 X 25

210262550

$1.64

16

Hex. Nut M6

232061414

$0.44

17

Domed Nut M6

232361493

$1.77

19

Hex. Flange Elastic Nut M5

233251414

$1.66

20

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

21

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

22

Flat Washer M5

234051410

$0.44

23

Flat Washer 6 mm

234062410

$0.64

24

Flat Washer 6 mm

234062410

$0.64

25

External Serrated Lock Washer 6 mm

234461608

$0.92

26

Torx Truss Screw M6 X 16

250000721

$1.39

26

Torx Screw M6 X 16

250000755

$0.72

27

Torx Truss Screw M6 X 10

250000349

$7.31

28

Torx Truss Screw M6 X 30

250000843

$1.74

29

HEX. COUPLING NUT M6 X 1.0 X 18 - Call your local BRP dealership

250100117

Unavailable

30

Lock Washer Serrated M6

250200041

$0.92

31

Lock Washer Serrated M6

250200041

$0.92

32

Clip

270000141

$8.33

34

Ignition Coil

278001546

$129.32

38

REGULATOR KIT - Call your local BRP dealership

219800252

Unavailable

39

Tuflok Plastic Rivet

293150230

$1.21

40

Pop Rivet

293150150

$2.31

42

Grommet

293720084

$6.00

44

Tie Wrap 368 mm

293750008

$0.85

46

Tie-Rap 180 mm

414115200

$0.09

50

Tie-Rap 173 mm

293750009

$0.85

52

Tie-Rap 173 mm

293750009

$0.85

53

Tie-Rap 173 mm

293750009

$0.85

56

Tie-Rap 173 mm

293750009

$0.85

57

Tie Rap Mount

293750044

$2.00

59

RUBBER BUMPER - Call your local BRP dealership

293830127

Unavailable

60

BUSHING - Call your local BRP dealership

293900054

Unavailable

61

Pop Rivet 3/16"

390402400

$0.25

70

Tie-Rap 180 mm

414115200

$0.09

71

Tie-Rap 180 mm

414115200

$0.09

74

Tie-Rap 180 mm

414115200

$0.09

75

Tie Wrap 368 mm

293750008

$0.85

76

Tie-Rap 180 mm

414115200

$0.09

84

Tie-Rap 180 mm

414115200

$0.09

88

Tie-Rap 180 mm

414115200

$0.09

89

Tie-Rap 180 mm

414115200

$0.09

98

Tie-Rap 180 mm

414115200

$0.09

99

Tie-Rap 180 mm

414115200

$0.09

100

Tie Wrap 368 mm

293750008

$0.85

101

Clip

414227300

$1.45

102

Bracket

415052400

$4.12

105

Hex. Nut M6

232061600

$0.91

106

Lock Washer Helical M6

234161601

$0.92

112

Housing Switch | Includes 19 to 21

515176197

$245.00

540

HOUSING SWITCH - Call your local BRP dealership

710001488

Unavailable

723

MODULE SUPPORT - Call your local BRP dealership

705202002

Unavailable

724

HOUSING SUPPORT - Call your local BRP dealership

705202289

Unavailable

725

TONE WHEEL - Call your local BRP dealership

705600436

Unavailable

726

MODULE BRACKET - Call your local BRP dealership

705600602

Unavailable

727

TONE WHEEL - Call your local BRP dealership

705600573

Unavailable

744

Cable Ass'y

707000399

$72.00

747

Oxygen Sensor

707600557

$165.00

1485

Steering Position Sensor

709400363

$610.00

1503

POSITIVE CABLE - Call your local BRP dealership

710000794

Unavailable

1514

Bulb

520000758

$7.49

1516

YAW ANGLE SENSOR - Call your local BRP dealership

710002051

Unavailable

1518

LH Tail Light Ass'y

515176850

$61.99

1518

RH Tail Light Ass'y

515176849

$61.99

1523

STOPPER - Call your local BRP dealership

710000938

Unavailable

1524

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

1525

MULTIFUNCTION SPEEDOMETER - Call your local BRP dealership

710002755

$390.00

1531

Speedometer Button | XTP

415129355

$13.94

1540

Gauge Ring

415129348

$11.71

1546

Lens | XTP

415129349

$23.05

1782

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

1786

Key Set with Cover (1 key)

710002969

$26.00

1788

Ignition Switch & DESS Module Kit | Includes 9 to 11, 15a to 15d

219800070

Unavailable

1798

Connector Support

710001328

Unavailable

2168

Passenger Detection Switch

710008103

$72.28

2417

Brake Light Switch Ass'y

710001357

$46.00

2421

Starter Relay

710007777

$46.89

2423

Switch Support

710001365

$21.00

2427

Brake Pressure Switch Ass'y

710001379

$41.51

2430

Cable Ass'y

707000518

$66.00

2431

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

2434

Position Light | Includes 22 to 23

710001478

$59.00

2438

BULB 5W. - Call your local BRP dealership

410922994

Unavailable

2443

Trim 1000Mm Long

219704354

$14.74

2596

Ignition Switch & DESS Module Kit | Includes 9 to 11, 15a to 15d

219800070

Unavailable

3015

BOOT - Call your local BRP dealership

710001610

Unavailable

3016

Trim 1000Mm Long

219704354

$14.74

3017

Trim 1000Mm Long

219704354

$14.74

3031

Calibration Module

219800098

$1,530.00

3041

Trim 1000Mm Long

219704354

$14.74

3042

MOULDING - Call your local BRP dealership

710002074

Unavailable

3044

BATTERY BOOT - Call your local BRP dealership

710002261

Unavailable

104a

Battery, 12 Volts, 21 Amperes

410922962

$160.52

104b

Battery Bolt Kit

250000282

$2.95

728a

SPEED SENSOR - Call your local BRP dealership | Includes 25a to 25b

706200495

Unavailable

728b

Speed Sensor

706202361

$165.00
