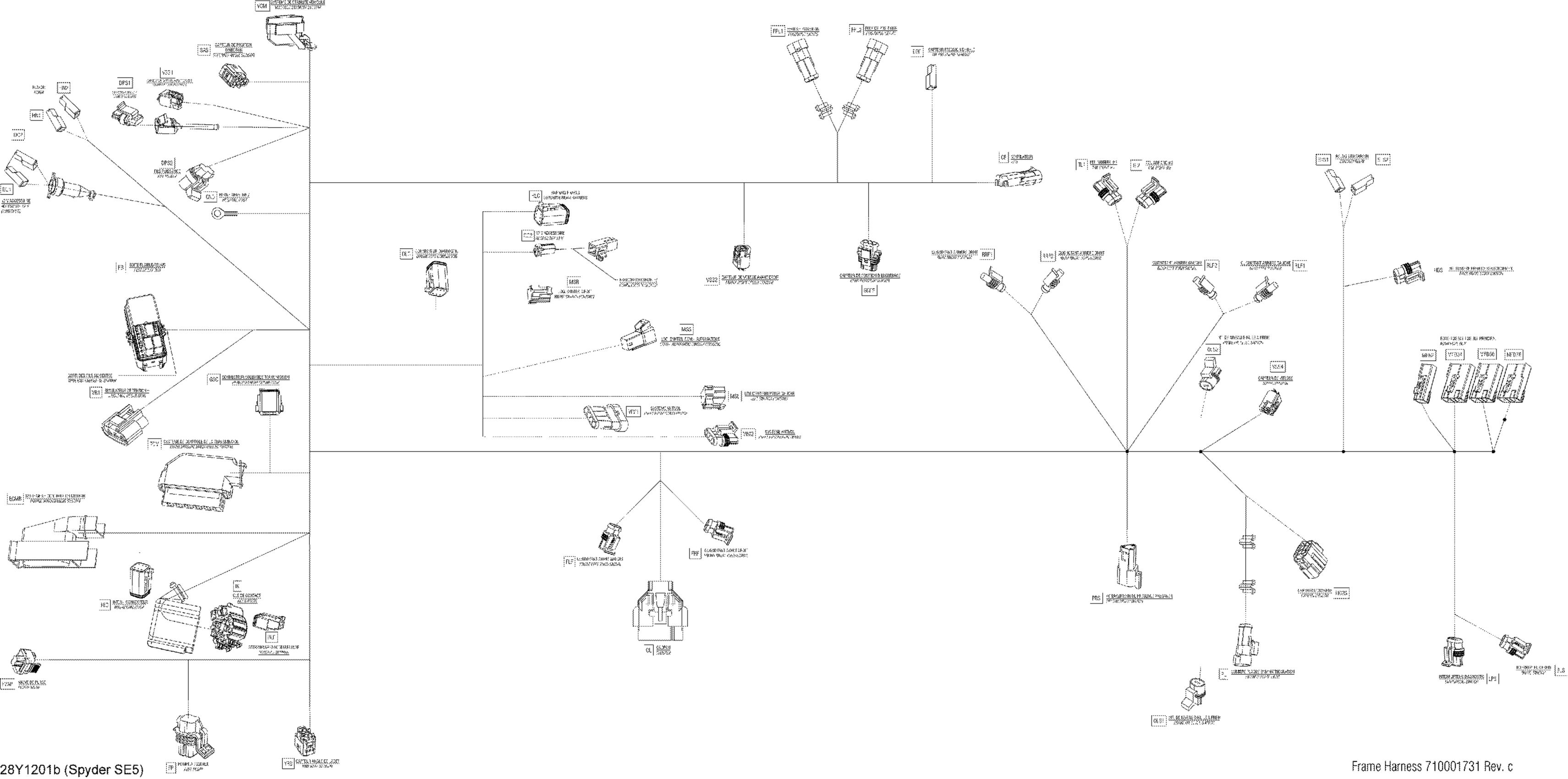

Can-Am Spyder RS SE5, 2012 Electrical Harness SE5 Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 to YRS

710001731

Unavailable

BLP

Female Terminal

278000632

$1.69

BLP

Female Connector, 2 Circuits

409207300

$9.60

BLP

FEMALE LOCK, 2 CIRCUITS - Call your local BRP dealership

409207100

Unavailable

BLS

Female Housing, 2 Circuits

409209500

$13.48

BLS

Female Terminal

710001340

$5.11

BLS

Wire Seal

515176621

$7.00

CF

Male Terminal

409004300

$5.46

CF

Female Housing, 2 Circuits

278000217

$7.59

CF

Wire Seal

710000504

$4.60

CL

Plug

515175812

$1.70

CL

Female Housing, 24 Circuits

515175801

$9.00

CL

Retainer Block

515175802

$10.66

CL

Wire Seal

515175803

$2.41

CL

BLOCK - Call your local BRP dealership

515175804

Unavailable

CL

Female Terminal

515175806

$0.81

CL

Female Terminal

710001131

$7.00

D2

Diode

409012700

$10.83

DC1

Female Terminal

409010100

$5.46

DC1

Female Terminal Housing, 1 Circuit

409010400

$7.48

DC2

Female Terminal

409010100

$5.46

DC2

Female Terminal Housing, 1 Circuit

409010400

$7.48

DC2

Tie Wrap 142 mm

293750002

$0.88

DC2

CAP - Call your local BRP dealership

710000670

Unavailable

DC3

Female Terminal

515175231

$4.12

DC3

Female Housing, 2 Circuits

515175658

$15.35

DC3

Male Housing, 2 Circuits

710000667

$7.48

DLC

Male Housing, 6 Circuits

515175673

$13.05

DLC

Male Wedge, 6 Circuits

515175678

$5.11

DLC

Female Terminal

278001665

$3.73

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.28

DPS1

Wire Seal

710001163

$5.10

DPS1

Female Terminal

710001164

$5.92

DPS1

Cap

710001114

$16.89

DPS1

Cap

710001225

$7.27

DPS2

Female Terminal

710001160

$5.14

DPS2

HOUSING - Call your local BRP dealership

710001315

Unavailable

DPS2

SEAL - Call your local BRP dealership

710001935

Unavailable

ECMB

Tie Wrap 142 mm

293750002

$0.88

ECMB

FEMALE TERMINAL - Call your local BRP dealership

278001750

Unavailable

ECMB

MALE HOUSING, 41 CIRCUITS - Call your local BRP dealership

278001751

Unavailable

ECMB

SEAL - Call your local BRP dealership

515175886

Unavailable

ECMB

Latch

515175883

$7.48

ECMB

LOCK - Call your local BRP dealership

515175884

Unavailable

ECMB

COVER - Call your local BRP dealership

515175885

Unavailable

EOP

Female Terminal

409010100

$5.46

EOP

Female Terminal Housing, 1 Circuit

409010400

$7.48

EVAP

Housing

710001136

$10.47

EVAP

Wire Seal

710001135

$4.60

EVAP

Female Terminal

710001137

$3.73

FB

Wire Seal

278000999

$2.55

FB

Seal

415128501

$1.51

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 5 Amperes

710000742

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 10 Amperes

710000744

$7.24

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Little Fuse, 15 Ampere

710000745

$6.77

FB

Fuse Box Base Ass´y

415129856

$41.57

FB

Fuse Puller

710000781

$8.29

FB

Female Terminal

710000836

$5.46

FB

Cap

710000840

$5.49

FB

Little Fuse, 3 AMP

710001008

$2.98

FB

Fuse Cover

710001026

$17.52

FB

FUSE DECAL - Call your local BRP dealership

710000968

Unavailable

FB

Foam

278002172

$5.49

FB

Relay, 30 AMP

515176774

$19.20

FB

Relay, 30 AMP

515176774

$19.20

FB

Relay, 30 AMP

515176774

$19.20

FB

Relay, 30 AMP

515176774

$19.20

FLF

Female Housing, 2 Circuits

409209500

$13.48

FLF

Female Terminal

710001340

$5.11

FLF

Wire Seal

515176621

$7.00

FP

Seal

278001482

$2.55

FP

Housing

710001132

$9.60

FP

Lock

710001133

$4.12

FP

Female Terminal

710001134

$6.03

FPL1

Male Terminal Housing, 2 Circuits

409209400

$14.97

FPL1

Tie-Rap 180 mm

414115200

$0.09

FPL1

Tie-Rap 180 mm

414115200

$0.09

FPL1

Male Terminal

515176164

$6.43

FPL1

Wire Seal

515176621

$7.00

FPL1

GROMMET - Call your local BRP dealership

710001949

Unavailable

FPL2

Male Terminal Housing, 2 Circuits

409209400

$14.97

FPL2

Tie-Rap 180 mm

414115200

$0.09

FPL2

Tie-Rap 180 mm

414115200

$0.09

FPL2

Male Terminal

515176164

$6.43

FPL2

Wire Seal

515176621

$7.00

FPL2

GROMMET - Call your local BRP dealership

710001949

Unavailable

FRF

Female Housing, 2 Circuits

409209500

$13.48

FRF

Female Terminal

710001340

$5.11

FRF

Wire Seal

515176621

$7.00

GBPS

Male Housing, 3 Circuits

278000997

$15.57

GBPS

Seal

415128501

$1.51

GBPS

FEMALE TERMINAL - Call your local BRP dealership

278001210

Unavailable

GND

Terminal

710000913

$5.46

GSC

Female Terminal

278000632

$1.69

GSC

MALE HOUSING, 8 CIRCUITS - Call your local BRP dealership

278001743

Unavailable

GSC

SECONDARY LOCK, 8 CIRCUITS - Call your local BRP dealership

278001744

Unavailable

HBS

Female Housing, 3 Circuits

409209600

$35.35

HBS

Plug

409013700

$4.42

HBS

Female Terminal

710001340

$5.11

HBS

Wire Seal

515176621

$7.00

HIC

Male Housing, 6 Circuits

515175673

$13.05

HIC

Male Wedge, 6 Circuits

515175678

$5.11

HIC

Female Terminal

278001665

$3.73

HLC

Male Housing, 6 Circuits

515175673

$13.05

HLC

Male Wedge, 6 Circuits

515175678

$5.11

HLC

Female Terminal

278001665

$3.73

HN1

Female Terminal

409010100

$5.46

HN1

Female Terminal Housing, 1 Circuit

409010400

$7.48

HN2

Female Terminal

409010100

$5.46

HN2

Female Terminal Housing, 1 Circuit

409010400

$7.48

HO2S

FEMALE TERMINAL - Call your local BRP dealership

409004800

Unavailable

HO2S

Wire Seal

409005400

Unavailable

HO2S

Housing

710001138

Unavailable

HO2S

Lock

710001139

Unavailable

HO2S

Female Terminal

710001140

Unavailable

IK

Tie-Rap 180 mm

414115200

$0.09

IK

HOUSING - Call your local BRP dealership

710001128

Unavailable

IK

FEMALE TERMINAL - Call your local BRP dealership

710001130

Unavailable

IK

CAP - Call your local BRP dealership

710001338

Unavailable

LPS

Female Housing, 3 Circuits

409209600

$35.35

LPS

Plug

409013700

$4.42

LPS

Female Terminal

710001340

$5.11

LPS

Wire Seal

515176621

$7.00

MFB2

MALE TERMINAL - Call your local BRP dealership

710001050

Unavailable

MFB2

FUSE HOLDER - Call your local BRP dealership

710001053

Unavailable

MFB34

MALE TERMINAL - Call your local BRP dealership

710001051

Unavailable

MFB34

FUSE HOLDER - Call your local BRP dealership

710001057

Unavailable

MFB56

MALE TERMINAL - Call your local BRP dealership

710001051

Unavailable

MFB56

FUSE HOLDER - Call your local BRP dealership

710001054

Unavailable

MFB78

MALE TERMINAL - Call your local BRP dealership

710001050

Unavailable

MFB78

FUSE HOLDER - Call your local BRP dealership

710001055

Unavailable

MSL

FEMALE TERMINAL - Call your local BRP dealership

515175808

Unavailable

MSL

Female Terminal

515175941

$2.48

MSL

Housing

710001126

Unavailable

MSL

Lock

710001127

Unavailable

MSL

Lock

710001127

Unavailable

MSR

Female Terminal

515175941

$2.48

MSR

HOUSING - Call your local BRP dealership

710001124

Unavailable

MSR

LOCK - Call your local BRP dealership

710001125

Unavailable

MSR

LOCK - Call your local BRP dealership

710001125

Unavailable

MSS

HOUSING - Call your local BRP dealership

710001155

Unavailable

MSS

LOCK - Call your local BRP dealership

710001156

Unavailable

MSS

MALE TERMINAL - Call your local BRP dealership

710001420

Unavailable

OLS1

Male Connector, 2 Circuits

278001113

$12.65

OLS1

Female Terminal

710001119

$4.32

OLS2

Male Connector, 2 Circuits

278001113

$12.65

OLS2

Female Terminal

710001119

$4.32

PL

Male Terminal Housing, 2 Circuits

409209400

$14.97

PL

Tie-Rap 180 mm

414115200

$0.09

PL

Male Terminal

515176164

$6.43

PL

Wire Seal

515176621

$7.00

PL

GROMMET - Call your local BRP dealership

710001950

Unavailable

PL

GROMMET - Call your local BRP dealership

710001950

Unavailable

PL

Connector Holder

710002033

$3.22

PRS

Male Lock, 3 Circuits

409207600

$3.02

PRS

Male Housing

515175666

$13.05

PRS

Male Terminal

710001348

$11.14

RLF1

Male Housing, 1 Circuit

278001012

$12.65

RLF1

Female Terminal

710001340

$5.11

RLF1

Wire Seal

515176621

$7.00

RLF2

Male Housing, 1 Circuit

278001012

$12.65

RLF2

Female Terminal

710001340

$5.11

RLF2

Wire Seal

515176621

$7.00

RRF1

Male Housing, 1 Circuit

278001012

$12.65

RRF1

Female Terminal

710001340

$5.11

RRF1

Wire Seal

515176621

$7.00

RRF2

Male Housing, 1 Circuit

278001012

$12.65

RRF2

Female Terminal

710001340

$5.11

RRF2

Wire Seal

515176621

$7.00

SAS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

SAS

Wire Seal

710001118

$1.19

SAS

Housing

710003730

$14.75

STS1

Female Terminal

409010100

$5.46

STS1

Female Terminal Housing, 1 Circuit

409010400

$7.48

STS2

Female Terminal

409010100

$5.46

STS2

Female Terminal Housing, 1 Circuit

409010400

$7.48

TCM

Tie Wrap 142 mm

293750002

$0.88

TCM

Plug

515175812

$1.70

TCM

Female Terminal

515175806

$0.81

TCM

Female Housing

515176221

$14.94

TCM

Wire Seal

515176222

$14.97

TCM

Female Terminal Housing, 36 Circuits

515176223

$12.97

TCM

Terminal Support

515176224

$15.02

TCM

Female Terminal

710001131

$7.00

TL1

Female Housing, 3 Circuits

409209600

$35.35

TL1

Female Terminal

710001340

$5.11

TL1

Wire Seal

515176621

$7.00

TL2

Female Housing, 3 Circuits

409209600

$35.35

TL2

Female Terminal

710001340

$5.11

TL2

Wire Seal

515176621

$7.00

VCM

Tie Wrap 142 mm

293750002

$0.88

VCM

Molex Lock, 38 Pins

710001871

Unavailable

VCM

MOLEX HOUSING, 38 PINS - Call your local BRP dealership

710001870

Unavailable

VCM

Terminal

710001869

$2.75

VCM

TERMINAL - Call your local BRP dealership

710001867

Unavailable

VCM

PLUG - Call your local BRP dealership

710001884

Unavailable

VCM

Seal

710001880

Unavailable

VCM

PLUG - Call your local BRP dealership

710001879

Unavailable

VCM

MOLEX CONNECTOR COVER - Call your local BRP dealership

710002032

Unavailable

VIM1

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

VIM1

Plug

409013700

$4.42

VIM1

Male Terminal

515176164

$6.43

VIM1

Wire Seal

515176621

$7.00

VIM2

Female Housing, 4 Circuits

409209700

$12.97

VIM2

Female Terminal

710001340

$5.11

VIM2

Wire Seal

515176621

$7.00

VR1

Female Terminal

710000877

$6.32

VR1

Female Housing, 3 Circuits

710000879

$21.42

VR1

Seal

710000881

$14.27

VR1

Cap

710000882

$9.19

VSS1

Housing

710003729

$20.74

VSS1

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS1

Wire Seal

710001118

$1.19

VSS2

Housing

710003729

$20.74

VSS2

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS2

Wire Seal

710001118

$1.19

VSS4

Housing

710003729

$20.74

VSS4

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

VSS4

Wire Seal

710001118

$1.19

YRS

FEMALE TERMINAL - Call your local BRP dealership

710001117

Unavailable

YRS

Wire Seal

710001118

$1.19

YRS

Housing

710003730

$14.75
