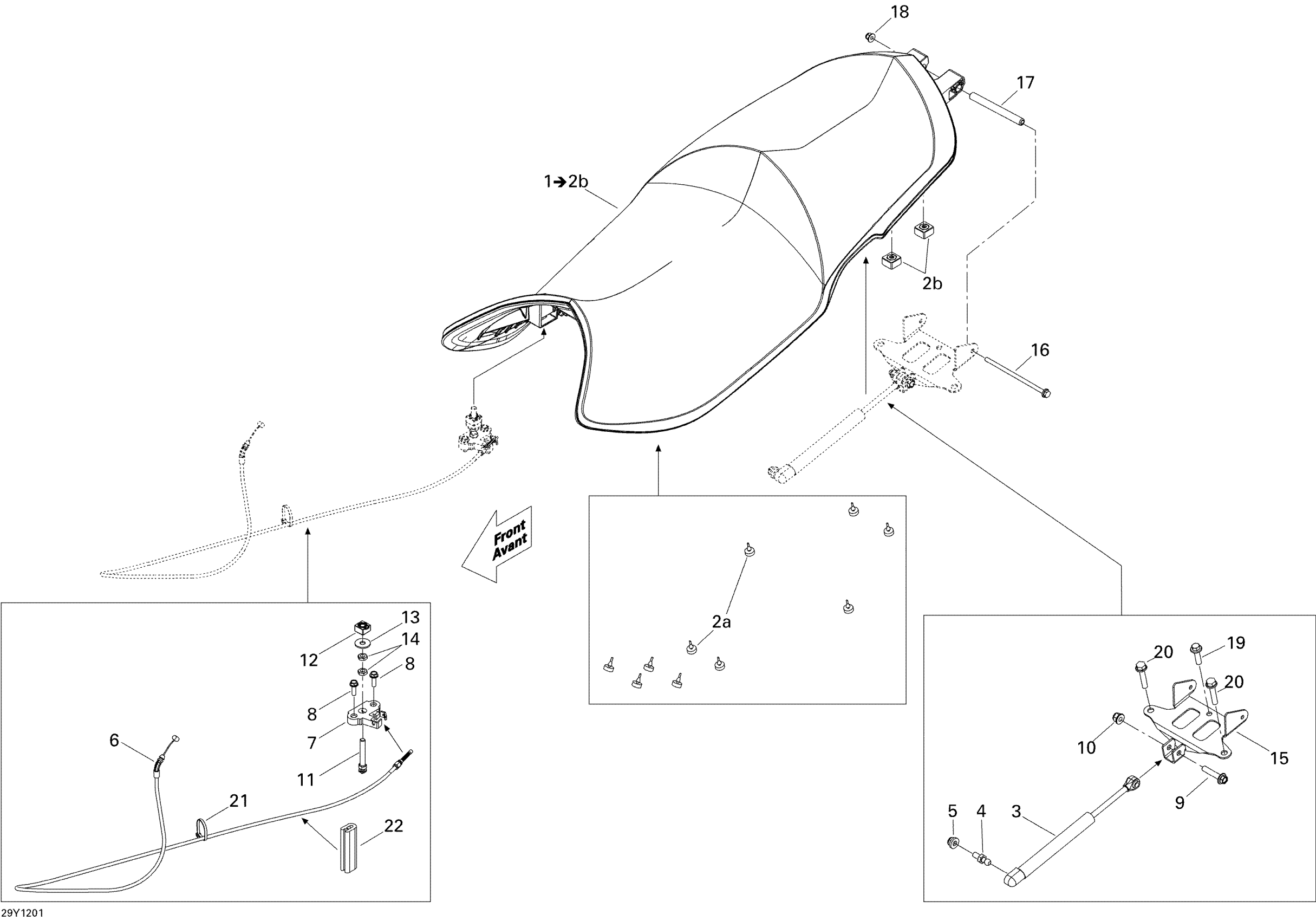

Can-Am Spyder RS SE5, 2012 09- Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership

708001571

$549.99

1

Seat Ass'y

708001531

$549.99

2a

Rubber Stopper

708000759

$4.19

2b

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

3

Gaz Shock

708000479

$38.99

4

Ball Head Stud

250300039

$7.51

5

Hex. Flange Elastic Nut M8

233281414

$1.47

6

Seat Cable

708001743

$53.99

7

Latch

705007379

$28.99

8

Hexagonal Head Screw

210262050

$2.11

9

Hex. Flange Screw M8 X 40

207684044

$1.48

10

Hex. Flange Elastic Nut M8

233281414

$1.47

11

Lug

705002223

$25.99

12

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

13

Flat Washer 8 mm

234082410

$1.47

14

Hex. Jam Nut M8

232180600

$0.67

15

PIVOT PLATE - Call your local BRP dealership

708001770

Unavailable

16

Hex. Flange Screw M6 X 130

230663084

$3.38

17

SPACER BUSHING - Call your local BRP dealership

708000824

Unavailable

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

19

Hex. Flange Screw M8 X 30

207683034

$4.44

20

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.69

21

Tie-Rap 180 mm

414115200

$0.11

22

Trim 1000Mm Long

219704354

$15.99
