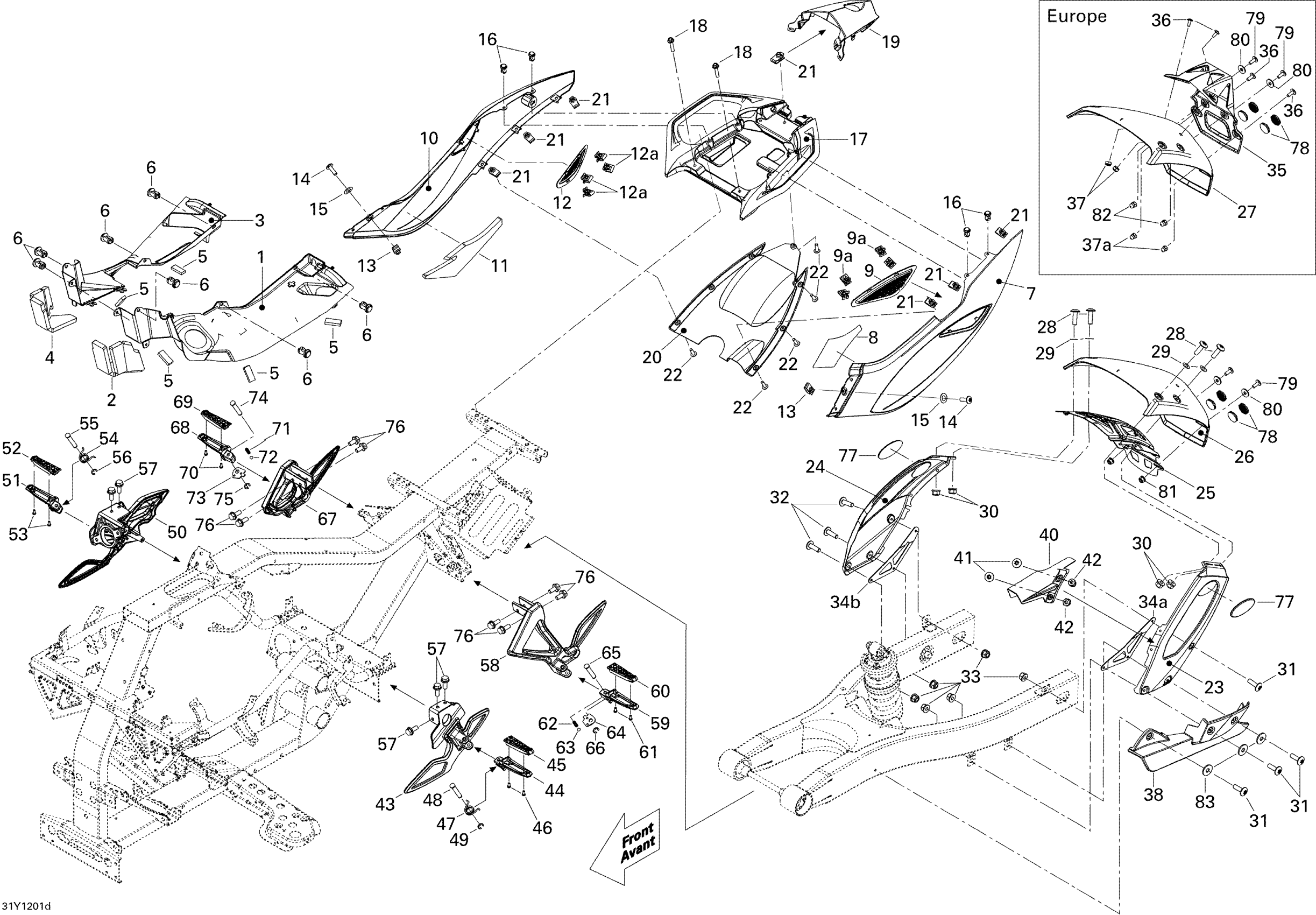

Can-Am Spyder RS SE5, 2012 Body And Accessories Rear Diagram

#

Description
Price

1

TANK COVER LH - Call your local BRP dealership

705006275

Unavailable

2

LH FOAM - Call your local BRP dealership

705002920

Unavailable

3

RH GAS TANK COVER - Call your local BRP dealership

705002546

Unavailable

4

RH DEFLECTOR FOAM - Call your local BRP dealership

705002921

Unavailable

5

Neoprene Seal (1PAC=3M)

219704364

$22.72

6

Tuflok Plastic Rivet

293150230

$1.21

7

REAR PANEL - Call your local BRP dealership | RS Black Model

705005598

Unavailable

7

PANEL_BODY REAR L B-313 - Call your local BRP dealership | Model-Vegas White Pearl

705008912

Unavailable

7

PANEL_BODY REAR L B-332 - Call your local BRP dealership | RS-S Green Model

705008923

Unavailable

7

PANEL_BODY REAR L B-311 - Call your local BRP dealership | Model-Red Dragon

705008934

Unavailable

7

PANEL_BODY REAR L B-321 - Call your local BRP dealership | RS, Magnesium Model

705008927

Unavailable

8

LH Heat Reflective Sheet

705002508

$11.00

9

LH REAR GRILL - Call your local BRP dealership | Model-RS

705001542

Unavailable

9a

Edge Clip

517302785

$0.70

10

RH REAR PANEL, BLACK - Call your local BRP dealership | RS Black Model

705006223

Unavailable

10

PANEL_BODY REAR R B-313 - Call your local BRP dealership | Model-Vegas White Pearl

705008914

Unavailable

10

REAR PANEL - Call your local BRP dealership | RS-S Green Model

705008924

Unavailable

10

PANEL_BODY REAR R B-311 - Call your local BRP dealership | Model-Red Dragon

705008935

Unavailable

10

PANEL_BODY REAR R B-321 - Call your local BRP dealership | RS, Magnesium Model

705008928

Unavailable

11

BLACK RH REAR PANEL FOAM - Call your local BRP dealership

705002509

Unavailable

12

RH REAR GRILL - Call your local BRP dealership | Model-RS

705001544

Unavailable

12a

Edge Clip

517302785

$0.70

13

Panel Nut M6 X 1.0

250100198

$1.73

14

Torx Truss Screw M6 X 20

250000350

$4.39

15

Plastic Washer

705003207

$1.00

16

Tuflok Plastic Rivet

293150230

$1.21

17

Passenger Handle

705009315

$164.00

18

Hex. Flange Screw, Scotch Grip

207584034

$2.06

19

Steel Black Rear Tip | Model-Steel Black Met.

705004657

$115.00

19

PEARL WHITE REAR TIP - Call your local BRP dealership | Model-Vegas White Pearl

705003894

Unavailable

19

Rear Tip, Metallic Black | GS Black A19N Model

705004658

$115.00

19

Rear Tip, Metallic Black | GS Black A19N Model

705004658

$115.00

19

Steel Black Rear Tip | Model-Steel Black Met.

705004657

$115.00

20

UNDER TAIL COVER - Call your local BRP dealership

705001551

Unavailable

21

Panel Nut M6 X 1.0

250100198

$1.73

22

Torx Truss Screw M6 X 20

250000350

$4.39

23

LH Rear Fender Support

705006084

$110.00

24

RH REAR FENDER SUPPORT - Call your local BRP dealership

705006085

Unavailable

25

CENTRAL REAR FENDER SUPPORT - Call your local BRP dealership

705003031

Unavailable

26

Steel Black Rear Fender | Model-Steel Black Met. North America

705004660

$205.00

26

Rear Fender | Model-Vegas White Pearl North America

705004085

$89.00

26

Rear Fender, Matte Black | GS Black A19N Model

705004661

$205.00

26

Rear Fender, Matte Black | GS Black A19N Model

705004661

$205.00

26

Steel Black Rear Fender | Model-Steel Black Met. North America

705004660

$205.00

27

PEARL WHITE REAR FENDER - Call your local BRP dealership | Model-Vegas White Pearl Europe

705003899

Unavailable

27

FENDER REAR B-266 - Call your local BRP dealership | Model-Steel Black Met. Australie

705004666

Unavailable

27

REAR FENDER, MATTE BLACK - Call your local BRP dealership | RS-S Alloy Orange-Black Europe Model

705004668

Unavailable

27

REAR FENDER, MATTE BLACK - Call your local BRP dealership | RS-S Alloy Orange-Black Europe Model

705004668

Unavailable

27

FENDER REAR B-266 - Call your local BRP dealership | Model-Steel Black Met. Australie

705004666

Unavailable

28

Torx Truss Screw M6 X 20

250000303

$7.00

29

Plastic Washer

705003207

$1.00

30

Hex. Flange Elastic Nut M6

233261494

$1.26

31

Torx Truss Screw M6 X 20

250000350

$4.39

32

Torx Truss Screw M6 X 20

250000350

$4.39

33

Hex. Flange Elastic Nut M6

233261494

$1.26

34a

LH REINFORCEMENT PLATE - Call your local BRP dealership

705002980

$30.00

34b

RH Reinforcement Plate

705002981

$34.00

35

LICENCE PLATE SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705002367

Unavailable

36

Torx Truss Screw M6 X 16

250000348

$1.74

37

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

37a

Domed Nut M6

232361493

$1.77

38

Lower Belt Guard

705002092

$49.00

40

UPPER BELT GUARD - Call your local BRP dealership

705007213

$45.00

41

Torx Truss Screw M6 X 10

250000349

$7.31

42

Domed Nut M6

232361493

$1.77

43

LH FRONT FOOT SUPPORT - Call your local BRP dealership | RS STD

705004179

Unavailable

43

LH FRONT FOOT SUPPORT - Call your local BRP dealership

705004673

Unavailable

44

LH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004180

Unavailable

44

LH FRONT FOOTREST - Call your local BRP dealership

705004671

Unavailable

45

Rubber Pad | RS STD

705002359

$25.00

46

Allen Plastite Screw #12

250000099

$2.31

47

Spring | RS STD

705001701

$15.00

48

Retainer Pin | RS STD

705001702

$18.00

49

Circlip | RS STD

705601030

$4.12

50

RH Foot Support | RS STD

705004182

$155.00

50

RH Foot Support

705004674

$245.00

51

RH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004183

Unavailable

51

RH FRONT FOOTREST - Call your local BRP dealership

705004672

Unavailable

52

Rubber Pad | RS STD

705002359

$25.00

53

Allen Plastite Screw #12

250000099

$2.31

54

Spring

705003362

$49.00

55

Retainer Pin | RS STD

705001702

$18.00

56

Circlip | RS STD

705601030

$4.12

57

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

58

LH Rear Foot Support | RS STD

705004185

$150.00

58

LH Rear Foot Support

705004678

$185.00

59

LH REAR FOOTREST - Call your local BRP dealership | RS STD

705004186

Unavailable

59

LH REAR FOOTREST - Call your local BRP dealership

705004680

Unavailable

60

Rubber Pad | RS STD

705002359

$25.00

61

Allen Plastite Screw #12

250000099

$2.31

62

Spring | RS STD

705001704

$13.00

63

Ball

705001705

$6.00

64

Indexation Plate | RS STD

705001706

$12.00

65

Retainer Pin | RS STD

705001702

$18.00

66

Circlip | RS STD

705601030

$4.12

67

RH REAR FOOTREST SUPPORT - Call your local BRP dealership | RS STD

705006603

Unavailable

67

RH REAR FOOT SUPPORT - Call your local BRP dealership

705003533

Unavailable

68

RH REAR FOOTREST - Call your local BRP dealership | RS STD

705004189

Unavailable

68

RH REAR FOOTREST - Call your local BRP dealership

705004681

Unavailable

69

Rubber Pad | RS STD

705002359

$25.00

70

Allen Plastite Screw #12

250000099

$2.31

71

Spring | RS STD

705001704

$13.00

72

Ball

705001705

$6.00

73

Indexation Plate | RS STD

705001706

$12.00

74

Retainer Pin | RS STD

705001702

$18.00

75

Circlip | RS STD

705601030

$4.12

76

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

77

RED LATERAL REFLECTOR - Call your local BRP dealership | Model-North America

219400236

Unavailable

77

GIVI REFLECTOR - Call your local BRP dealership | Model-Australie, Brezil, Europe

219400237

Unavailable

78

Dual Lock Velcro Washer 3/4"

293740028

$4.00

79

Torx Truss Screw M6 X 20

250000303

$7.00

80

Flat Washer M6, Stainless

234062600

$0.64

81

Hex. Flange Elastic Nut M6

233261494

$1.26

82

Domed Nut M6

232361493

$1.77

83

Stainless Steel Flat Washer

234062670

$1.74
