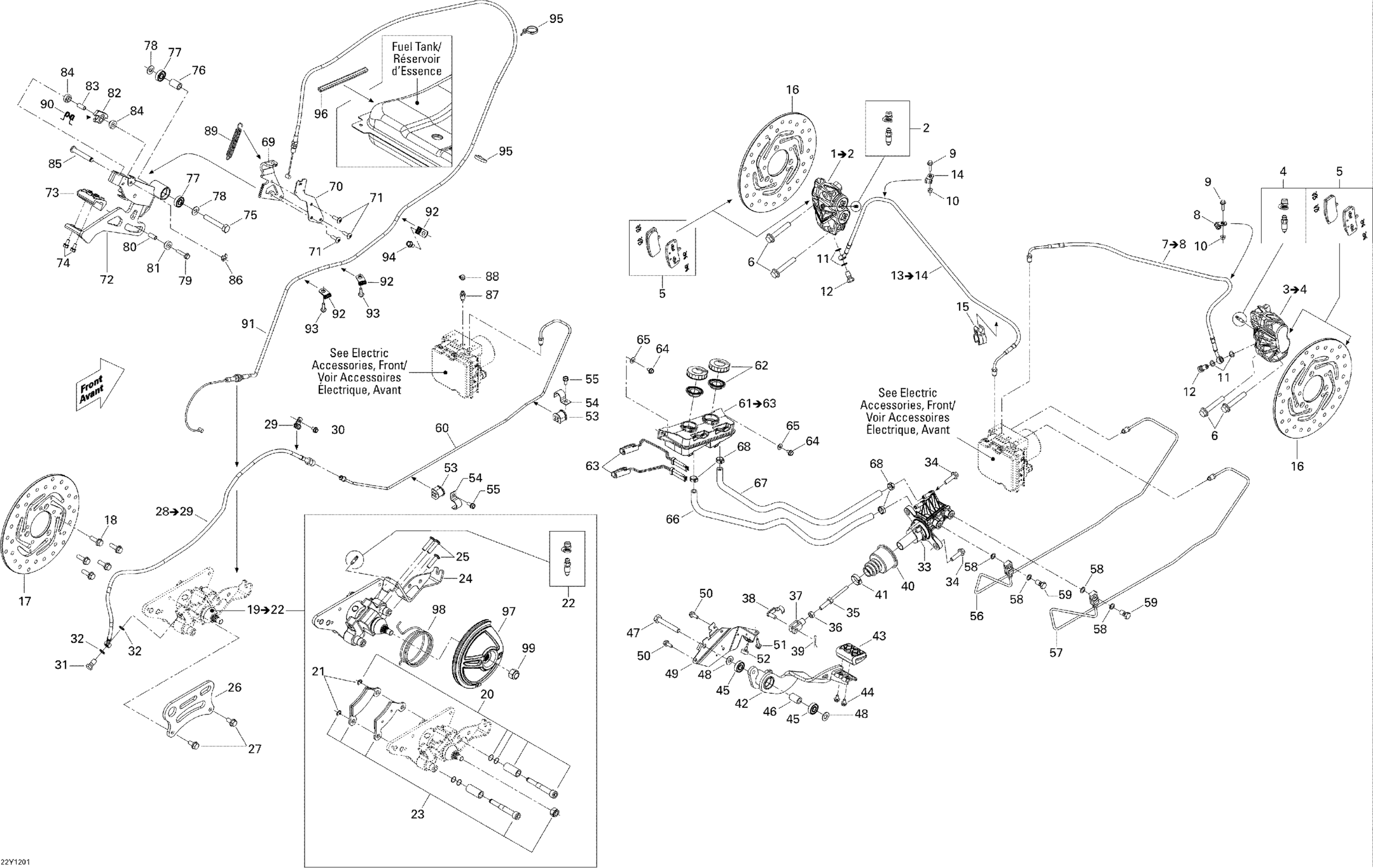

Can-Am Spyder RS SE5, 2012 Hydraulic Brake Diagram

#

Description
Price

1

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 2

219800125

Unavailable

2

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 4

219800126

Unavailable

4

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

5

Pad Kit (4 Pads)

219800164

$155.00

6

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

207506034

Unavailable

7

RH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 7 to 8

705600852

Unavailable

8

Clamp

293650256

$4.36

9

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

Unavailable

10

Flange Elastic Nut M5

233251434

$1.66

11

Washer

414920600

$1.52

12

Banjo Bolt

414920500

$8.49

13

LH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 11 to 12

705600853

Unavailable

14

Clamp

293650256

$4.36

15

Hose Clip

705600854

Unavailable

16

FRONT BRAKE DISC - Call your local BRP dealership

705600435

Unavailable

17

REAR BRAKE DISC - Call your local BRP dealership

705600591

$230.00

18

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.68

19

Rear Caliper | Includes 3 to 6

705600921

$720.00

20

BUSHING KIT - Call your local BRP dealership

219800032

Unavailable

21

RETAINING RING - Call your local BRP dealership

219800050

Unavailable

22

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

23

Rear Pad Kit

219800165

$78.00

24

CABLE SUPPORT - Call your local BRP dealership

705600974

Unavailable

25

THREAD FORMING SCREW 1/4-20 X 1 - Call your local BRP dealership

250000413

Unavailable

26

REAR CALIPER SUPPORT - Call your local BRP dealership

705600430

Unavailable

27

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.08

28

REAR BRAKE LINE - Call your local BRP dealership | Includes 8 to 9

705600813

Unavailable

29

Clamp

293650256

$4.36

30

Hex. Flange Screw M6 X 12

210261250

$1.56

31

Banjo Bolt

414920500

$8.49

32

Washer

414920600

$1.52

33

Tandem Cylinder Master

705600722

$370.00

34

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.68

35

Piston Rod

705600468

$23.00

36

Hex. Nut M8

232081414

$0.60

37

Yoke

705600100

Unavailable

38

Pin

250400062

$7.12

39

Cotter Pin

371800700

$0.98

40

Bellow

705600716

$12.00

41

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

42

BRAKE PEDAL - Call your local BRP dealership | Model-RS

705600633

Unavailable

43

Rubber Pad

705004933

$21.00

44

Hex. Flange Screw M6 X 12

210261250

$1.56

45

Bearing

705600458

$7.03

46

Bushing

705600541

$15.00

47

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

48

Washer

503183800

$3.20

49

TAB LOCK - Call your local BRP dealership

705600823

Unavailable

50

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

51

Hex. Forming Screw M6 X 10

210261050

$1.42

52

Rubber Stopper

708000759

$3.61

53

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

54

Clip

705600507

Unavailable

55

Hex. Flange Screw M6 X 12

210261250

$1.56

56

FRONT TANDEM RIGID TUBE - Call your local BRP dealership

705600721

Unavailable

57

REAR TANDEM RIGID TUBE - Call your local BRP dealership

705600742

Unavailable

58

Washer

414920600

$1.52

59

Banjo Bolt

414920500

$8.49

60

REAR RIGID TUBE - Call your local BRP dealership

705600834

Unavailable

61

OIL RESERVOIR - Call your local BRP dealership | Includes 40 to 41

219800324

Unavailable

62

Cap And Diaphragm Kit

219800058

$19.00

63

Oil Level Sensor

515176508

$29.97

64

Hex. Flange Screw M6 X 12

210261250

$1.56

65

Flat Washer

224061121

$0.44

66

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

67

HOSE 8MM 3000MM LONG - Call your local BRP dealership

219704417

Unavailable

68

Crimp Clamp, 15.3-706R

293650047

$2.64

69

PEDAL PLATE - Call your local BRP dealership

705600776

Unavailable

70

SWITCH PLATE - Call your local BRP dealership

705600584

Unavailable

71

Torx Truss Screw M6 X 20

250000350

$4.39

72

BRAKE PEDAL - Call your local BRP dealership

705600838

Unavailable

73

Rubber Pad

705004933

$21.00

74

Hex. Flange Screw M6 X 12

210261250

$1.56

75

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.31

76

Bushing

705600541

$15.00

77

Bearing

705600458

$7.03

78

Washer

503183800

$3.20

79

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

80

Bushing | Model-RS

705600588

$15.00

81

Bushing | Model-RS

705600587

$10.00

82

Key | Model-RS

705600524

$17.00

83

Bushing | Model-RS

705600588

$15.00

84

Bushing | Model-RS

705600587

$10.00

85

Pin | Model-RS

293370064

$18.00

86

Circlip | Model-RS

414439000

$4.14

87

Bleeder Screw

705600502

$11.06

88

BLEEDER CAP - Call your local BRP dealership

705600554

Unavailable

89

SPRING - Call your local BRP dealership | Model-RS

707000543

Unavailable

90

Spring | Model-RS

705600525

$15.00

91

BRAKE CABLE - Call your local BRP dealership

707000812

Unavailable

92

Bracket

415052400

$4.12

93

Hex. Flange Screw M6 X 20

207662034

$1.74

94

Hex. Flange Screw M6 X 12

210261250

$1.56

95

Tie-Rap 180 mm

414115200

$0.09

96

Trim 1000Mm Long

219704354

$14.74

97

REAR PULLEY CABLE - Call your local BRP dealership

705600772

Unavailable

98

Spring

705601065

$9.00

99

NUT 7/16'' - Call your local BRP dealership

250100128

Unavailable
