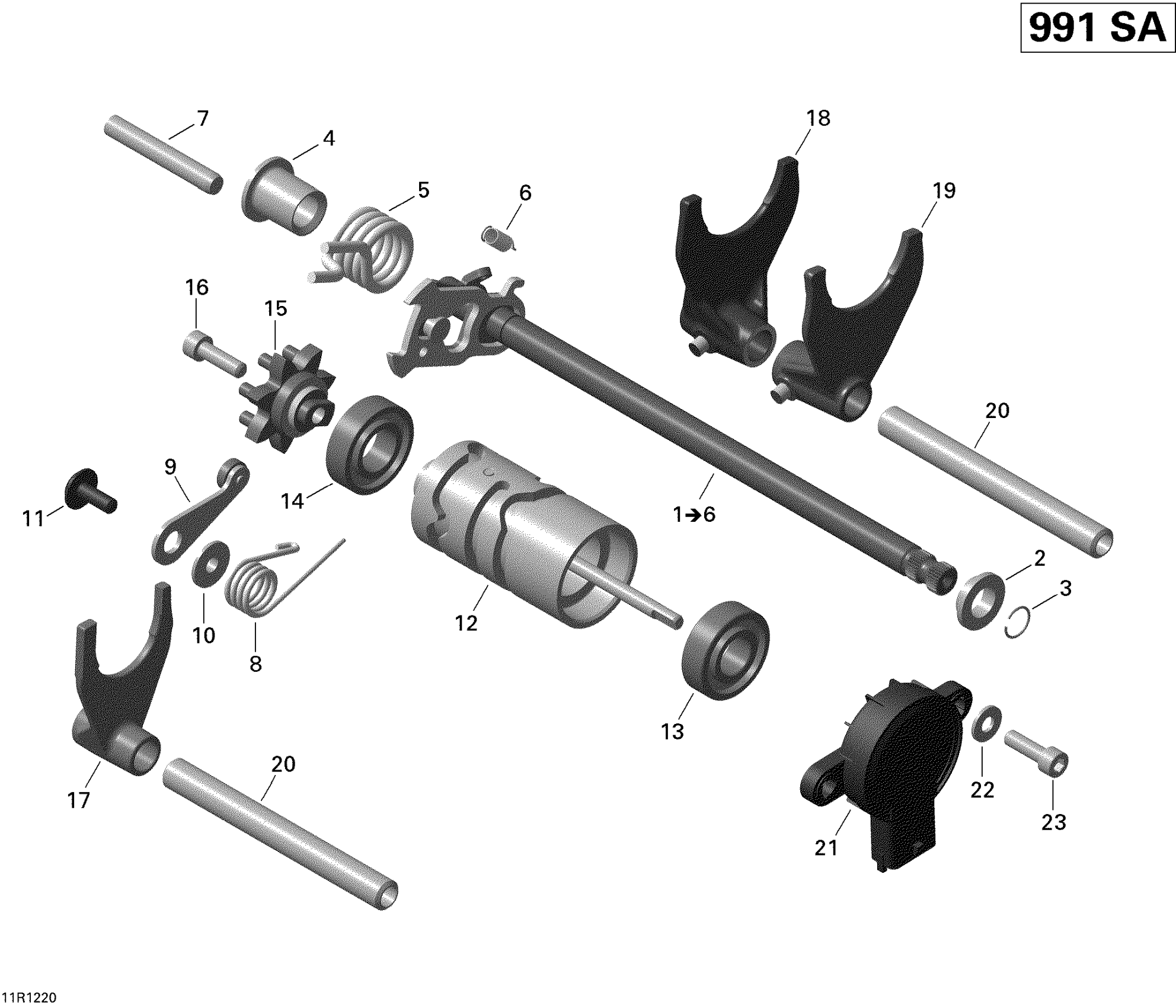

Can-Am Spyder RS SE5, 2012 Shifting System Diagram

#

Description
Price

1

Clutch Shaft Ass'y | Includes 1 to 6

420620598

$88.00

2

Step Ring

420227714

$12.00

3

Snap Ring

420245440

$3.00

4

SLEEVE - Call your local BRP dealership

420247946

Unavailable

5

SPRING - Call your local BRP dealership

420238760

$16.00

6

Spring

420239431

$8.00

7

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

8

Return Spring

420239248

$7.00

9

INDEXATION LEVER - Call your local BRP dealership

420248376

$28.00

10

Step Ring

420227716

$12.00

11

Torx Screw M6 X 16

420241529

$1.56

12

Shift Drum

420657029

$169.00

13

Ball Bearing

420932290

$24.00

14

Ball Bearing

420232625

$21.00

15

Shim

420258316

$47.00

16

Allen Screw M6 X 20

420241939

$0.68

17

SHIFT FORK SHAFT - Call your local BRP dealership

420257690

Unavailable

18

Shift Fork Shaft

420258355

$83.00

19

Shift Fork Shaft

420258365

$83.00

20

Fork Spindle

420258383

$23.05

21

Angle Rotation Sensor

420266168

$182.28

22

Flat Washer

224061121

$0.44

23

Allen Screw M6 X 20

420241939

$0.68
