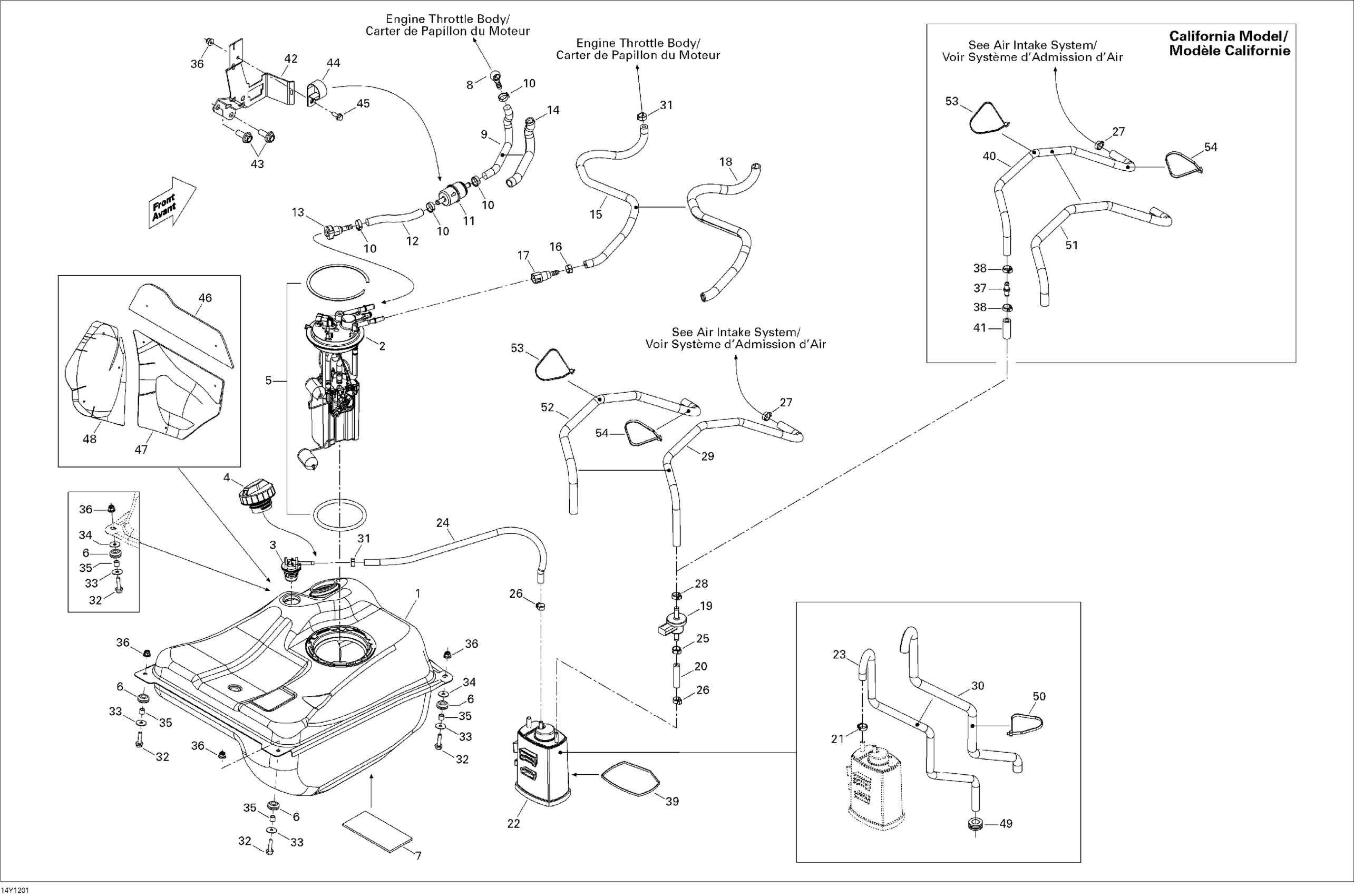

Can-Am Spyder RS SE5, 2012 Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000314

Unavailable

2

Pump Module

709000088

$625.00

3

Rollover Valve

709000413

$52.28

4

Fuel Cap

709000660

$15.00

5

Seal Kit

219800248

$39.00

6

Grommet

709000582

$4.38

7

Carpet

709000130

$14.00

8

BANJO FITTING - Call your local BRP dealership

709000137

$20.00

9

Fuel Line 7.9 mm, Meter

709000264

$16.00

10

Oetiker Clamp

293650125

$2.69

11

Fuel Filter

513034047

$23.05

12

Fuel Line 7.9 mm, Meter

709000265

$13.00

13

Female Quick Fitting Ass'y

709000125

$11.12

14

Tubing 16 Mm 1000Mm Long

219704408

$6.23

15

HOSE 6,35MM ID - 620MM - Call your local BRP dealership

709000266

Unavailable

16

Oetiker Clamp

293650046

$2.33

17

Quick Connect Pipe Fitting

293710192

$12.00

18

Tubing

513033412

$4.28

19

Bleed Valve

709000443

$69.20

20

HOSE - Call your local BRP dealership

709000254

Unavailable

21

Crimp Clamp, 15.3-706R

293650047

$2.64

22

Vapor Canister

709000090

$87.66

23

Formed Hose

709000277

$29.00

24

Hose

513033565

$29.20

25

Crimp Clamp, 15.3-706R

293650047

$2.64

26

Oetiker Gear Clamp

293650025

$2.46

27

Crimp Clamp, 15.3-706R

293650047

$2.64

28

Crimp Clamp, 15.3-706R

293650047

$2.64

29

Hose 3000Mm Long

219704612

$79.97

30

Tubing

513033412

$4.28

31

Oetiker Gear Clamp

293650025

$2.46

32

Hex. Flange Screw M6 X 25

207662544

$0.53

33

Flat Washer

224060201

$1.15

34

Flat Washer

224060201

$1.15

35

Bushing

709000162

$13.83

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Flow Reducer | California

709000416

Unavailable

38

Crimp Clamp, 15.3-706R

293650047

$2.64

39

Tie Wrap 368 mm

293750008

$0.85

40

Hose 3000Mm Long

219704612

$79.97

41

Hose 3000Mm Long

219704612

$79.97

42

Support

709000150

Unavailable

43

Hex. Flange Screw M10 X 25

207602544

$1.33

44

Open Clamp

513033047

$4.88

45

Hex. Flange Screw M6 X 16

207661644

$0.61

46

Reflective Sheet

709000157

$21.00

47

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

48

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable

49

Grommet

293720087

$7.00

50

Tie-Rap 180 mm

414115200

$0.09

51

Tubing 16 Mm 1000Mm Long

219704408

$6.23

52

Tubing 16 Mm 1000Mm Long

219704408

$6.23

53

Tie-Rap 180 mm

414115200

$0.09

54

Tie-Rap 180 mm

414115200

$0.09
