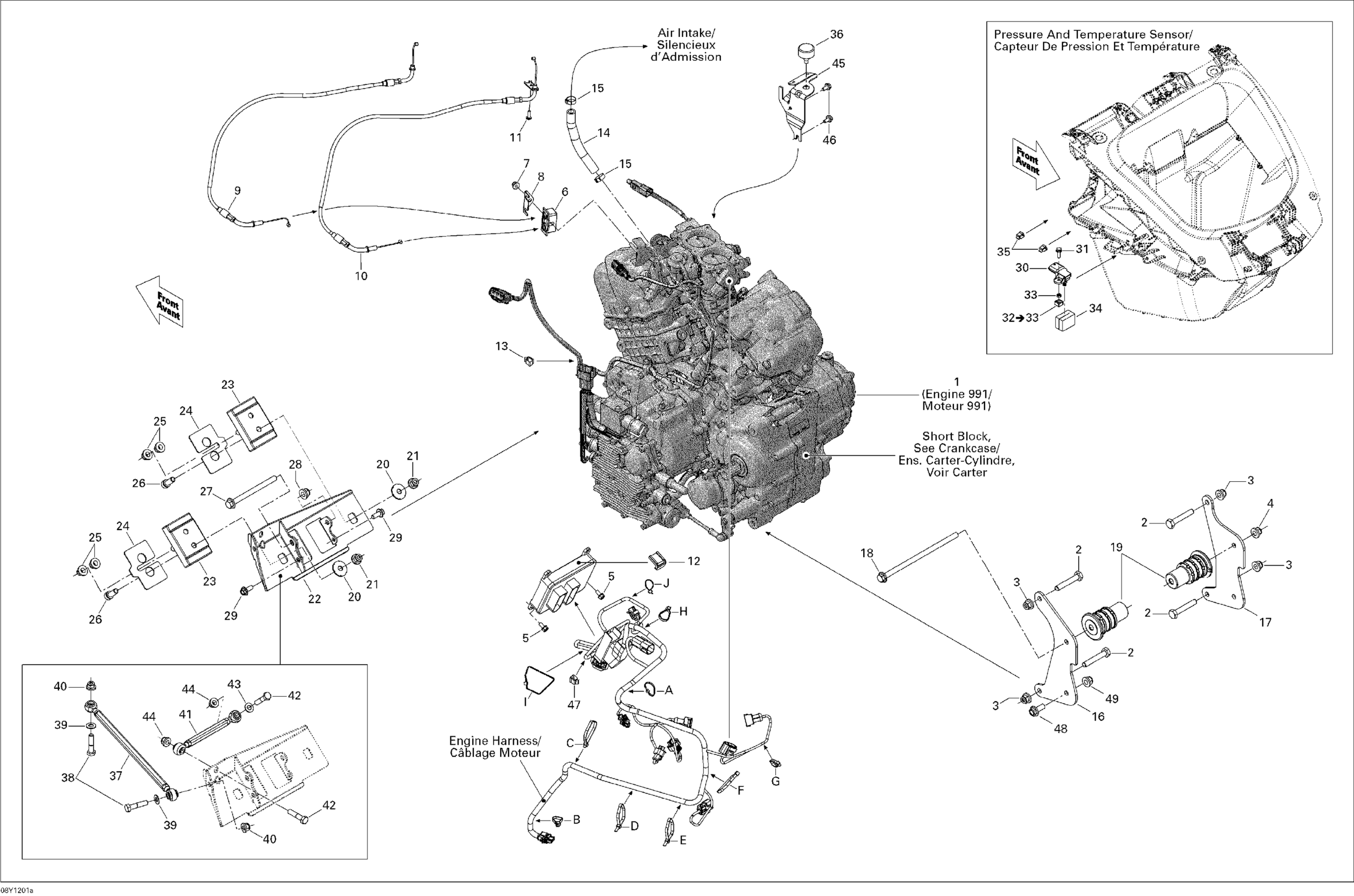

Can-Am Spyder RS SE5, 2012 Engine SE5 Diagram

#

Description
Price

1

ENGINE 991 - Call your local BRP dealership | Long Block 421000709

707000962

Unavailable

2

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

3

Hex. Flange Elastic Nut M10

233201436

$1.74

4

Hex. Flange Elastic Nut M10

233201436

$1.74

5

Hex. Flange Screw M6 X 12

210261250

$1.56

6

INDEXING BLOCK - Call your local BRP dealership

707000614

Unavailable

7

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

8

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

9

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

10

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

11

Torx Screw M5 X 14

250000742

$1.20

12

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

13

Clip

414227300

$1.45

14

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

15

Oetiker Clamp

293650186

$3.33

16

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

17

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

18

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

19

RUBBER MOUNT - Call your local BRP dealership

707000814

Unavailable

20

Lock Washer

512056700

$3.11

21

Hex. Flange Elastic Nut M10

233201436

$1.74

22

FRONT ENGINE SUPORT - Call your local BRP dealership

707001072

Unavailable

23

RUBBER MOUNT - Call your local BRP dealership

707000815

Unavailable

24

Shim

707001074

Unavailable

25

Hex. Flange Elastic Nut M10

233201436

$1.74

26

Socket Head Screw M10 X 25

205002544

$1.25

27

Hex. Flange Screw M10 X 125

230602546

$6.08

28

Hex. Flange Elastic Nut M10

233201436

$1.74

29

Hex. Flange Screw M8 X 20

207682044

$0.92

30

Pressure And Temperature Sensor

707000995

$70.82

31

Hex. Flange Screw M6 X 20

207662084

$0.83

32

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

33

Hex. Elastic Stop Nut M6

232561600

$0.92

34

Foam Filter

707000586

$6.00

35

Clip

414227300

$1.45

36

Rubber Stopper

708000758

$9.37

37

TIE ROD ASS'Y - Call your local BRP dealership

707000816

Unavailable

38

Hex. Screw M10 X 45

207004544

$1.65

39

Flat Washer 10 mm

234001410

$0.98

40

Hex. Flange Elastic Nut M10

233201436

$1.74

41

TIE ROD ASS'Y - Call your local BRP dealership

707001001

Unavailable

42

Hex. Screw M10 X 45

207004544

$1.65

43

Flat Washer 10 mm

234001410

$0.98

44

Hex. Flange Elastic Nut M10

233201436

$1.74

45

Intake Support

707000756

$11.00

46

Hex. Flange Screw M6 X 12

207661244

$1.70

47

Clip

414227300

$1.45

48

Hex. Flange Screw M10 X 25

207602544

$1.33

49

Hex. Flange Elastic Nut M10

233201436

$1.74

A

Tie Wrap 142 mm

293750002

$0.88

B

Tie Wrap 368 mm

293750008

$0.85

C

Tie Wrap 368 mm

293750008

$0.85

D

Tie Wrap 368 mm

293750008

$0.85

E

Tie Wrap 368 mm

293750008

$0.85

F

Tie-Rap 180 mm

414115200

$0.09

G

Tie-Rap 180 mm

414115200

$0.09

H

Tie-Rap 180 mm

414115200

$0.09

I

Tie Wrap 368 mm

293750008

$0.85

J

Tie-Rap 180 mm

414115200

$0.09
