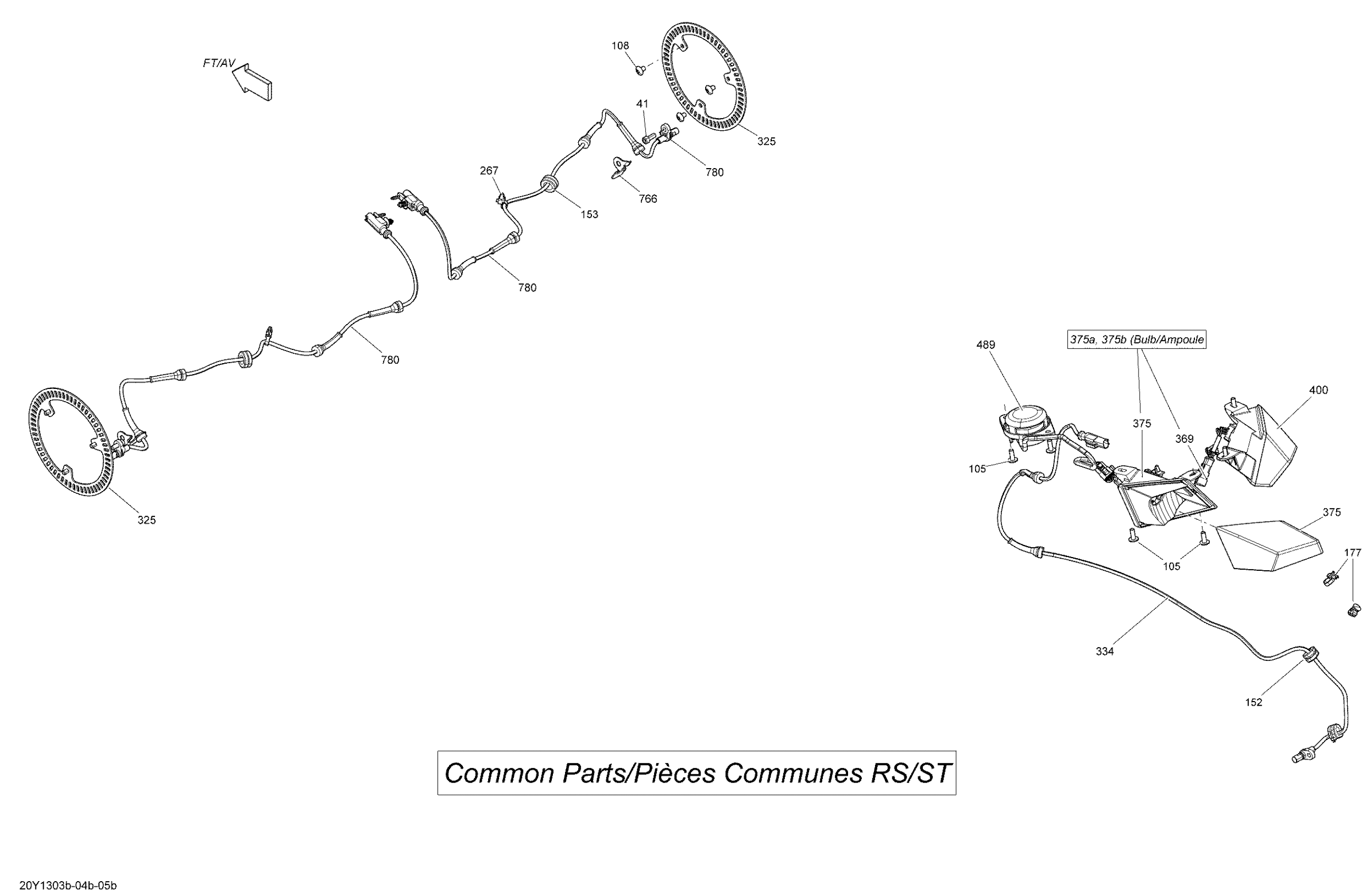

Can-Am Spyder RS_RSS SE5, 2013 Electrical System Common Parts Diagram

Description

Price

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.37

105

Torx Truss Screw M6 X 16

250000721

$1.39

108

Torx-truss M/s M6 X 10

250000995

$3.61

152

Grommet

293720084

$6.00

153

Grommet

293720095

$8.00

177

Tie Rap Mount

293750044

$2.00

267

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

325

Front Sensor Wheel

705601512

$44.00

334

Speed Sensor

706202361

$165.00

369

Housing

710000568

$10.83

375

LH Tail Light Ass'y

515176850

$61.99

400

RH Tail Light Ass'y

515176849

$61.99

489

Passenger Detection Switch

710008103

$72.28

766

RH Support Wire

710004861

$2.00

780

Kit Speed Sensor

219800456

$87.00

375a

Bulb

520000758

$7.49

375b

Flasher Bulb

219800122

$7.00
