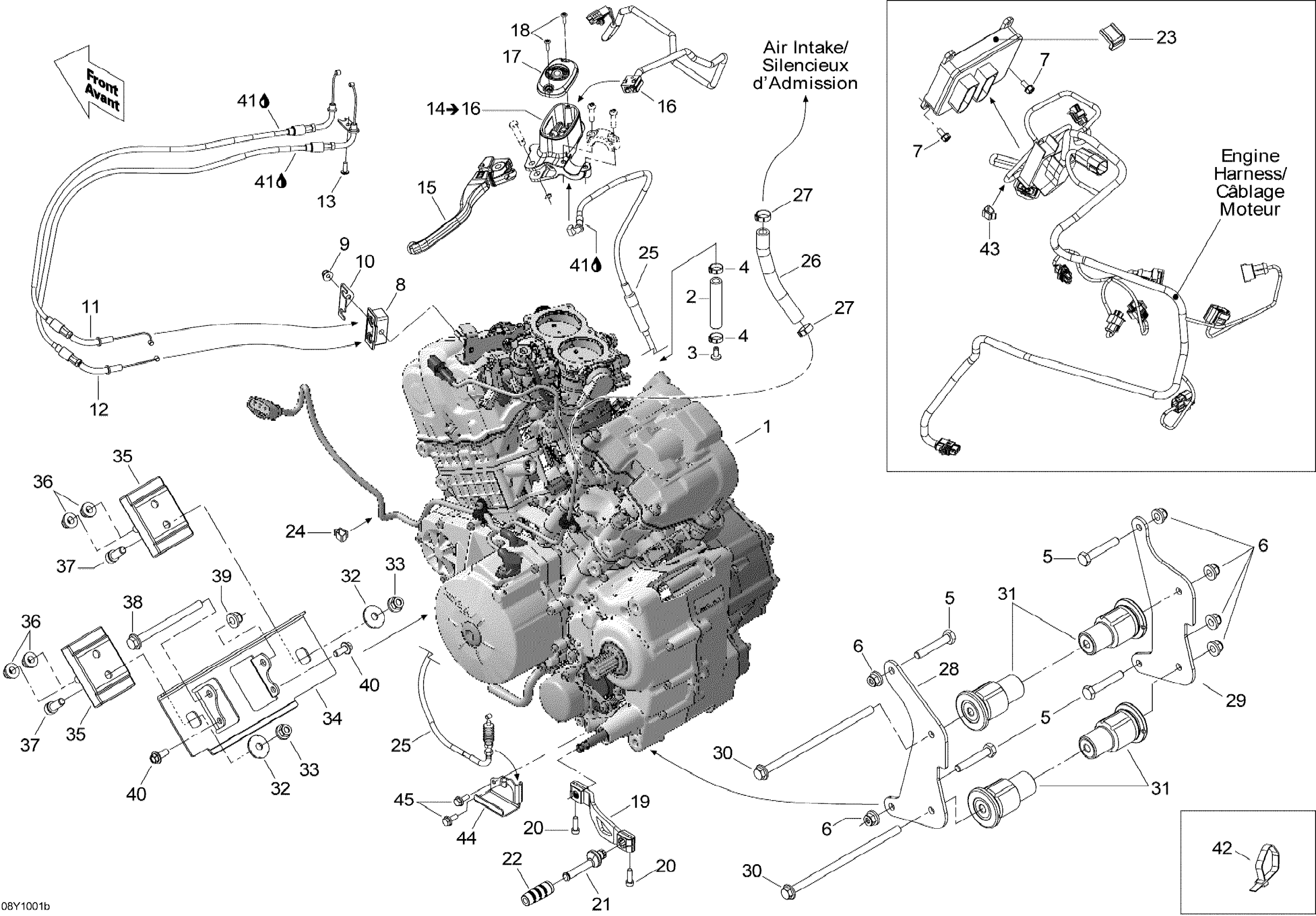

Can-Am Spyder RS Roadster SM5, Late Production 2010 Engine SM5 Diagram

#

Description
Price

1

ENGINE 991 - Call your local BRP dealership | Long Block 421000708

707000963

Unavailable

2

Hose

513033565

$28.33

3

PLUG - Call your local BRP dealership | SE5 Electronic

707000946

Unavailable

4

Spring Clamp

414415200

$0.81

5

HEX. SCREW M10 X 60 - Call your local BRP dealership

207006044

Unavailable

6

Hex. Flange Elastic Nut M10

233201436

$1.74

7

Hex. Flange Screw M6 X 12

210261250

$1.56

8

INDEXING BLOCK - Call your local BRP dealership

707000609

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

10

FIXATION PLATE - Call your local BRP dealership

707000610

Unavailable

11

THROTTLE CABLE - Call your local BRP dealership

707001208

Unavailable

12

THROTTLE CABLE - Call your local BRP dealership

707001209

Unavailable

13

Torx Screw M5 X 14

250000742

$1.20

14

CLUTCH LEVER ASS'Y - Call your local BRP dealership | Includes 12 to 16

707000849

Unavailable

15

CLUTCH LEVER - Call your local BRP dealership

707000623

Unavailable

16

SWITCH - Call your local BRP dealership

710002086

$93.99

17

COVER RESERVOIR - Call your local BRP dealership

707000616

Unavailable

18

Screw 8-32

250000342

$3.19

19

LEVER - Call your local BRP dealership

707000386

Unavailable

20

Socket Head Screw Scotch Grip M6 X 20

250001077

$2.52

21

Adjustment Rod

707000455

$29.99

22

End Clutch Pedal

707000456

$8.89

23

MODULE PROTECTOR - Call your local BRP dealership

278001166

Unavailable

24

Clip

414227300

$1.40

25

CABLE REVERSE - Call your local BRP dealership

707000811

Unavailable

26

HOSE-11.1MM. 1000MM LONG - Call your local BRP dealership

219704436

Unavailable

27

Oetiker Clamp

293650186

$3.33

28

LH SUPPORT - Call your local BRP dealership

707000510

Unavailable

29

RH SUPPORT - Call your local BRP dealership

707000512

Unavailable

30

HEX. FLANGED SCREW M10 X 210 - Call your local BRP dealership

250000286

Unavailable

31

RUBBER MOUNT - Call your local BRP dealership

707000516

Unavailable

32

Lock Washer

512056700

$3.01

33

Hex. Flange Elastic Nut M10

233201436

$1.74

34

Front Engine Support

707000823

Unavailable

35

RUBBER MOUNT - Call your local BRP dealership

707000441

Unavailable

36

Hex. Flange Elastic Nut M10

233201436

$1.74

37

Socket Head Screw M10 X 25

205002544

$1.25

38

Hex. Flange Screw M10 X 125

230602546

$6.08

39

Hex. Flange Elastic Nut M10

233201436

$1.74

40

Hex. Flange Screw M8 X 20

207682044

$0.92

41

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

42

Tie Wrap 142 mm

293750002

$0.88

42

Tie-Rap 180 mm

414115200

$0.09

42

Tie Wrap 368 mm

293750008

$0.85

43

Clip

414227300

$1.40

44

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

45

Hex. Flange Screw M6 X 20

207662044

$1.66
