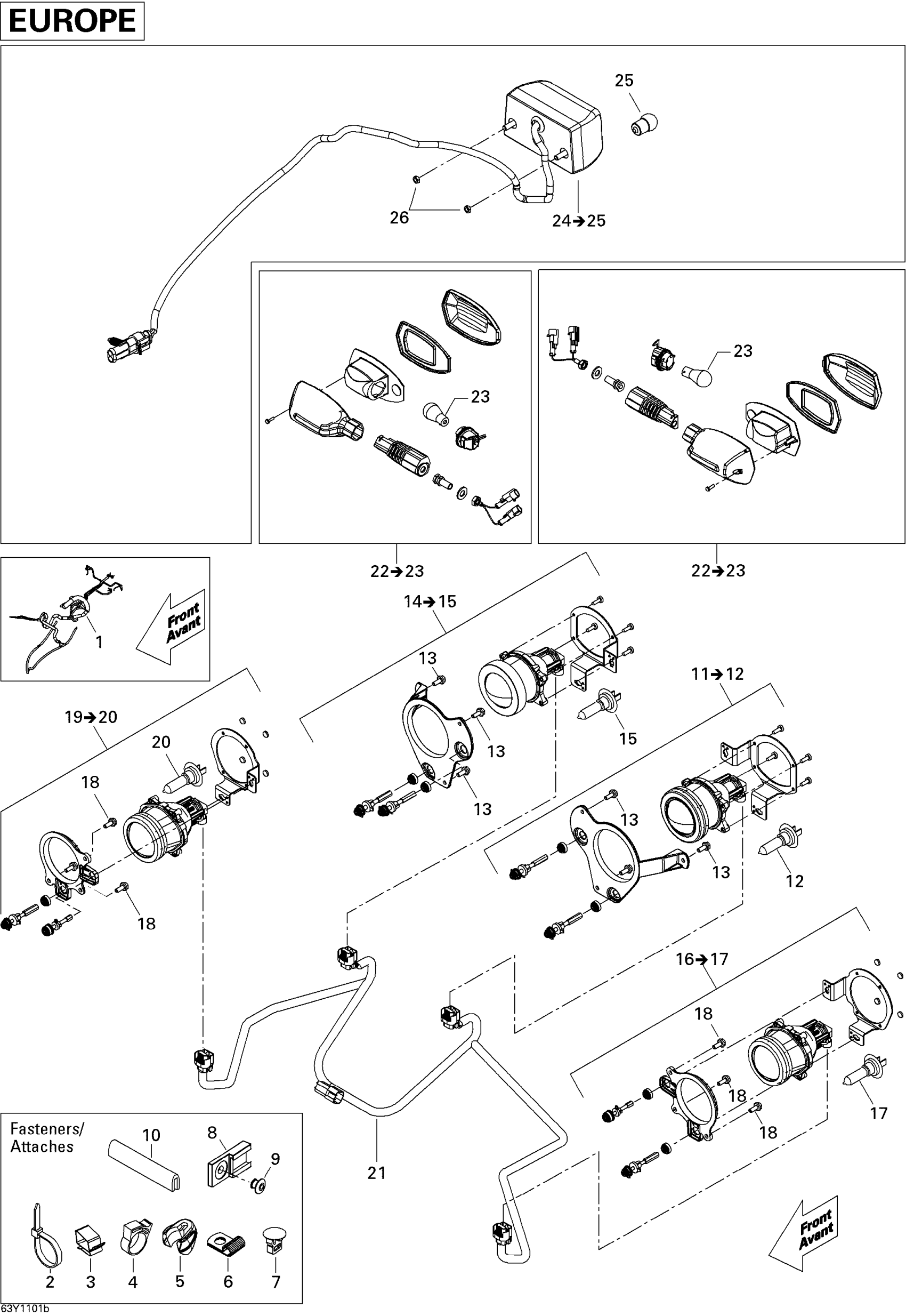

Can-Am Spyder RS Roadster SM5, 2011 Lighting System Europe SM5 Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 to YRS

710001730

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

2

Tie Wrap 368 mm

293750008

$0.85

3

Clip

414227300

$1.45

4

Clamp

293650082

$3.33

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.12

7

Tie Rap Mount

293750044

$2.00

8

Clip

270000141

$8.33

9

Pop Rivet 3/16"

390402400

$0.25

10

Trim 1000Mm Long

219704354

$14.74

11

LH HIGH BEAM ASS'Y - Call your local BRP dealership | Europe, Int'l

710002500

Unavailable

12

Halogen Bulb

415129249

$39.97

13

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

14

RH HIGH BEAM ASS'Y - Call your local BRP dealership | Europe, Int'l

710002499

Unavailable

15

Halogen Bulb

415129249

$39.97

16

LH LOW BEAM ASS'Y - Call your local BRP dealership | Includes 16 to 17

710002498

Unavailable

17

Halogen Bulb

415129249

$39.97

18

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

19

RH LOW BEAM ASS'Y - Call your local BRP dealership | Includes 19 to 20

710002497

Unavailable

20

Halogen Bulb

415129249

$39.97

21

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 882

710000793

Unavailable

22

Amber, Rear Turn Signal | Includes 0u to 0u1

710007006

$83.00

23

Bulb 12V 21W | Not Shown

715900043

$17.00

24

LICENCE LIGHT - Call your local BRP dealership | Includes 24 to 25

710001993

Unavailable

25

Bulb 12V 10W | Not Shown

415129261

$2.00

26

Elastic Flange Nut M5

233251494

$1.74
