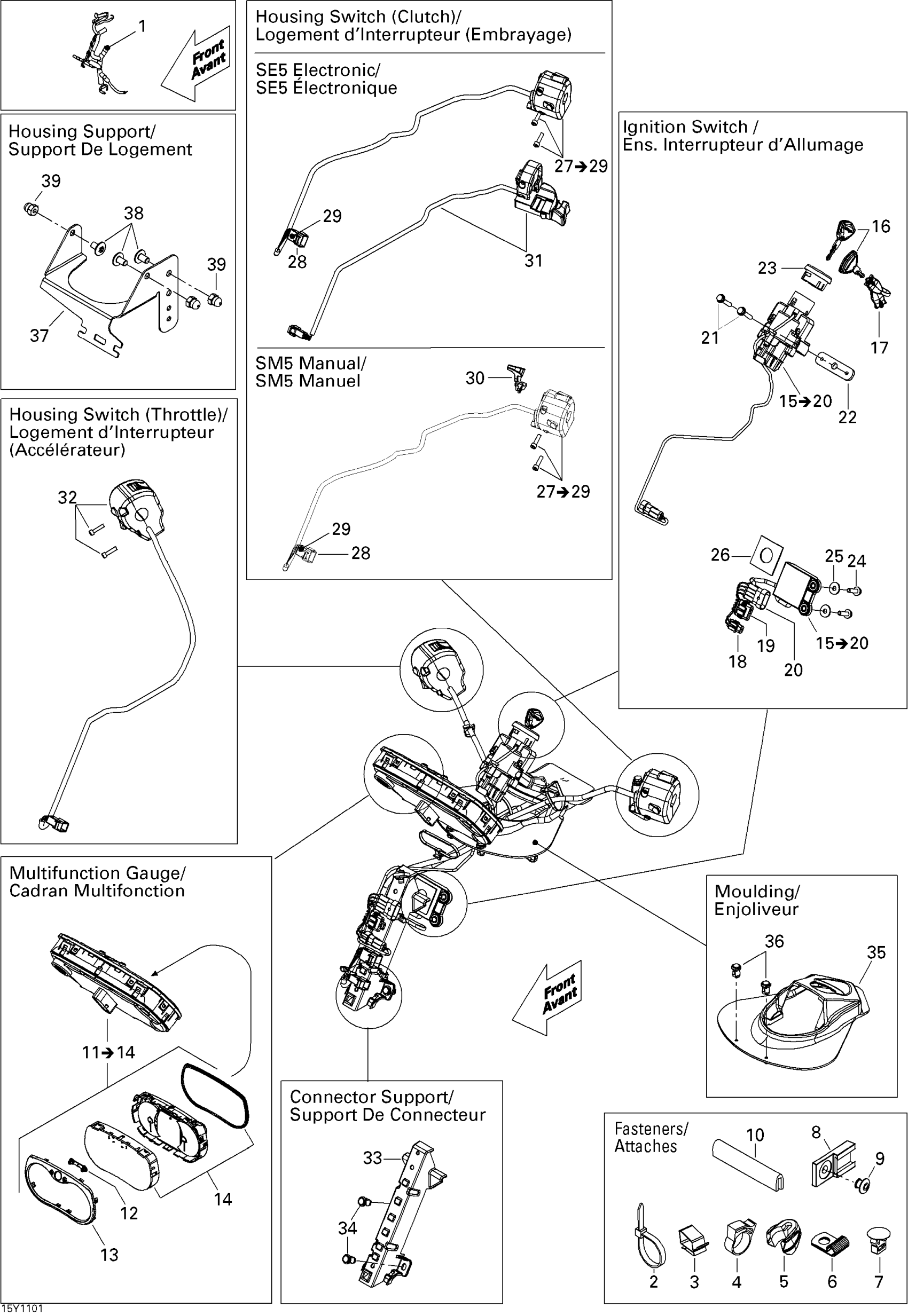

Can-Am Spyder RS Roadster SM5, 2011 Electrical Accessories, Steering SM5 Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 to YRS

710001730

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

2

Tie Wrap 368 mm

293750008

$0.85

3

Clip

414227300

$1.40

4

Clamp

293650082

$3.33

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.00

7

Tie Rap Mount

293750044

$2.49

8

Clip

270000141

$8.33

9

Pop Rivet 3/16"

390402400

$0.25

10

Trim 1000Mm Long

219704354

$14.30

11

Speedometer Program Indicator | 5 Speed, Includes 8a to 8d

710002707

$479.99

12

Speedometer Button | XTP

415129355

$13.52

13

Gauge Ring

415129348

$11.36

14

Lens | XTP

415129349

$22.36

15

Starter Switch | Includes 15 to 20

710002971

$243.49

16

Key Set with Cover (1 key)

710002969

$26.49

17

Key Sleeve

710003597

$26.49

18

Female Housing, 2 Circuits

409209500

$13.07

19

Female Housing, 4 Circuits

409209700

$12.97

20

HOUSING, 4CIRCUITS - Call your local BRP dealership | Europe Models

710000576

Unavailable

21

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

22

Switch Support

710001365

$20.99

23

SWITCH COVER - Call your local BRP dealership

710001194

Unavailable

24

Hexagonal Head Screw

210262050

$1.74

25

Flat Washer 6 mm

234062410

$0.64

26

Rubber Bumper

293830091

$7.37

27

Housing Switch | Includes 19 to 21

515176197

$244.99

28

HOUSING - Call your local BRP dealership

710001148

Unavailable

29

LOCK - Call your local BRP dealership

710001149

Unavailable

30

REVERSE LEVER - Call your local BRP dealership | 5 Speed

710001353

Unavailable

31

Not Available As Spare Parts

XXX

Unavailable

32

HOUSING SWITCH - Call your local BRP dealership

710001488

Unavailable

33

Connector Support

710001328

Unavailable

34

Tuflok Plastic Rivet

293150230

$1.21

35

MOULDING - Call your local BRP dealership

710002074

Unavailable

36

Pop Rivet 3/16"

390402400

$0.25

37

HOUSING SUPPORT - Call your local BRP dealership

705202289

Unavailable

38

Torx Truss Screw M6 X 10

250000349

$7.09

39

Domed Nut M6

232361493

$1.77
