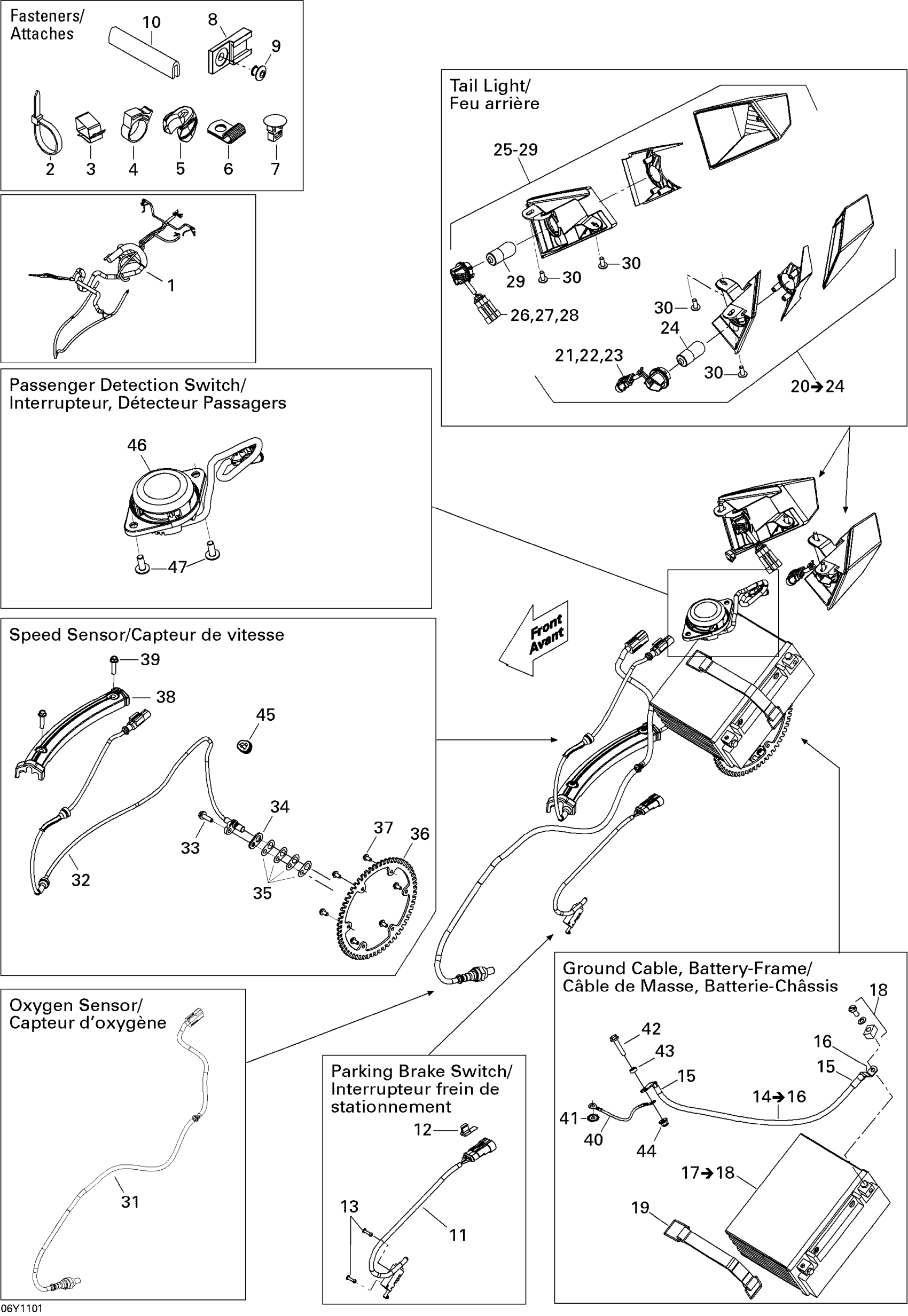

Can-Am Spyder RS Roadster SM5, 2011 Electrical Accessories, Rear SM5 Diagram

#

Description
Price

1

WIRING HARNESS_CHASSIS - Call your local BRP dealership | Includes 1 to YRS

710001730

Unavailable

2

Tie-Rap 180 mm

414115200

$0.09

2

Tie Wrap 368 mm

293750008

$0.85

3

Clip

414227300

$1.40

4

Clamp

293650082

$3.33

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.00

7

Tie Rap Mount

293750044

$2.49

8

Clip

270000141

$8.33

9

Pop Rivet 3/16"

390402400

$0.25

10

Trim 1000Mm Long

219704354

$14.30

11

Brake Pressure Switch Ass'y

710001379

$40.27

12

Clip

710001343

$6.88

13

Pop Rivet

293150150

$1.85

14

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$21.61

15

Was 710000483 Heat Shrink Tubing

219704447

$72.36

16

Open Barrel | STD Models

710000518

$10.49

17

Battery, 12 Volts, 21 Amperes

410922962

$160.52

18

Battery Bolt Kit

250000282

$2.95

19

Battery Strap

515176044

$14.27

20

LH Tail Light Ass'y

515176850

$60.42

21

Housing

710000568

$10.51

22

Male Terminal | Europe Models

409012900

$3.12

23

Wire Seal

278001013

$2.72

24

Bulb

520000758

$7.49

25

RH Tail Light Ass'y

515176849

$60.42

26

Housing

710000568

$10.51

27

Male Terminal | Europe Models

409012900

$3.12

28

Wire Seal

278001013

$2.72

29

Bulb

520000758

$7.49

30

Torx Truss Screw M6 X 16

250000721

$1.39

31

Oxygen Sensor

707600557

$164.99

32

Speed Sensor

706202361

$164.99

33

Hexagonal Head Screw

210262050

$1.74

34

Shim

710002024

$5.66

35

Shim

710002023

$2.85

36

TONE WHEEL - Call your local BRP dealership

705600573

Unavailable

37

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

38

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

39

Torx Truss Screw M6 X 30

250000843

$1.74

40

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

41

Lock Washer Serrated M6

250200041

$0.92

42

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

43

BUSHING - Call your local BRP dealership

293900054

Unavailable

44

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

45

Grommet

293720084

$6.09

46

Passenger Detection Switch

710008103

$70.12

47

Torx Screw M6 X 16

250000755

$0.72
