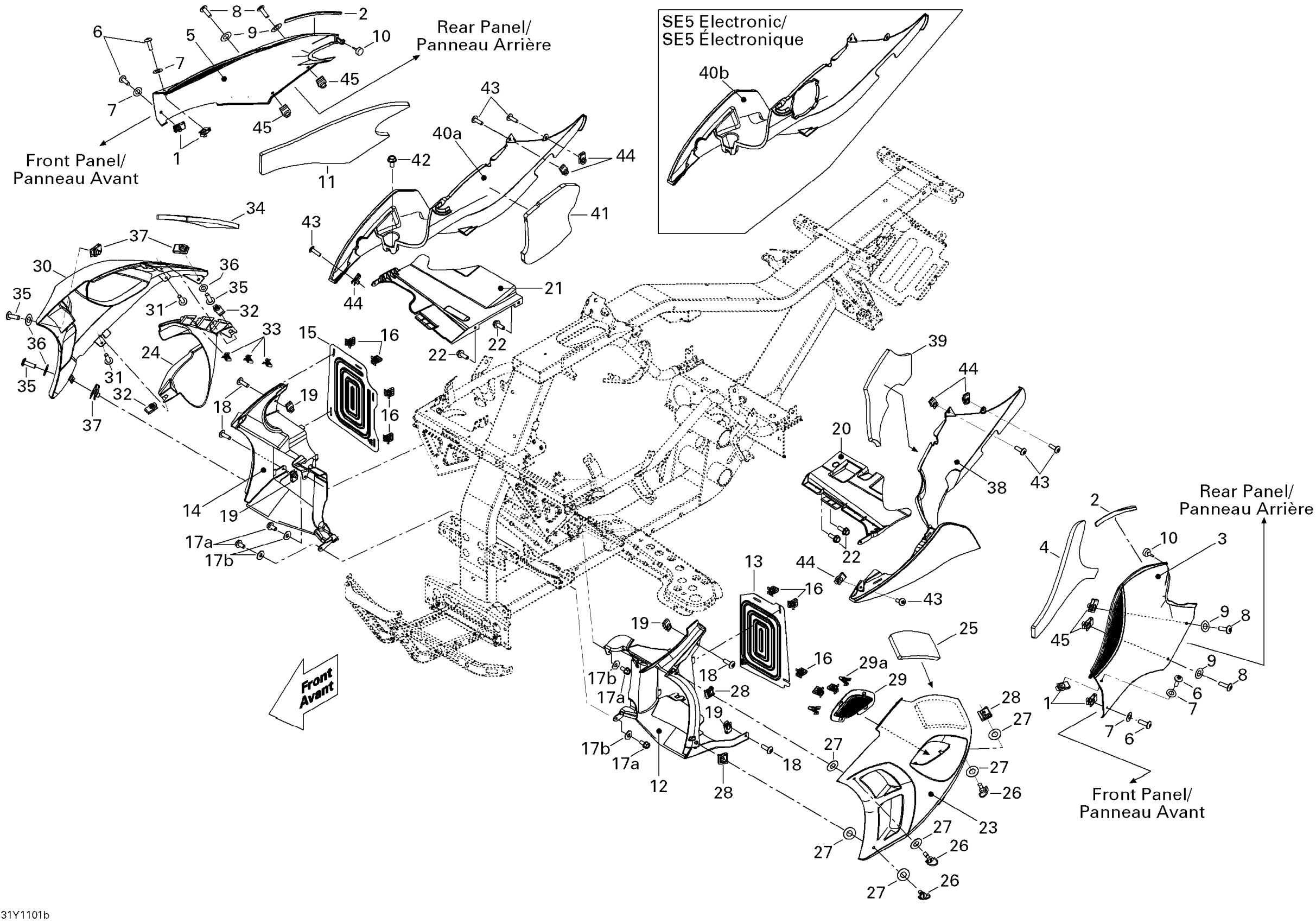

Can-Am Spyder RS Roadster SM5, 2011 Body And Accessories Side SM5 Diagram

#

Description
Price

1

Panel Nut M6 X 1.0

250100198

$1.73

2

Gasket, Neoprene 2000Mm Long

219704476

$12.64

3

LH UPPER SIDE PANEL, MAGNESIUM - Call your local BRP dealership | RS, Magnesium Model

705006260

Unavailable

3

LH UPPER SIDE PANEL, ALLOY ORANGE - Call your local BRP dealership | RS-S Alloy Orange-Black Model

705004626

Unavailable

4

LH UPPER PANEL FOAM - Call your local BRP dealership

518327600

Unavailable

5

RH UPPER SIDE PANEL, MAGNESIUM - Call your local BRP dealership | RS, Magnesium Model

705006255

Unavailable

5

RH Upper Side Panel, Alloy Orange | RS-S Alloy Orange-Black Model

705004627

Unavailable

6

Torx Truss Screw M6 X 20

250000350

$4.39

7

Plastic Washer

705003207

$0.80

8

Torx Truss Screw M6 X 20

250000350

$4.39

9

Plastic Washer

705003207

$0.80

10

Rubber Stopper

708000759

$3.61

11

RH Upper Side Panel Foam

518325518

$28.99

12

LH FLASHING CAP - Call your local BRP dealership

705005010

Unavailable

13

LH RADIATOR GRID - Call your local BRP dealership

705005011

Unavailable

14

RH RADIATOR HUB CAP - Call your local BRP dealership

705001486

Unavailable

15

RH RADIATOR GRILL - Call your local BRP dealership

705002518

Unavailable

16

Edge Clip

517302785

$0.70

17a

Hex. Flange Screw M6 X 16

210261650

$1.22

17b

Stainless Steel Flat Washer

234062670

$1.74

18

Torx Truss Screw M6 X 20

250000350

$4.39

19

Panel Nut M6 X 1.0

250100198

$1.73

20

LH DEFLECTOR PANEL - Call your local BRP dealership

705002331

Unavailable

21

RH DEFLECTOR PANEL - Call your local BRP dealership

705002332

Unavailable

22

Hex. Flange Screw M6 X 16

210261650

$1.22

23

LH SIDE PANEL, MAGNESIUM - Call your local BRP dealership | RS, Magnesium Model

705006246

Unavailable

23

LH SIDE PANEL, ALLOY ORANGE - Call your local BRP dealership | RS-S Alloy Orange-Black Model

705004645

Unavailable

24

HEAT DEFLECTOR - Call your local BRP dealership

705002831

Unavailable

25

LH SIDE PANEL FOAM - Call your local BRP dealership

518324749

$15.49

26

Quarter Turn Screw

705002649

$12.57

27

Washer

705002650

$2.68

28

Quarter Turn Nut

705002651

$3.84

29

LH LATERAL GRILL - Call your local BRP dealership

705002369

Unavailable

29a

Edge Clip

517302785

$0.70

30

PANEL_BODY RH B-321 - Call your local BRP dealership | RS, Magnesium Model

705006240

Unavailable

30

RH SIDE PANEL, ALLOY ORANGE - Call your local BRP dealership | RS-S Alloy Orange-Black Model

705004646

Unavailable

31

Torx Truss Screw M6 X 20

250000350

$4.39

32

Panel Nut M6 X 1.0

250100198

$1.73

33

Edge Clip

517302785

$0.70

34

RH SIDE PANEL FOAM - Call your local BRP dealership

518324750

Unavailable

35

Torx Truss Screw M6 X 20

250000350

$4.39

36

Plastic Washer

705003207

$0.80

37

Panel Nut M6 X 1.0

250100198

$1.73

38

LH ROCKER PANEL - Call your local BRP dealership

705006265

Unavailable

39

LH ROCKER PANEL FOAM - Call your local BRP dealership | Model-RS

518324753

Unavailable

40a

RH ROCKER PANEL - Call your local BRP dealership | 5 Speed

705006264

Unavailable

40b

Not Available As Spare Parts

XXX

Unavailable

41

RH ROCKER PANEL FOAM - Call your local BRP dealership

518324754

Unavailable

42

Hex. Flange Screw M6 X 12

210261250

$1.56

43

Torx Truss Screw M6 X 20

250000350

$4.39

44

Panel Nut M6 X 1.0

250100198

$1.73

45

Panel Nut M6 X 1.0

250100198

$1.73
