Description

Price

1

CLUTCH HOSE - Call your local BRP dealership

707000590

Unavailable

2

Banjo Bolt

414920500

$8.49

3

Washer

414920600

$1.52

4

Pressure And Temperature Sensor

707000995

$70.82

5

Hex. Flange Screw M6 X 20

207662084

$0.83

6

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

7

Foam Filter

707000586

$6.00

8

Clip

414227300

$1.45

9

Rubber Stopper

708000758

$9.37

10

Intake Support

707000756

$11.00

11

Hex. Flange Screw M6 X 12

207661244

$1.70

12

Solenoid Valve

707001596

$79.00

13

Hose

513033565

$29.20

14

Hose

513033565

$29.20

15

Check Valve

513033469

$25.32

16

Oetiker Clamp

293650042

$1.40

17

Torx Screw M5 X 20

250000724

$1.39

18

Hex. Flange Elastic Nut M5

233251414

$1.66

19

Oetiker Clamp

293650042

$1.40

20

Tie Wrap 142 mm

293750002

$0.88

20

Tie-Rap 180 mm

414115200

$0.09

20

Tie Wrap 368 mm

293750008

$0.85

21

ENGINE 991 - Call your local BRP dealership | Long Block 421000708

707000963

Unavailable

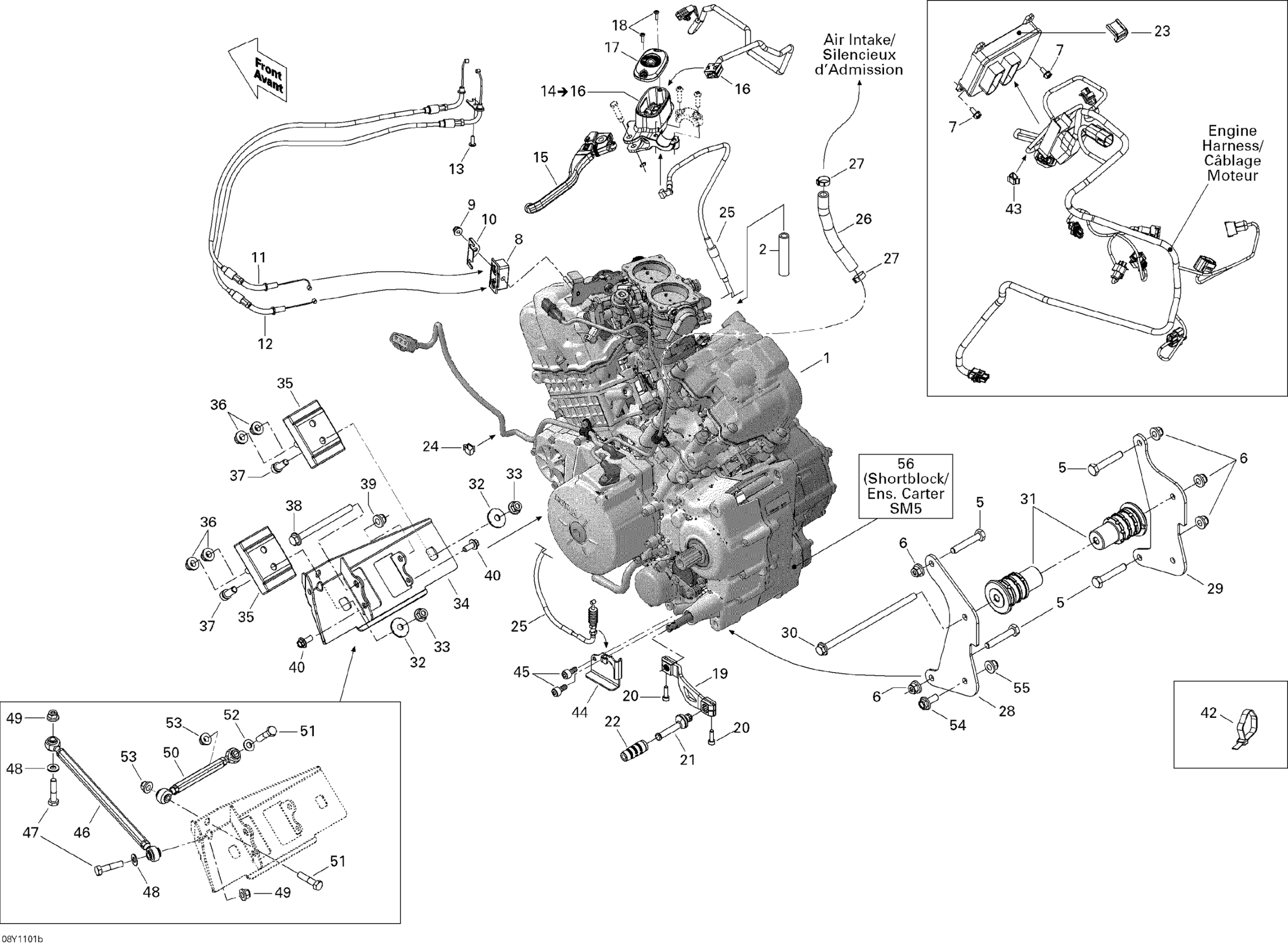

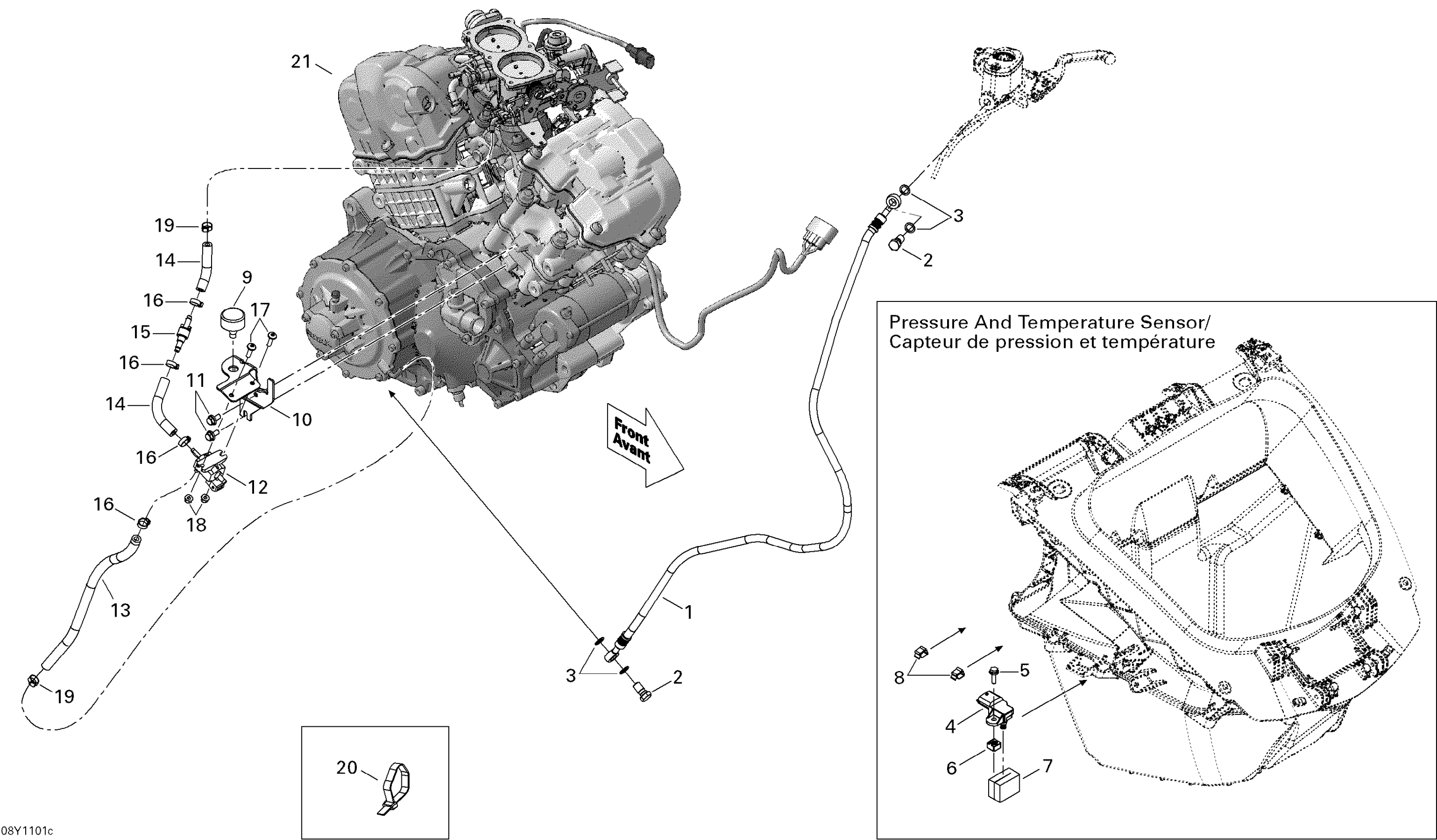

Can-Am Spyder RS Roadster SM5, 2011 Engine SM5 Diagram

CLUTCH HOSE - Call your local BRP dealership

Banjo Bolt

Washer

Pressure And Temperature Sensor

Hex. Flange Screw M6 X 20

M6 Nut Housing Ass'y | Includes 7r to 7r2

Foam Filter

Clip

Rubber Stopper

Intake Support

Hex. Flange Screw M6 X 12

Solenoid Valve

Hose

Hose

Check Valve

Oetiker Clamp

Torx Screw M5 X 20

Hex. Flange Elastic Nut M5

Oetiker Clamp

Tie Wrap 142 mm

Tie-Rap 180 mm

Tie Wrap 368 mm

ENGINE 991 - Call your local BRP dealership | Long Block 421000708
