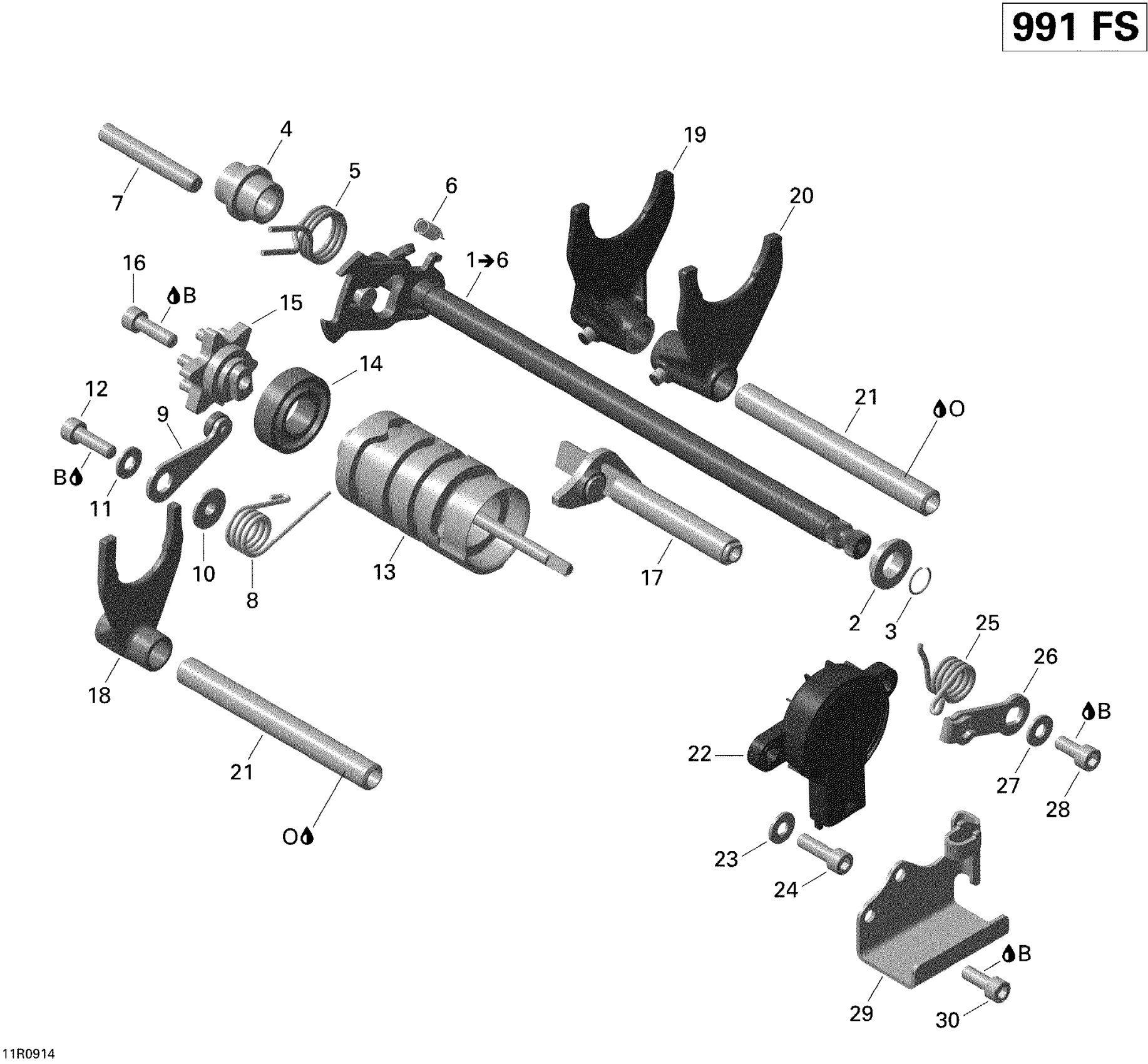

Can-Am Spyder RS Roadster SM5, 2010 Shifting System Diagram

#

Description
Price

1

Clutch Shaft Ass'y | Includes 1 to 6

420620595

$88.00

2

Step Ring

420227714

$12.00

3

Snap Ring

420245440

$3.00

4

Step Sleeve

420247940

$8.00

5

SPRING - Call your local BRP dealership

420239422

Unavailable

6

Spring

420239431

$8.00

7

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

8

Return Spring

420239248

$7.00

9

INDEXATION LEVER - Call your local BRP dealership

420248376

$28.00

10

Step Ring

420227716

$12.00

11

Flat Washer

224061121

$0.44

12

Allen Screw M6 X 20

420241939

$0.68

13

SHIFT DRUM - Call your local BRP dealership

420657026

Unavailable

14

Ball Bearing

420232625

$21.00

15

Indexation Shim

420258310

$36.00

16

Allen Screw M6 X 20

420241939

$0.68

17

Locking Shaft

420620706

$44.00

18

SHIFT FORK SHAFT - Call your local BRP dealership

420257690

Unavailable

19

Shift Fork Shaft

420258355

$83.00

20

Shift Fork Shaft

420258365

$83.00

21

Fork Spindle

420258383

$23.05

22

Angle Rotation Sensor

420266168

$182.28

23

Flat Washer

224061121

$0.44

24

Allen Screw M6 X 20

420241939

$0.68

25

SPRING - Call your local BRP dealership

420838410

Unavailable

26

Control Lever

420248275

$16.00

27

Flat Washer

224061121

$0.44

28

Allen Screw M6 X 14

420840391

$1.49

29

REVERSE CABLE SUPPORT - Call your local BRP dealership

420251565

Unavailable

30

Socket Head Screw M6 x 16

420241237

$1.85

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable
