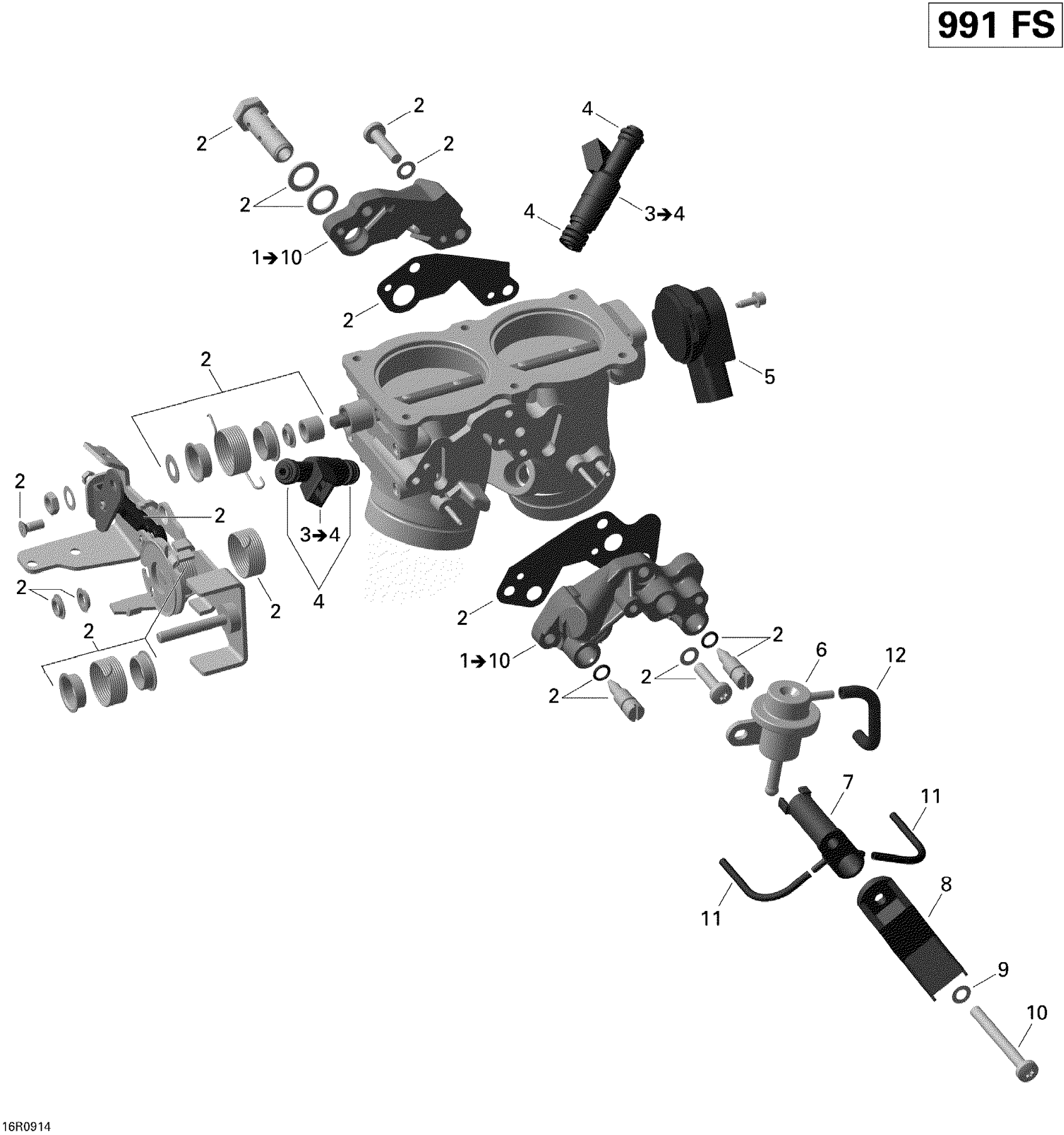

Can-Am Spyder RS Roadster SM5, 2010 Throttle Body Diagram

#

Description

Price

1

Throttle Body Ass'y | Includes 1 to 10

420296972

Unavailable

2

Venturi Repair Device Kit

420281241

$190.00

3

FUEL INJECTOR ASS'Y - Call your local BRP dealership | Includes 3 to 4

420874487

$115.00

4

O-Ring

420631220

$11.48

5

Potentiometer

420274030

$111.00

6

PRESSURE REGULATOR - Call your local BRP dealership

420274020

Unavailable

7

Adapter

420460290

$20.00

8

Pressure Sensor

270600040

$157.92

9

SPRING WASHER - Call your local BRP dealership

420845020

Unavailable

10

ALLEN SCREW M6 X 60 - Call your local BRP dealership

420240373

Unavailable

11

Hose, Sensor

420960118

$17.00

12

Hose, Sensor

420860662

$16.00
