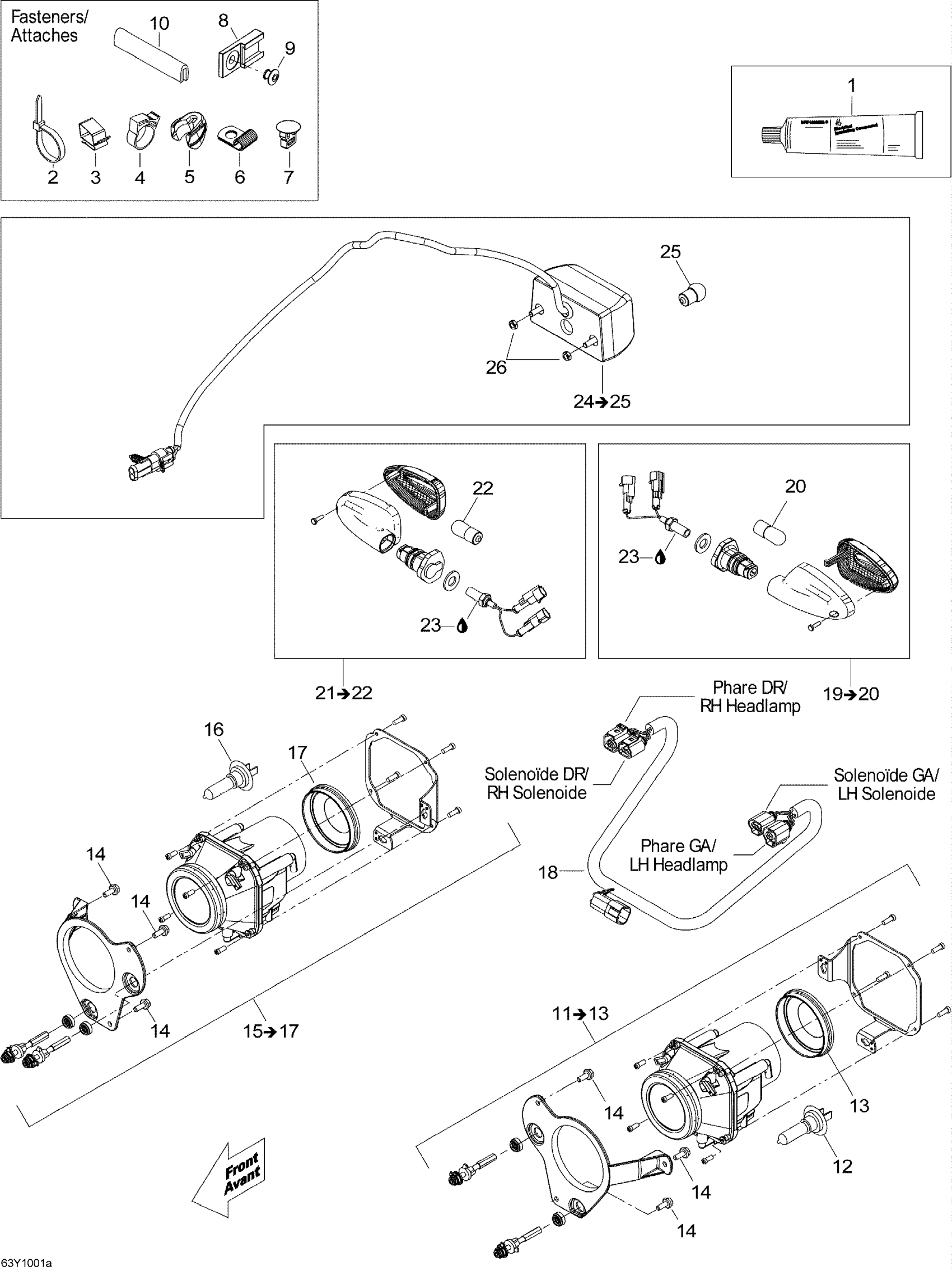

Can-Am Spyder RS Roadster SE5, Late Production 2010 Lighting System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

2

Tie-Rap 180 mm

414115200

$0.09

2

Tie-Rap 173 mm

293750009

$0.85

2

Tie Wrap 368 mm

293750008

$0.85

3

Clip

414227300

$1.40

4

Clamp

293650082

$3.33

5

WIRE BRACKET - Call your local BRP dealership

710001452

Unavailable

6

Bracket

415052400

$4.00

7

Tie Rap Mount

293750044

$2.49

8

Clip

270000141

$8.33

9

Pop Rivet 3/16"

390402400

$0.25

10

Trim 1000Mm Long

219704354

$14.30

11

BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710001039

Unavailable

12

Halogen Bulb

219400069

$19.99

13

Cap

219400070

$16.39

14

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

15

BI-HALOGEN BEAM - Call your local BRP dealership

710001112

Unavailable

16

Halogen Bulb

219400069

$19.99

17

Cap

219400070

$16.39

18

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

19

LH Rear Turn Signal Ass'y

710001290

$68.99

20

Bulb 12V/10W, Amber

219800039

Unavailable

21

RH Rear Turn Signal Ass'y

710001337

$68.99

22

Bulb 12V/10W, Amber

219800039

Unavailable

23

Loctite 243, 10 ml

293800060

$20.77

24

Licence Light | Includes 24 to 25

710001994

$74.99

25

Bulb 12V 10W | Not Shown

415129261

$2.46

26

Elastic Flange Nut M5

233251494

$1.74
