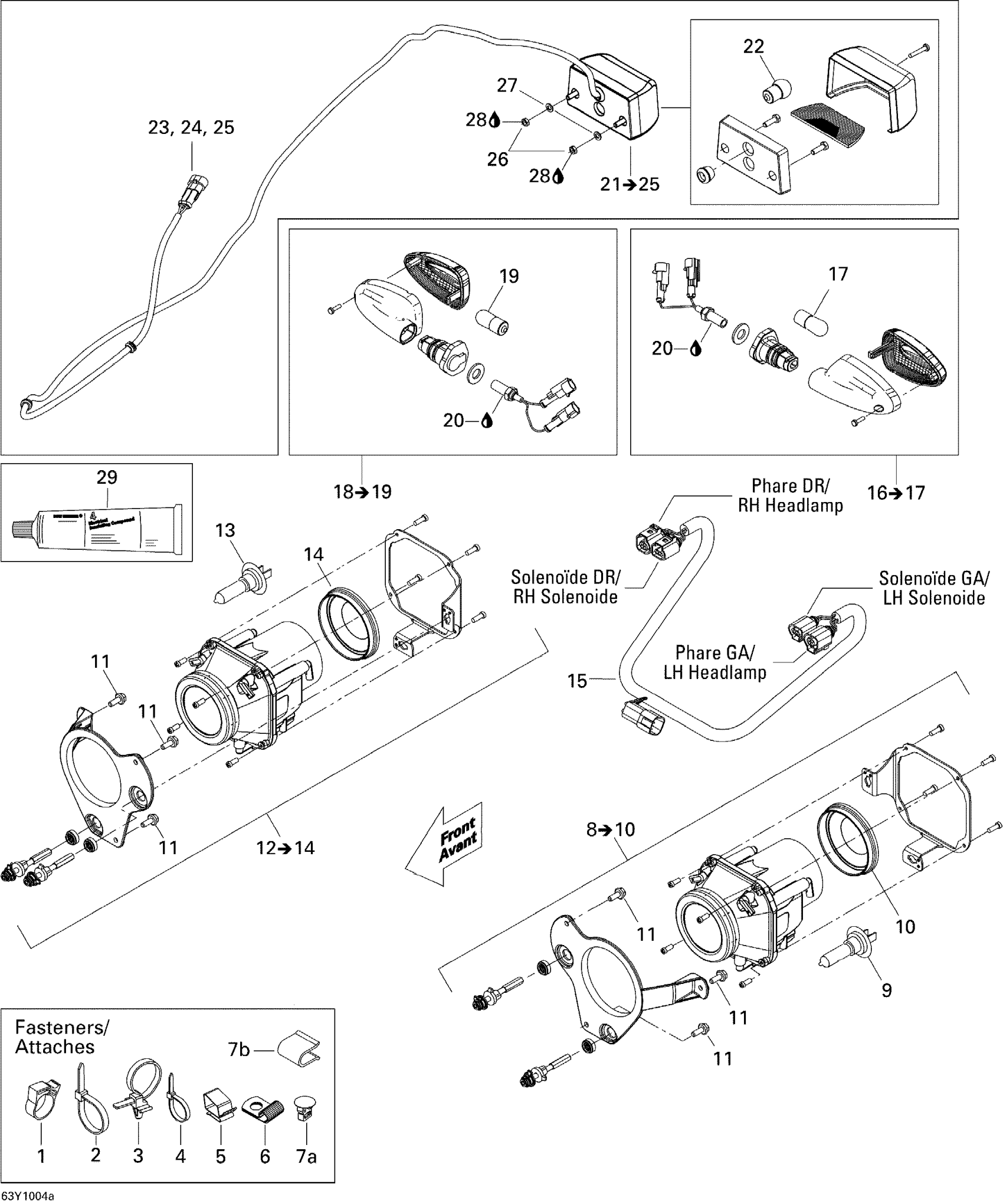

Can-Am Spyder RS Roadster SE5, 2010 Lighting System Diagram

#

Description
Price

1

Clamp

293650082

$3.33

2

Tie Wrap 368 mm

293750008

$0.85

3

Tie-Rap 173 mm

293750009

$0.85

4

Tie-Rap 180 mm

414115200

$0.09

5

Clip

414227300

$1.40

6

Bracket

415052400

$4.00

7a

Tie Rap Mount

293750044

$2.49

7b

Clip

414479100

$1.81

8

BI-HALOGEN BEAM ASS'Y - Call your local BRP dealership

710001039

Unavailable

9

Halogen Bulb

219400069

$19.99

10

Cap

219400070

$16.39

11

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

12

BI-HALOGEN BEAM - Call your local BRP dealership

710001112

Unavailable

13

Halogen Bulb

219400069

$19.99

14

Cap

219400070

$16.39

15

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

16

LH Rear Turn Signal Ass'y

710001290

$68.99

17

Bulb 12V/10W, Amber

219800039

Unavailable

18

RH Rear Turn Signal Ass'y

710001337

$68.99

19

Bulb 12V/10W, Amber

219800039

Unavailable

20

Loctite 243, 10 ml

293800060

$20.77

21

License Light Ass'y

710001291

$76.49

22

Bulb 12V 10W | Not Shown

415129261

$2.46

23

Wire Seal

278001013

$2.72

24

Male Terminal Housing, 2 Circuits

409209400

$14.52

25

Male Terminal | Europe Models

409012900

$3.12

26

Hex. Nut M5

232051600

$0.92

27

Flat Washer M5, Stainless

234051600

$0.64

28

Loctite 243, 10 ml

293800060

$20.77

29

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54
