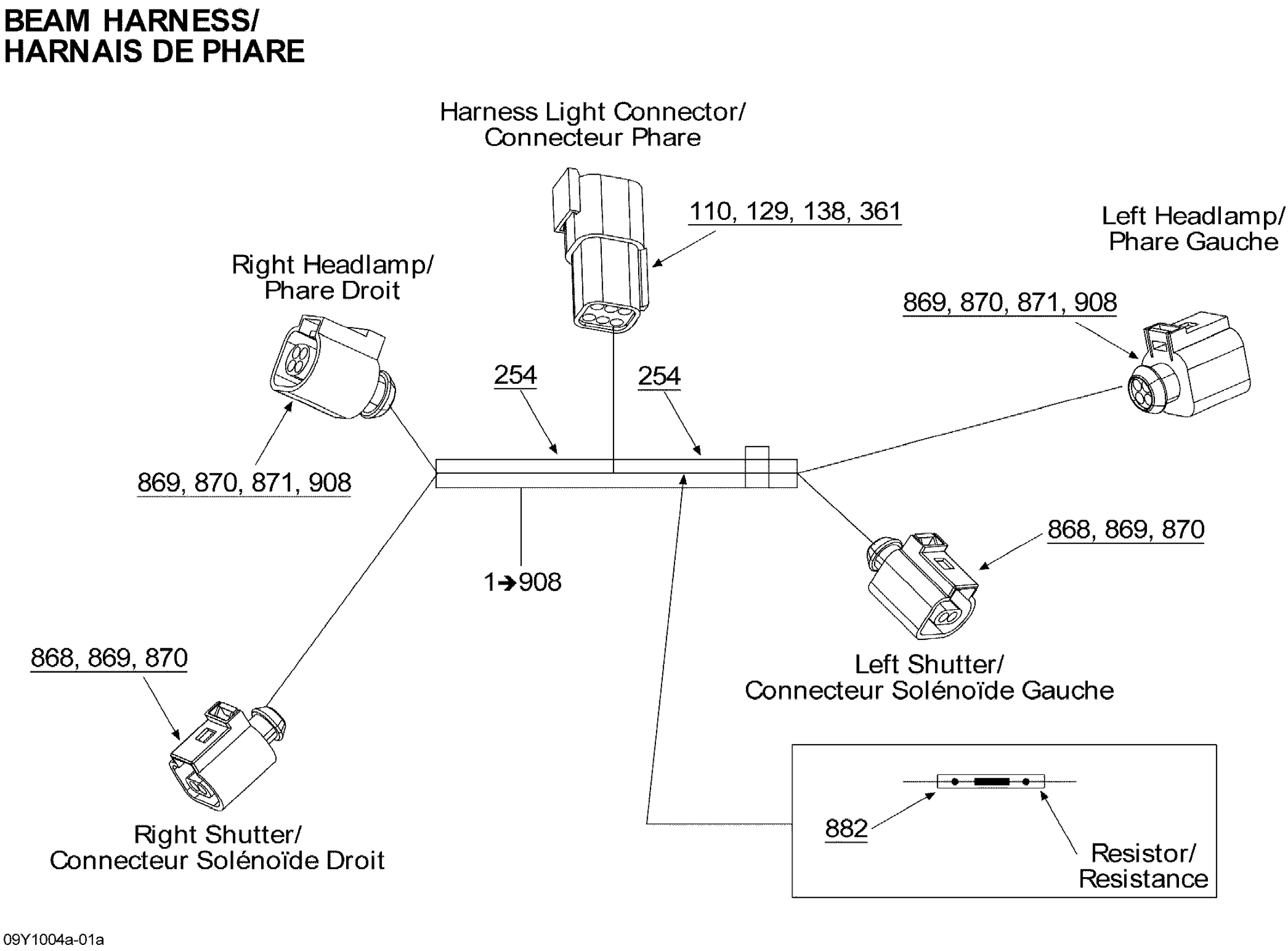

Can-Am Spyder RS Roadster SE5, 2010 Beam Harness Diagram

Description

Price

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

110

Male Terminal

278000631

$4.00

129

Female Lock, 6 Circuits

278000735

$2.93

138

Sealing Cap

293000052

$2.55

254

Was 409901700 Tubing (9 mm)

219704399

$77.58

361

Male Terminal Housing, 6 Circuits

515175668

$13.60

868

Housing

710001184

$9.95

869

FEMALE TERMINAL - Call your local BRP dealership | Model-North America

710001185

Unavailable

870

SEAL-WIRE - Call your local BRP dealership

710001186

Unavailable

871

HOUSING - Call your local BRP dealership | Model-North America

710001187

Unavailable

882

RESISTOR - Call your local BRP dealership

710001205

Unavailable

908

Plug

710001258

$3.29
