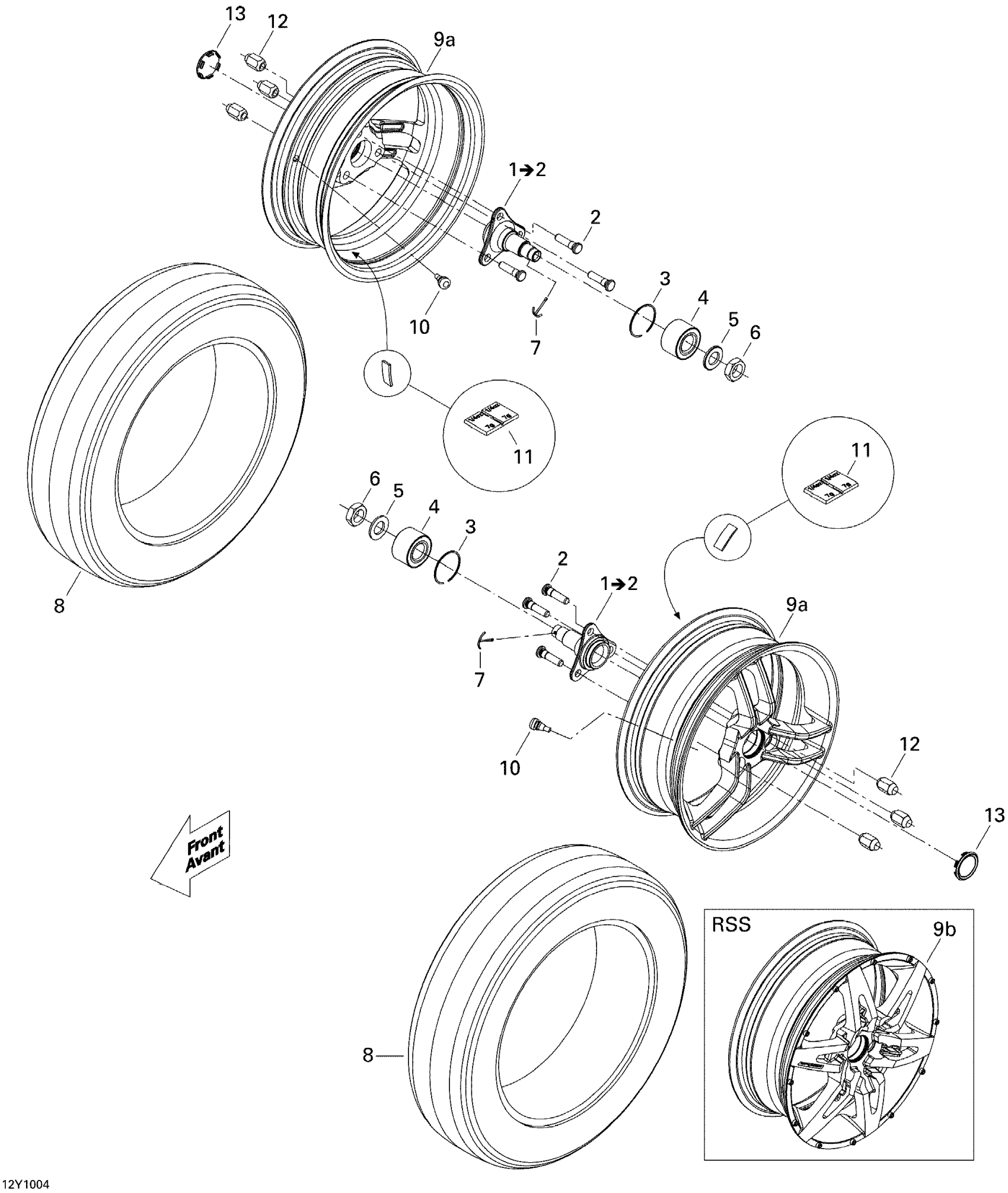

Can-Am Spyder RS Roadster SE5, 2010 Drive System, Front Diagram

#

Description

Price

1

Hub | Included 10 to 10b

706202435

$201.49

2

WHEEL STUD M12 X 1.5 - Call your local BRP dealership

250300024

Unavailable

3

Circlip

293370019

$4.68

4

Ball Bearing

293350150

$50.34

5

Flat Washer

250200094

$3.30

6

Hex. Jam Nut M24

250100103

$12.12

7

Cotter Pin

250400047

$2.32

8

Front Tire

706201411

$116.49

9a

FRONT RIM - Call your local BRP dealership

706200669

Unavailable

9b

FRONT RIM - Call your local BRP dealership | GS Black A19N Model

705400604

Unavailable

10

Rim Valve With Cap

705400193

$6.49

11

Self Adhesive Weight, 5G 20mm

705502106

$4.22

12

Chrome, Wheel Nut M12 X 1.5

250100154

$5.82

13

Black, Wheel Cap

705400388

$18.49
