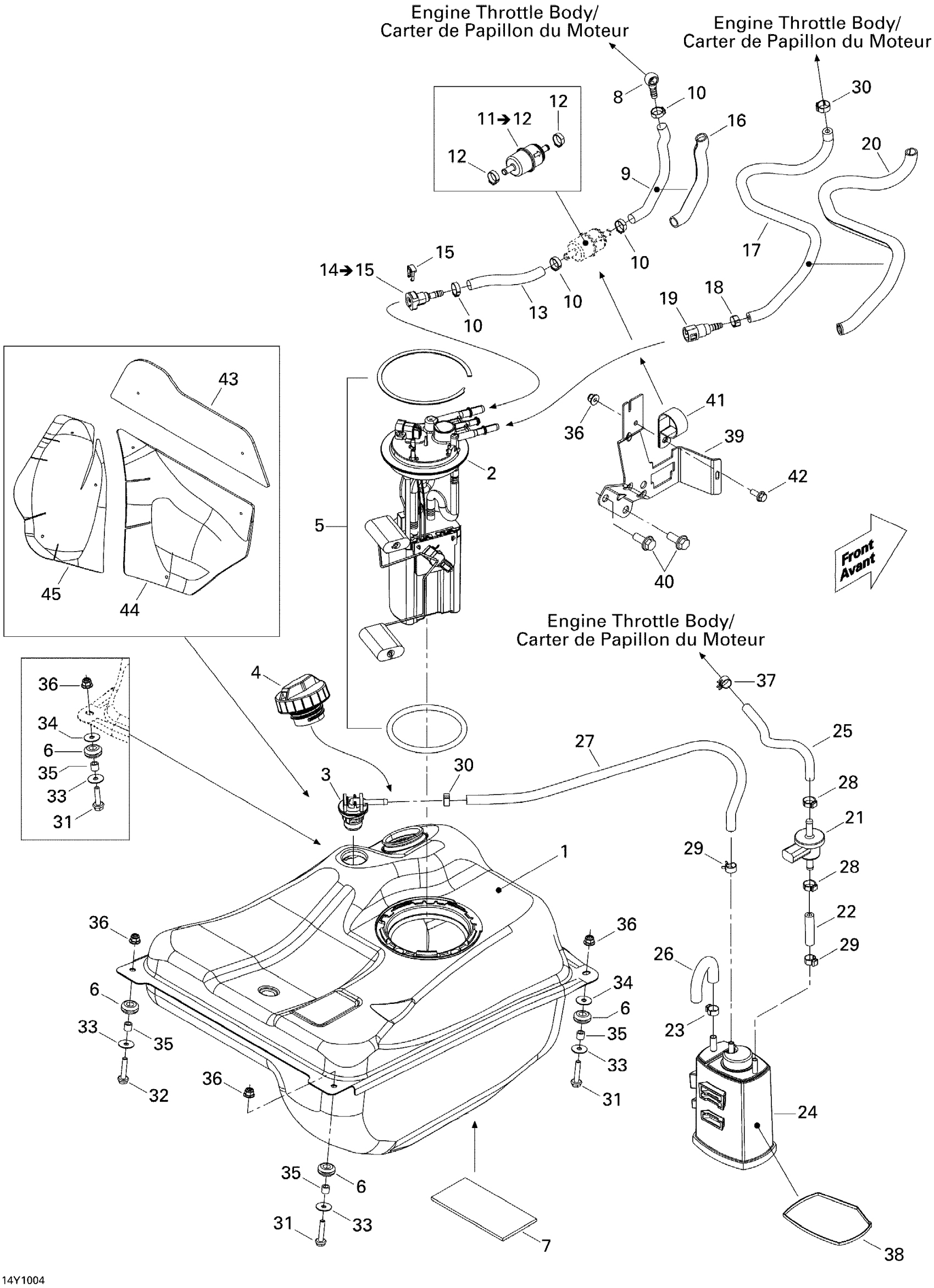

Can-Am Spyder RS Roadster SE5, 2010 Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000314

Unavailable

2

Pump Module

709000088

$625.49

3

Rollover Valve

709000413

$50.72

4

Fuel Cap

709000660

$15.49

5

Seal Kit

219800248

$38.99

6

Grommet

709000582

$4.25

7

Carpet

709000130

$14.49

8

BANJO FITTING - Call your local BRP dealership

709000137

$19.99

9

Fuel Line 7.9 mm, Meter

709000264

$15.99

10

Oetiker Clamp

293650125

$2.69

11

Fuel Filter Ass'y | Includes 40f to 40f2

219800056

$19.99

12

Oetiker Clamp

293650125

$2.69

13

Fuel Line 7.9 mm, Meter

709000265

$12.99

14

Female Quick Fitting Ass'y

709000125

$11.12

15

Locking Clip

513033135

$4.96

16

Tubing 16 Mm 1000Mm Long

219704408

$6.23

17

Hose

513033565

$28.33

18

Oetiker Clamp

293650046

$2.33

19

Quick Connect Pipe Fitting

293710192

$12.49

20

Tubing 16 Mm 1000Mm Long

219704408

$6.23

21

Bleed Valve

709000443

$65.64

22

HOSE - Call your local BRP dealership

709000254

Unavailable

23

Crimp Clamp, 15.3-706R

293650047

$2.64

24

Vapor Canister

709000090

$84.30

25

HOSE - Call your local BRP dealership

709000253

Unavailable

26

FORMED HOSE - Call your local BRP dealership

709000152

Unavailable

27

Hose

513033565

$28.33

28

Crimp Clamp, 15.3-706R

293650047

$2.64

29

Oetiker Gear Clamp

293650025

$2.46

30

Oetiker Gear Clamp

293650025

$2.46

31

Hex. Flange Screw M6 X 25

207662544

$0.53

32

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

33

Flat Washer

224060201

$1.12

34

Flat Washer

224060201

$1.12

35

Bushing

709000162

$12.64

36

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

37

Spring Clamp

414415200

$0.81

38

Tie Wrap 368 mm

293750008

$0.85

39

Support

709000150

Unavailable

40

Hex. Flange Screw M10 X 25

207602544

$1.33

41

Open Clamp

513033047

$4.73

42

Hex. Flange Screw M6 X 16

207661644

$0.61

43

Reflective Sheet

709000157

$20.99

44

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

45

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable
