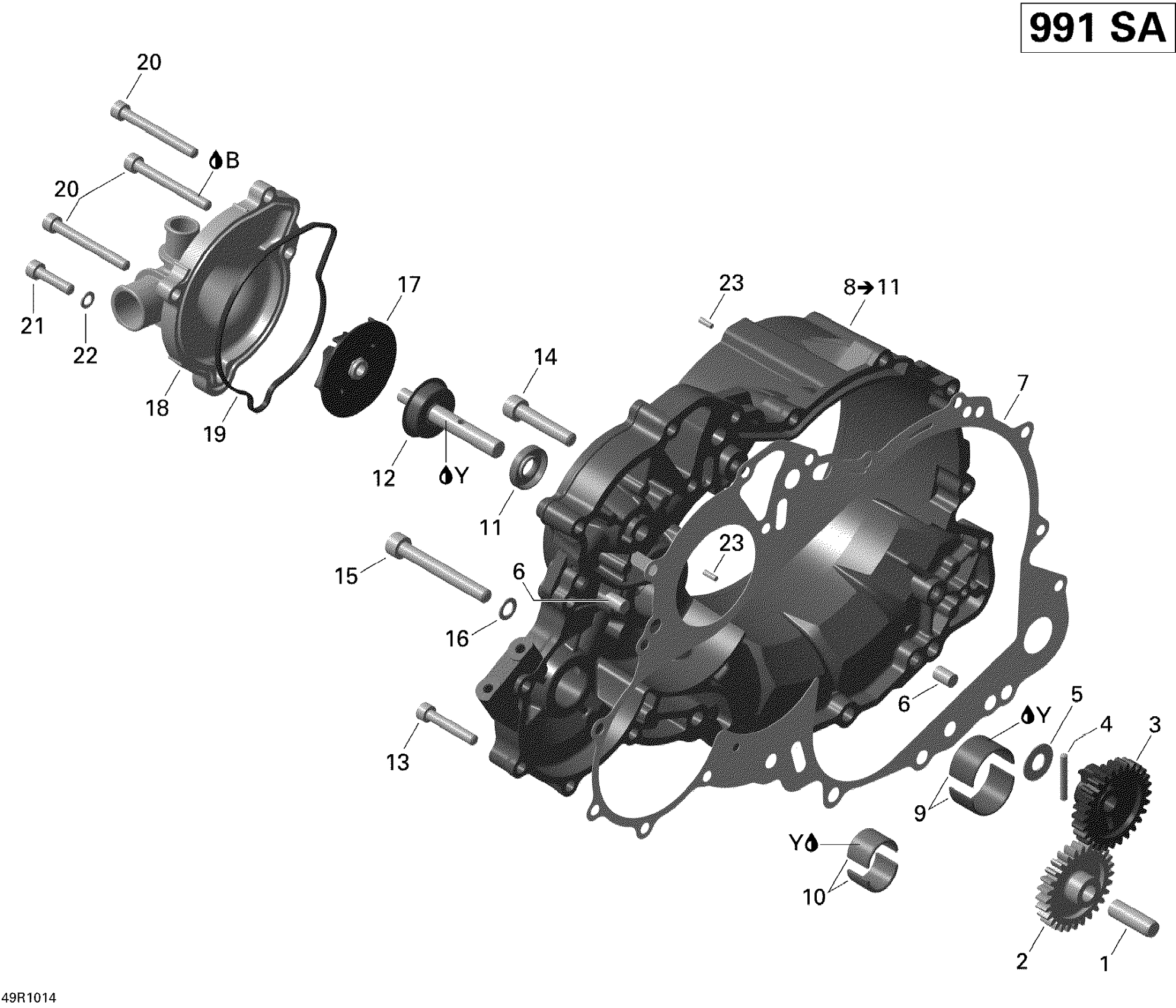

Can-Am Spyder RS Roadster SE5, 2010 Clutch Cover And Water Pump Diagram

#

Description
Price

1

PIN, M6 X 50 - Call your local BRP dealership

420929930

Unavailable

2

INTERMEDIATE GEAR WATER PUMP - Call your local BRP dealership

420634500

Unavailable

3

Gear Water Pump

420634490

$32.00

4

Needle Pin

420232431

$3.67

5

THRUST WASHER - Call your local BRP dealership

420227685

Unavailable

6

Center Pin 8 X 12

420632010

$3.07

7

Gasket

420650330

$17.00

8

Clutch Cover Ass'y | Includes 8 to 11

420610158

$328.00

9

Plain Bearing, Red

420233791

$24.00

9

Half Bushing

420233794

$29.00

9

Plain Bearing, Yellow

420233793

$26.00

10

Plain Bearing, Blue

420233780

$24.00

11

Oil Seal

420631460

$14.00

12

Water Pump Shaft

420220414

$50.00

13

Socket Head Screw M6 X 35 | Formula Deluxe 583. This part replaces 420241811.

420241814

$1.74

14

Allen Screw M8 X 40

420840682

$3.78

15

SOCKET HEAD SCREW M8 X 65 - Call your local BRP dealership

420841841

Unavailable

16

Sealing Ring

420950141

$1.64

17

Impeller

420222501

$19.20

18

WATER PUMP HOUSING - Call your local BRP dealership

420222514

$61.00

19

Seal Ring

420650240

$9.00

20

Allen Screw M6 X 55

420240332

$4.62

21

Socket Head Screw M6 X 25

205062544

$0.88

22

Seal Washer

420230415

$1.77

23

Needle

420232992

$4.60

B

Loctite 243, 10 ml

293800060

$20.77

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.82
