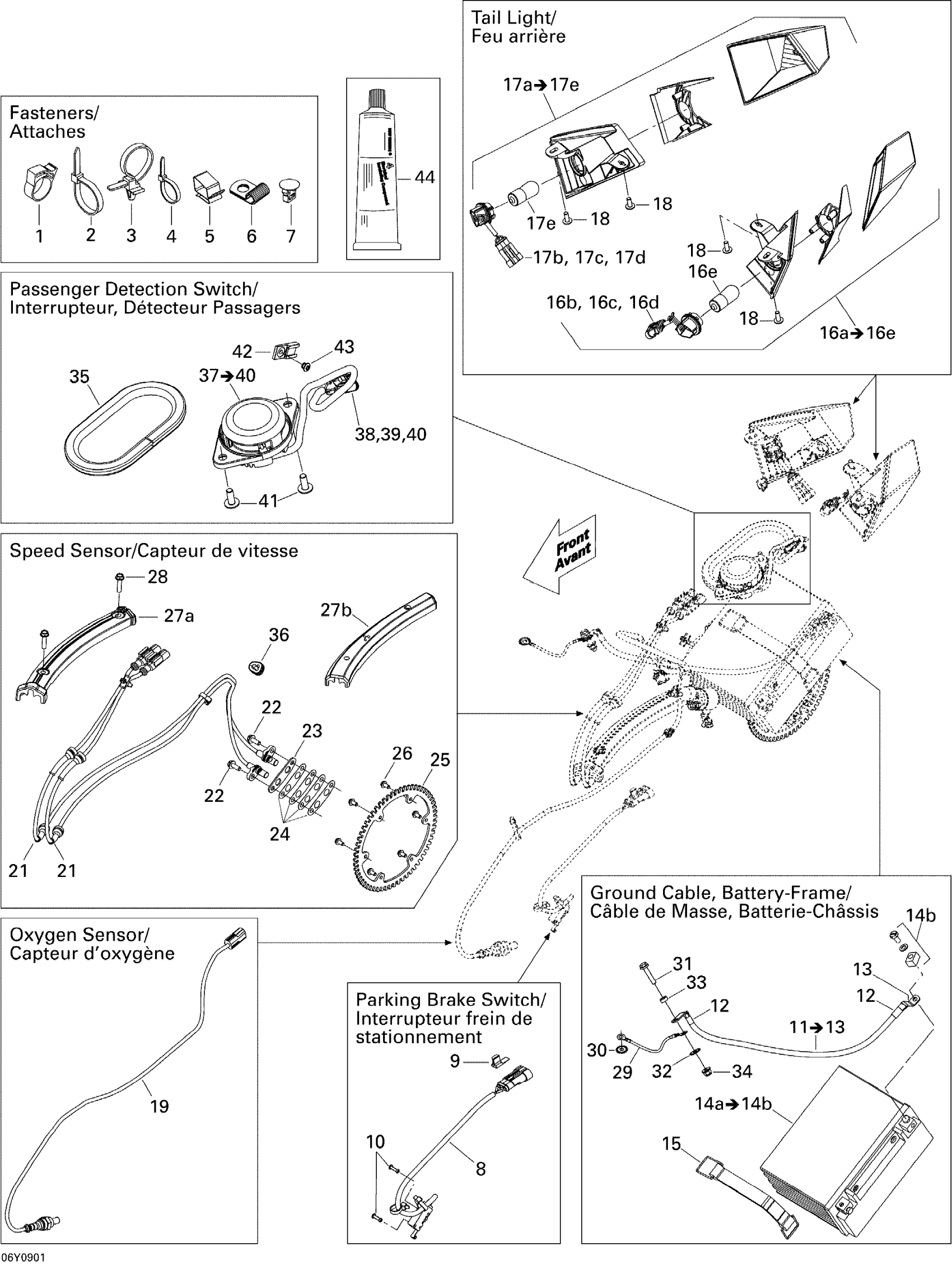

Can-Am Spyder GS Roadster with SE5 transmission, 2009 Electrical Accessories, Rear Diagram

#

Description
Price

1

Clamp

293650082

$3.33

2

Tie Wrap 368 mm

293750008

$0.85

3

Tie-Rap 173 mm

293750009

$0.85

4

Tie-Rap 180 mm

414115200

$0.09

5

Clip

414227300

$1.45

6

Bracket

415052400

$4.12

7

Tie Rap Mount

293750044

$2.00

8

Brake Pressure Switch Ass'y

710001379

$41.51

9

Clip

710001343

$7.09

10

Pop Rivet

293150150

$2.31

11

Ground Cable Ass'y, Battery/Frame | Includes 1 to 4

710000830

$23.05

12

Was 710000483 Heat Shrink Tubing

219704447

$74.58

13

Open Barrel | STD Models

710000518

$10.82

14a

Battery, 12 Volts, 21 Amperes

410922962

$160.52

14b

Battery Bolt Kit

250000282

$2.95

15

Battery Strap

515176044

$14.27

16a

LH Tail Light Ass'y

515176850

$61.99

16b

Housing

710000568

$10.83

16c

Male Terminal | Europe Models

409012900

$3.22

16d

Wire Seal

278001013

$2.72

16e

Bulb

520000758

$7.49

17a

RH Tail Light Ass'y

515176849

$61.99

17b

Housing

710000568

$10.83

17c

Male Terminal | Europe Models

409012900

$3.22

17d

Wire Seal

278001013

$2.72

17e

Bulb

520000758

$7.49

18

Torx Truss Screw M6 X 16

250000721

$1.39

19

Oxygen Sensor

707600557

$165.00

21

Speed Sensor

706202361

$165.00

22

Hexagonal Head Screw

210262050

$1.74

23

SHIM - Call your local BRP dealership

710001212

Unavailable

24

Shim

710001213

Unavailable

25

TONE WHEEL - Call your local BRP dealership

705600573

Unavailable

26

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

27a

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

27b

Swing Arm Cap | GS Black A19N Model

520000863

Unavailable

28

Hex. Flange Screw M6 X 30 | International

210263050

$1.63

29

GROUND HARNESS - Call your local BRP dealership

710001165

Unavailable

30

Lock Washer Serrated M6

250200041

$0.92

31

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

32

Lock Washer Serrated M6

250200041

$0.92

33

BUSHING - Call your local BRP dealership

293900054

Unavailable

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

35

Trim 1000Mm Long

219704354

$14.74

36

GROMMET - Call your local BRP dealership

293720080

Unavailable

37

Passenger Detection Switch

710008103

$72.28

38

CONNECTOR_FEMALE 3 CAVITIES - Call your local BRP dealership

278002375

Unavailable

39

Female Terminal

278000632

$1.69

40

Female Lock

409207200

$3.48

41

Torx Screw M6 X 16

250000755

$0.72

42

Clip

270000141

$8.33

43

Pop Rivet 3/16"

390402400

$0.25

44

Was 293550004 Dielectric Grease, 150 g

219704453

$37.66
