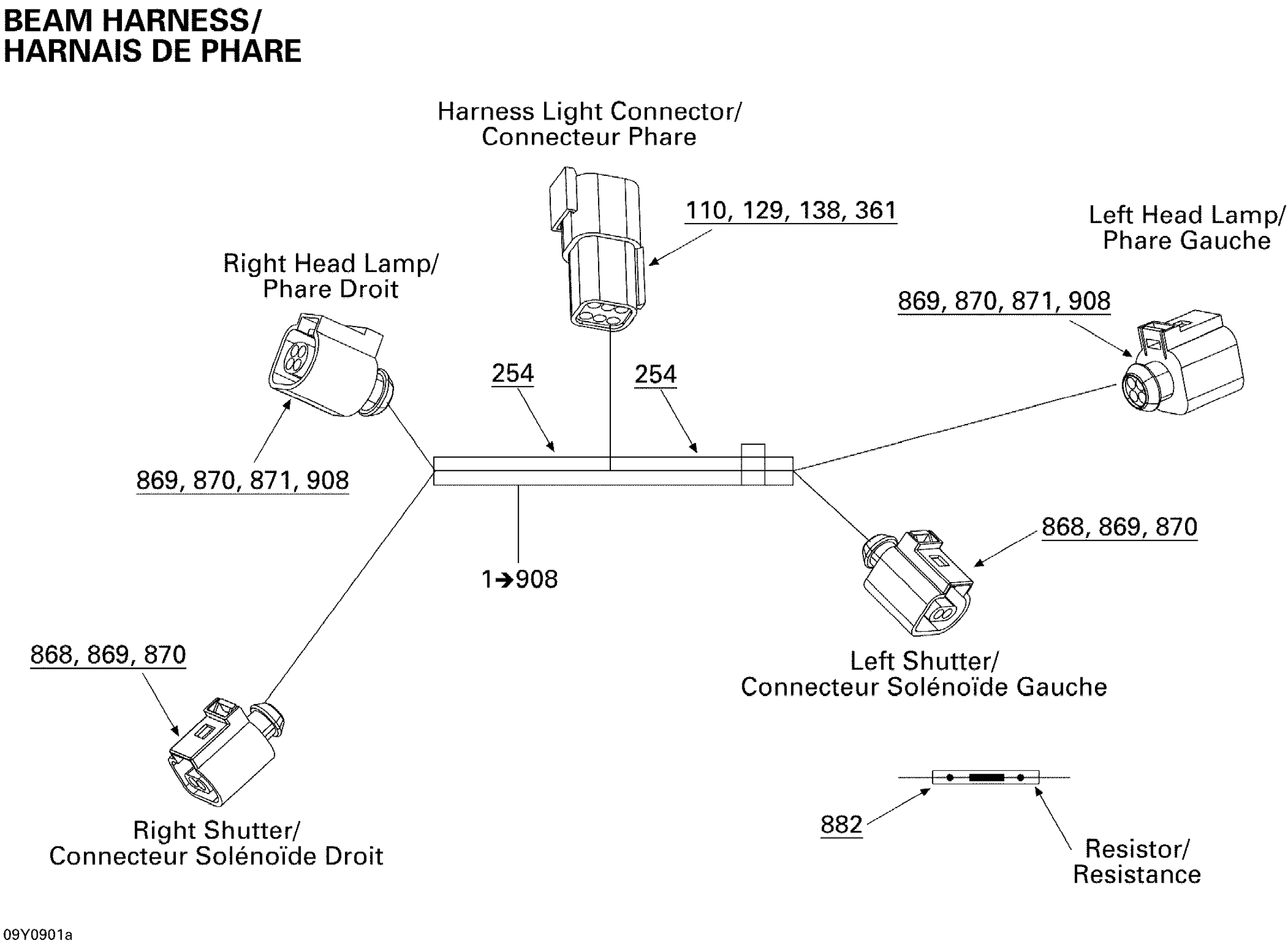

Can-Am Spyder GS Roadster with SE5 transmission, 2009 Beam Harness Diagram

Description

Price

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 908

710000792

Unavailable

110

Male Terminal

278000631

$4.49

129

Female Lock, 6 Circuits

278000735

$3.29

138

Sealing Cap

293000052

$3.29

254

Was 409901700 Tubing (9 mm)

219704399

$86.99

361

Male Terminal Housing, 6 Circuits

515175668

$16.99

868

Housing

710001184

$9.95

869

FEMALE TERMINAL - Call your local BRP dealership | Model-North America

710001185

Unavailable

870

SEAL-WIRE - Call your local BRP dealership

710001186

Unavailable

871

HOUSING - Call your local BRP dealership | Model-North America

710001187

Unavailable

882

RESISTOR - Call your local BRP dealership

710001205

Unavailable

908

Plug

710001258

$3.29
