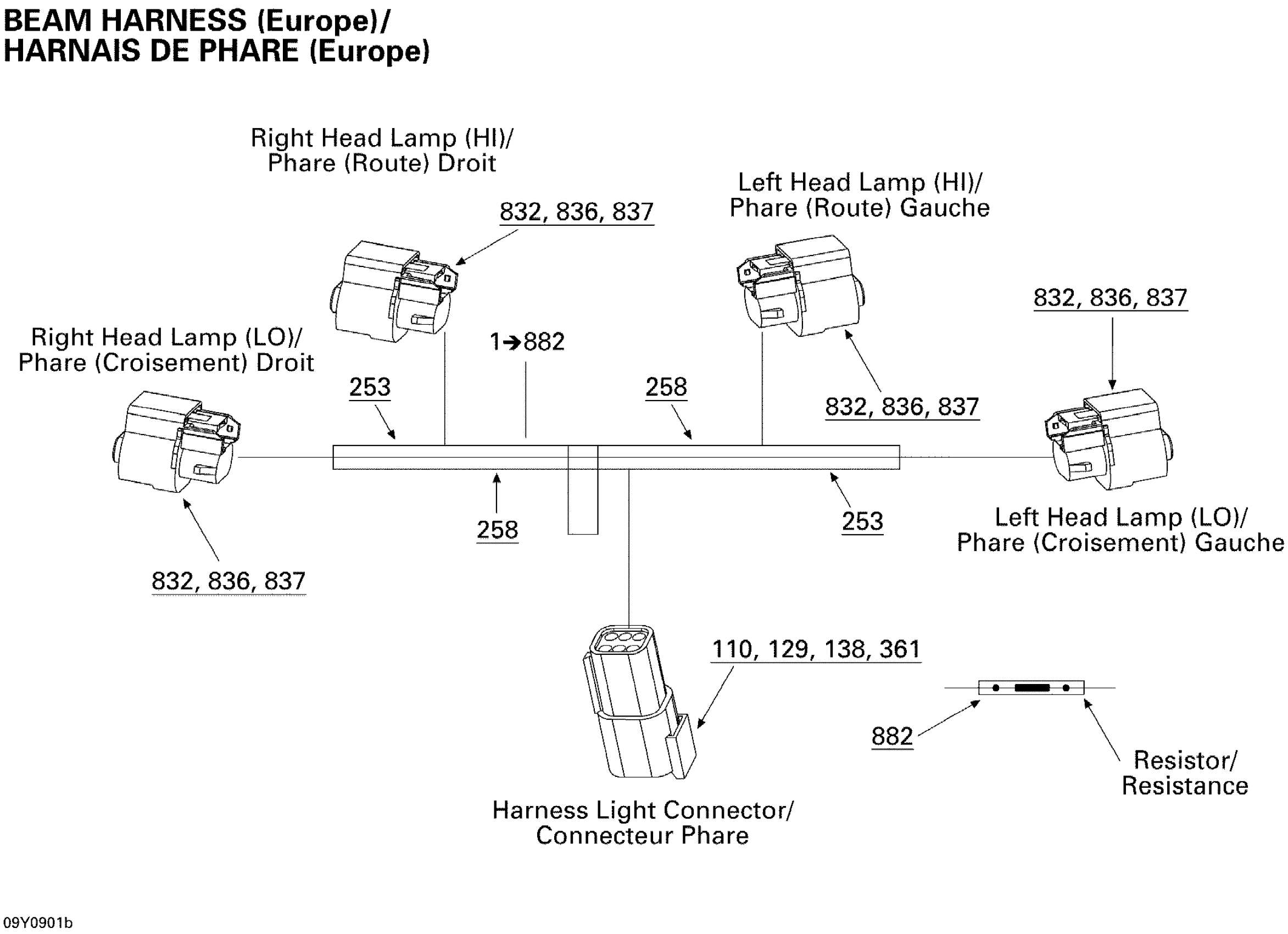

Can-Am Spyder GS Roadster with SE5 transmission, 2009 Beam Harness Europe Diagram

#

Description

Price

1

BEAM HARNESS ASS'Y - Call your local BRP dealership | Includes 1 to 882

710000793

Unavailable

110

Male Terminal

278000631

$4.49

129

Female Lock, 6 Circuits

278000735

$3.29

138

Sealing Cap

293000052

$3.29

253

Tubing 6 Mm 3000Mm Long

219704425

$13.99

258

Tubing 10 MM 1000MM Long

219704407

$2.89

361

Male Terminal Housing, 6 Circuits

515175668

$16.99

832

TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership

710001142

Unavailable

836

FEMALE TERMINAL - Call your local BRP dealership | Model-Australia, Brezil, Europe

710001143

Unavailable

837

Seal Wire | Model-Australia, Brezil, Europe

710001144

$4.55

882

RESISTOR - Call your local BRP dealership

710001205

Unavailable
