Description

Price

1

Clutch Release Cover

420611512

$70.00

2

Nozzle

420262050

$11.00

3

Pressure Retaining Valve

420656374

$18.00

4

Spring

420939481

$4.65

5

Gasket Ring

420430624

$1.51

6

Screw Plug

420242151

$13.00

7

Socket Head Screw M5 X 25

420240187

$5.52

8

Gasket

420651242

$16.00

9

Gasket Ring

420430624

$1.51

10

BANJO BOLT - Call your local BRP dealership

420640848

$16.00

11

Oil Line Ass'y

420656210

$85.00

12

Cylinder Sleeve

420656520

$46.00

13

O-Ring

420950981

$12.00

14

Compression Spring

420238770

$10.00

15

Hydraulic Piston

420656125

$58.00

16

Piston Lining

420431350

$20.00

17

Piston Lining

420431360

$20.00

18

Retaining Ring

420245230

$14.00

19

Nut M10 X 1

420242641

$18.00

20

O-Ring

420631890

$4.24

21

Cover, Hydraulic Piston

420626205

$20.00

22

Torx Flange Screw M6 X 20

420440207

$2.54

B

Loctite 243, 10 ml

293800060

$20.77

O

Not Available As Spare Part - Friction Washer

Unavailable

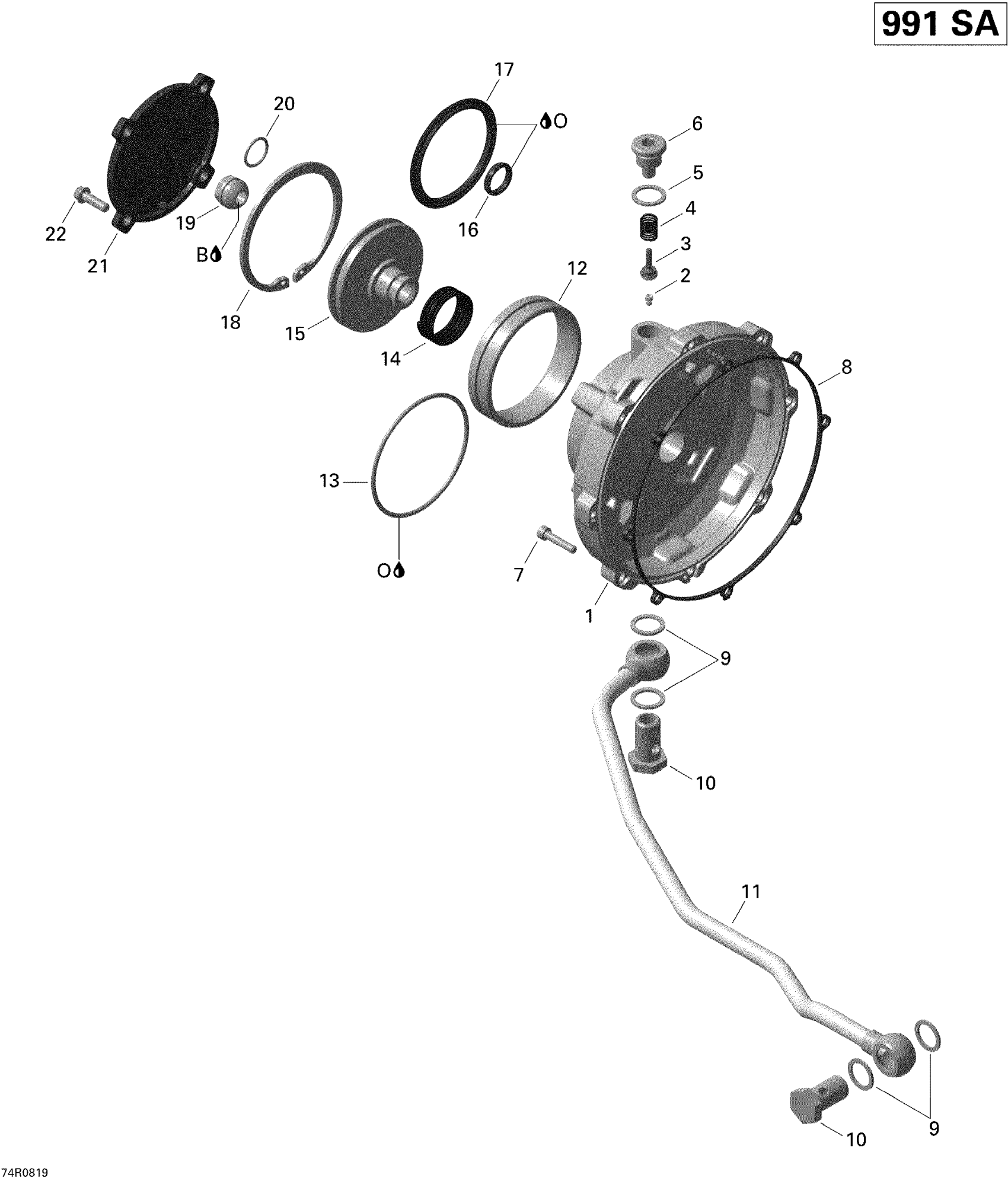

Can-Am Spyder GS 990 Semi-Automatic, 2008 Clutch Release Cover Diagram

Clutch Release Cover

Nozzle

Pressure Retaining Valve

Spring

Gasket Ring

Screw Plug

Socket Head Screw M5 X 25

Gasket

Gasket Ring

BANJO BOLT - Call your local BRP dealership

Oil Line Ass'y

Cylinder Sleeve

O-Ring

Compression Spring

Hydraulic Piston

Piston Lining

Piston Lining

Retaining Ring

Nut M10 X 1

O-Ring

Cover, Hydraulic Piston

Torx Flange Screw M6 X 20

Loctite 243, 10 ml

Not Available As Spare Part - Friction Washer
