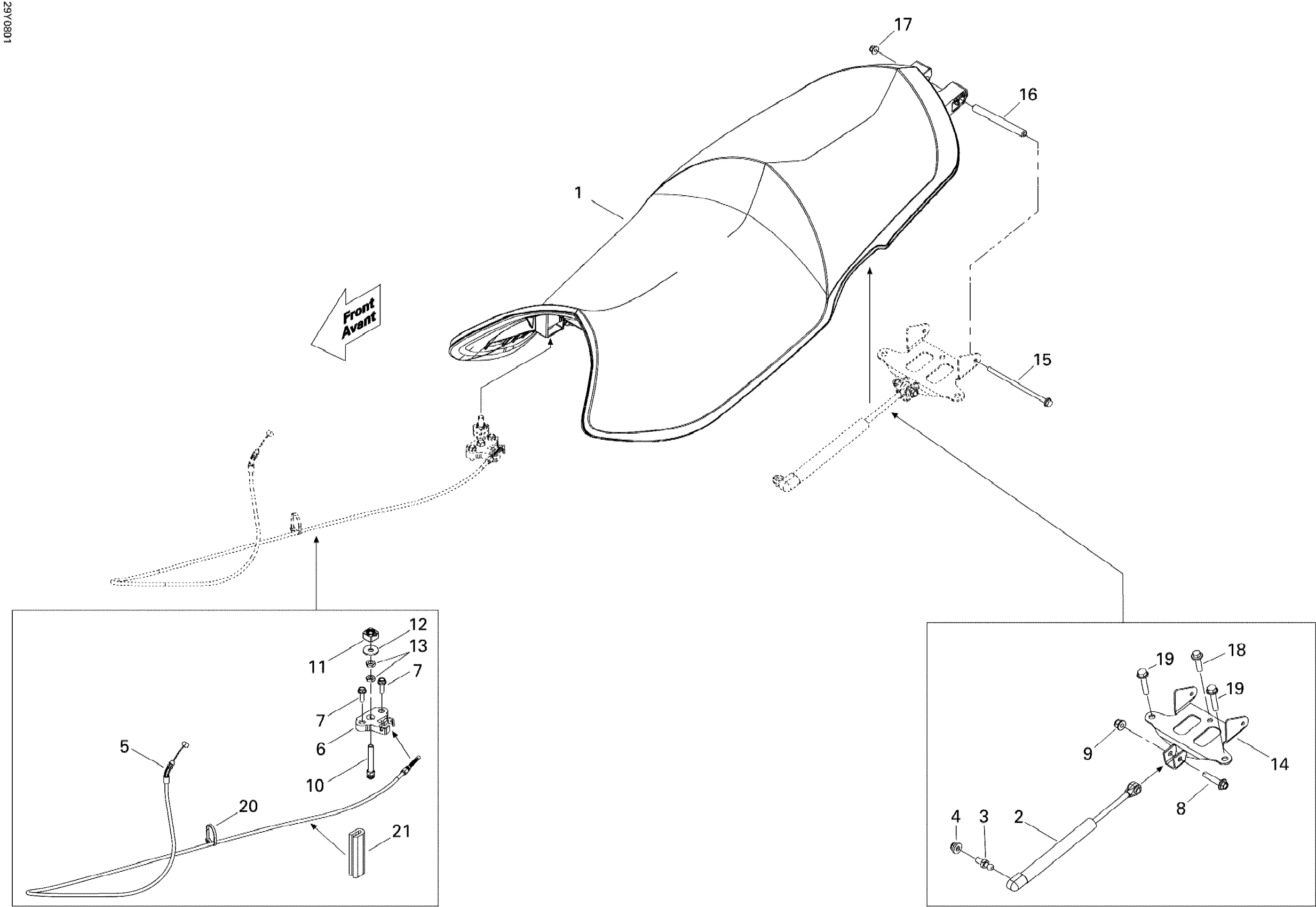

Can-Am Spyder GS 990 5-Speed, 2008 Seat Diagram

#

Description
Price

1

SEAT ASS'Y - Call your local BRP dealership

708001571

$549.99

2

Gaz Shock

708000479

$38.99

3

Ball Head Stud

250300016

$11.69

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Seat Cable

708001743

$53.99

6

Latch

705007379

$28.99

7

Hexagonal Head Screw

210262050

$1.74

8

Hex. Flange Screw M8 X 40

207684044

$1.25

9

Hex. Flange Elastic Nut M8

233281414

$1.14

10

Lug

705002223

$25.99

11

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

12

Flat Washer 8 mm

234082410

$1.11

13

Hex. Jam Nut M8

232180600

$0.56

14

PIVOT PLATE - Call your local BRP dealership

708001770

Unavailable

15

Hex. Flange Screw M6 X 130

230663084

$2.77

16

SPACER BUSHING - Call your local BRP dealership

708000509

Unavailable

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Hex. Flange Screw M8 X 30

207683034

$4.15

19

Hex. Flange Screw M8 X 40, Scotch Grip

207584044

$1.07

20

Tie-Rap 180 mm

414115200

$0.09

21

Trim 1000Mm Long

219704354

$14.30
