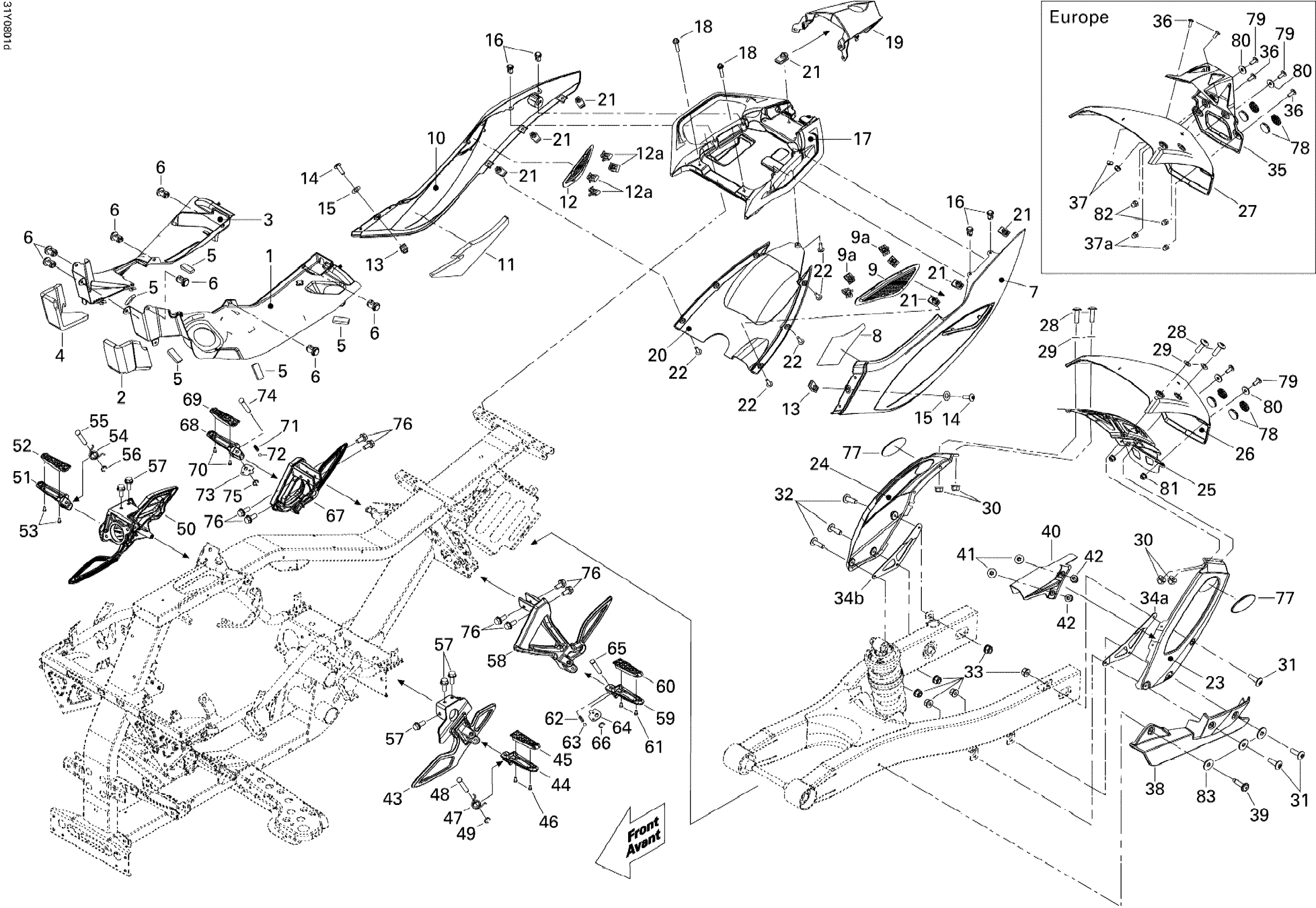

Can-Am Spyder GS 990 5-Speed, 2008 Body And Accessories Rear Diagram

#

Description
Price

1

TANK COVER LH - Call your local BRP dealership

705006275

Unavailable

2

LH FOAM - Call your local BRP dealership

705002920

Unavailable

3

RH GAS TANK COVER - Call your local BRP dealership

705002546

Unavailable

4

RH DEFLECTOR FOAM - Call your local BRP dealership

705002921

Unavailable

5

Neoprene Seal (1PAC=3M)

219704364

$22.72

6

Tuflok Plastic Rivet

293150230

$1.21

7

PANEL_BODY REAR L B-160 - Call your local BRP dealership

705008937

Unavailable

8

LH Heat Reflective Sheet

705002508

$11.49

9

LH REAR GRILL - Call your local BRP dealership | Model-RS

705001542

Unavailable

9a

Edge Clip

517302785

$0.70

10

PANEL_BODY REAR R B-160 - Call your local BRP dealership

705008938

Unavailable

11

BLACK RH REAR PANEL FOAM - Call your local BRP dealership

705002509

Unavailable

12

RH REAR GRILL - Call your local BRP dealership | Model-RS

705001544

Unavailable

12a

Edge Clip

517302785

$0.70

13

Panel Nut M6 X 1.0

250100198

$1.73

14

Torx Truss Screw M6 X 20

250000350

$4.39

15

Plastic Washer

705003207

$0.80

16

Tuflok Plastic Rivet

293150230

$1.21

17

Passenger Handle

705009315

$163.99

18

Hex. Flange Screw, Scotch Grip

207584034

$2.00

19

REAR TIP, FULL MOON - Call your local BRP dealership | Full Moon

705002387

Unavailable

19

Rear Tip, Yellow | Yellow

705002563

Unavailable

19

REAR TIP, RED - Call your local BRP dealership | Red

705003193

Unavailable

20

UNDER TAIL COVER - Call your local BRP dealership

705001551

Unavailable

21

Panel Nut M6 X 1.0

250100198

$1.73

22

Torx Truss Screw M6 X 20

250000350

$4.39

23

LH Rear Fender Support

705006084

$109.99

24

RH REAR FENDER SUPPORT - Call your local BRP dealership

705006085

Unavailable

25

CENTRAL REAR FENDER SUPPORT - Call your local BRP dealership

705003031

Unavailable

26

Rear Fender, Full Moon | Full Moon

705002535

Unavailable

26

REAR FENDER, YELLOW - Call your local BRP dealership | Yellow

705002538

Unavailable

26

Rear Fender, Red | Red

705003184

Unavailable

27

REAR FENDER, FULL MOON - Call your local BRP dealership | Full Moon, Europe

705002536

Unavailable

27

REAR FENDER, YELLOW - Call your local BRP dealership | Yellow, Europe

705002540

Unavailable

27

Rear Fender, Red | Red, Europe

705003185

Unavailable

28

Torx Truss Screw M6 X 20

250000303

$7.27

29

Plastic Washer

705003207

$0.80

30

Hex. Flange Elastic Nut M6

233261494

$1.26

31

Torx Truss Screw M6 X 20

250000350

$4.39

32

Torx Truss Screw M6 X 20

250000350

$4.39

33

Hex. Flange Elastic Nut M6

233261494

$1.26

34a

LH REINFORCEMENT PLATE - Call your local BRP dealership

705002980

$29.99

34b

RH Reinforcement Plate

705002981

$33.99

35

LICENCE PLATE SUPPORT - Call your local BRP dealership | Model-Australie, Brezil, Europe

705002367

Unavailable

36

Torx Truss Screw M6 X 16

250000348

$1.74

37

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.48

37a

Domed Nut M6

232361493

$1.77

38

Lower Belt Guard

705002092

$48.99

39

Torx Screw M6 X 25 | XT Models

250000728

$3.61

40

UPPER BELT GUARD - Call your local BRP dealership

705007213

$44.99

41

Torx Truss Screw M6 X 10

250000349

$7.09

42

Domed Nut M6

232361493

$1.77

43

LH FRONT FOOT PEG SUPPORT - Call your local BRP dealership

705003048

Unavailable

44

LH Front Foot Peg

705003049

Unavailable

45

Rubber Pad | RS STD

705002359

$24.99

46

Allen Plastite Screw #12

250000099

$1.67

47

Spring | RS STD

705001701

$14.99

48

Retainer Pin | RS STD

705001702

$18.49

49

Circlip

705600272

$7.21

50

RH FRONT FOOT PEG SUPPORT - Call your local BRP dealership

705003050

Unavailable

51

RH FRONT FOOT PEG - Call your local BRP dealership

705003051

Unavailable

52

Rubber Pad | RS STD

705002359

$24.99

53

Allen Plastite Screw #12

250000099

$1.67

54

Spring | RS STD

705001701

$14.99

55

Retainer Pin | RS STD

705001702

$18.49

56

Circlip

705600272

$7.21

57

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

58

LH Rear Foot Peg Support

705003052

Unavailable

59

LH Rear Foot Peg

705003053

Unavailable

60

Rubber Pad | RS STD

705002359

$24.99

61

Allen Plastite Screw #12

250000099

$1.67

62

Spring | RS STD

705001704

$12.99

63

Ball

705001705

$6.39

64

Indexation Plate | RS STD

705001706

$11.99

65

Retainer Pin | RS STD

705001702

$18.49

66

Circlip

705600272

$7.21

67

RH REAR FOOT PEG SUPPORT - Call your local BRP dealership

705003054

Unavailable

68

RH REAR FOOT PEG - Call your local BRP dealership

705003055

Unavailable

69

Rubber Pad | RS STD

705002359

$24.99

70

Allen Plastite Screw #12

250000099

$1.67

71

Spring | RS STD

705001704

$12.99

72

Ball

705001705

$6.39

73

Indexation Plate | RS STD

705001706

$11.99

74

Retainer Pin | RS STD

705001702

$18.49

75

Circlip

705600272

$7.21

76

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.04

77

RED LATERAL REFLECTOR - Call your local BRP dealership | Model-North America

219400236

Unavailable

77

GIVI REFLECTOR - Call your local BRP dealership | Model-Australie, Brezil, Europe

219400237

Unavailable

78

Dual Lock Velcro Washer 3/4"

293740028

$4.19

79

Torx Truss Screw M6 X 20

250000303

$7.27

80

Flat Washer M6, Stainless

234062600

$0.64

81

Hex. Flange Elastic Nut M6

233261494

$1.26

82

Domed Nut M6

232361493

$1.77

83

Stainless Steel Flat Washer

234062670

$1.74
