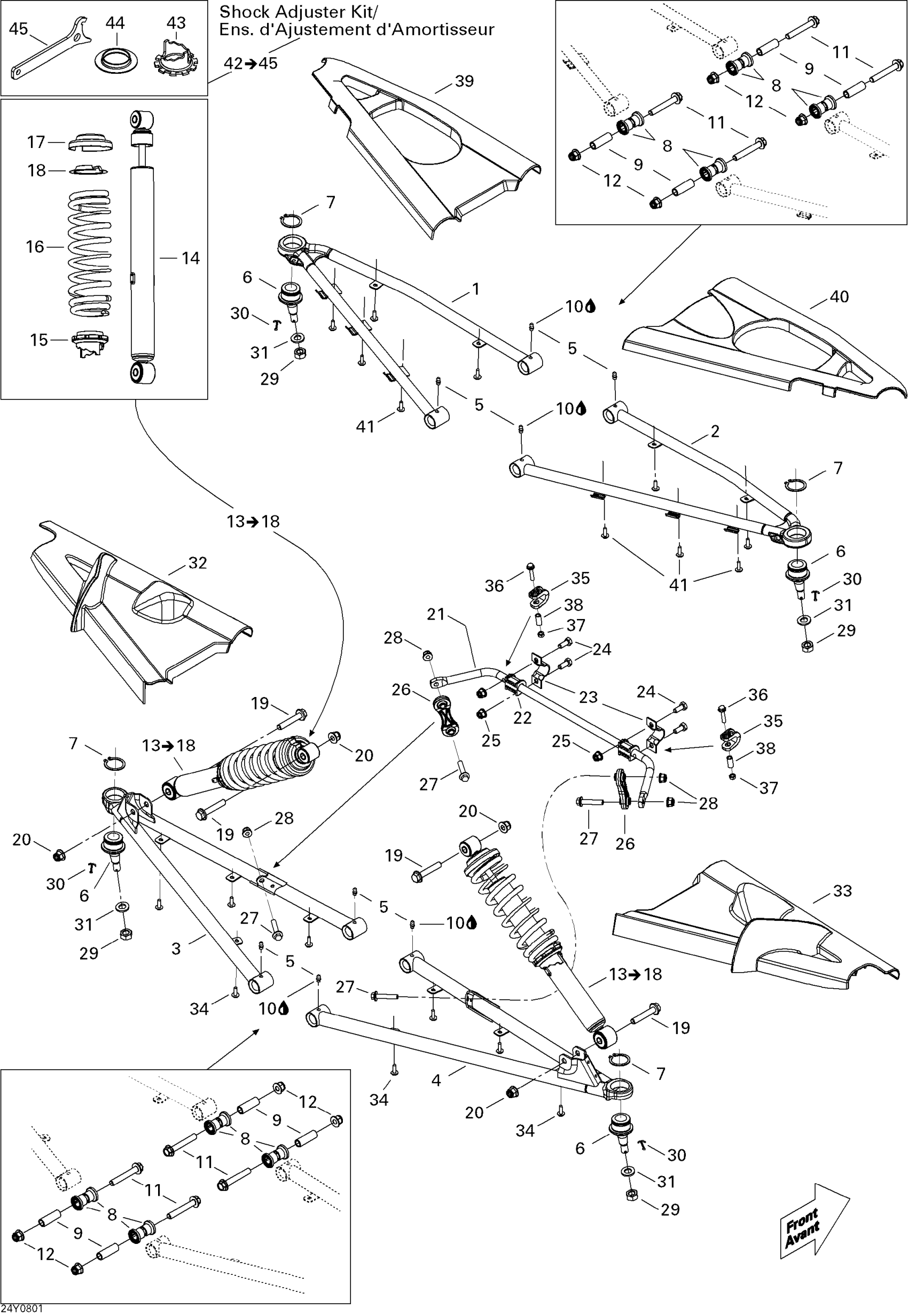

Can-Am Spyder GS 990 5-Speed, 2008 Suspension, Front Diagram

#

Description
Price

1

LH UPPER ARM - Call your local BRP dealership

505072406

Unavailable

2

RH UPPER ARM - Call your local BRP dealership

505072407

Unavailable

3

LH LOWER ARM - Call your local BRP dealership

505071697

Unavailable

4

RH LOWER ARM - Call your local BRP dealership

505071703

Unavailable

5

Grease Fitting

408200700

$2.80

6

Ball Joint

706202044

$34.30

7

Circlip

293370035

$2.48

8

Bushing

706200181

$2.45

9

Bushing

706200618

$17.99

10

Synthetic Grease, 400 G

293550010

Unavailable

11

Hex. Flange Screw M10 X 65

207606536

$3.61

12

Hex. Flange Elastic Nut M10

233201434

$1.63

13

Not Available As Spare Part - Friction Washer

Unavailable

14

FRONT SHOCK - Call your local BRP dealership

505071705

Unavailable

15

Shock Adjuster Kit

219800217

$56.99

16

FULL MOON SPRING - Call your local BRP dealership

505071707

Unavailable

17

Spring Stopper

706200881

$10.30

18

Cap

706200785

$4.28

19

Hex. Flange Screw

207605534

$2.00

20

Hex. Flange Elastic Nut M10

233201434

$1.63

21

SWAY BAR - Call your local BRP dealership

706200772

Unavailable

22

TORSION BUSHING - Call your local BRP dealership

505072287

Unavailable

23

CLAMP - Call your local BRP dealership

506095800

Unavailable

24

HEX. CAP SCREW M8 X 20 - Call your local BRP dealership

207182034

Unavailable

25

Hex. Flange Elastic Nut M8

233281434

$1.74

26

Tie Rod

706200671

$20.99

27

Hex. Flange Screw M8 X 40

207684034

$2.00

28

Hex. Flange Elastic Nut M8

233281434

$1.74

29

Nut M12

250100099

$1.64

30

Cotter Pin

250400035

$2.00

31

Hardened Washer

706200281

$2.34

32

LH Déflector

706200629

Unavailable

33

RH Déflector

706200630

Unavailable

34

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

35

SWAY BAR STOPPER - Call your local BRP dealership

706200649

Unavailable

36

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

37

Elastic Stop Nut M6

232561434

$1.55

38

BUSHING - Call your local BRP dealership

517302179

Unavailable

39

LH UPPER DEFLECTOR - Call your local BRP dealership

706200886

Unavailable

40

RH UPPER DEFLECTOR - Call your local BRP dealership

706200887

Unavailable

41

Hex. Plastic Screw M4.8 X 16

243141630

$1.74

42

Shock Adjuster Kit

219800217

$56.99

43

ADJUSTER RING - Call your local BRP dealership

706001061

Unavailable

44

RING PROTECTOR - Call your local BRP dealership

706001062

Unavailable

45

Adjustment Wrench

529000059

$17.99
