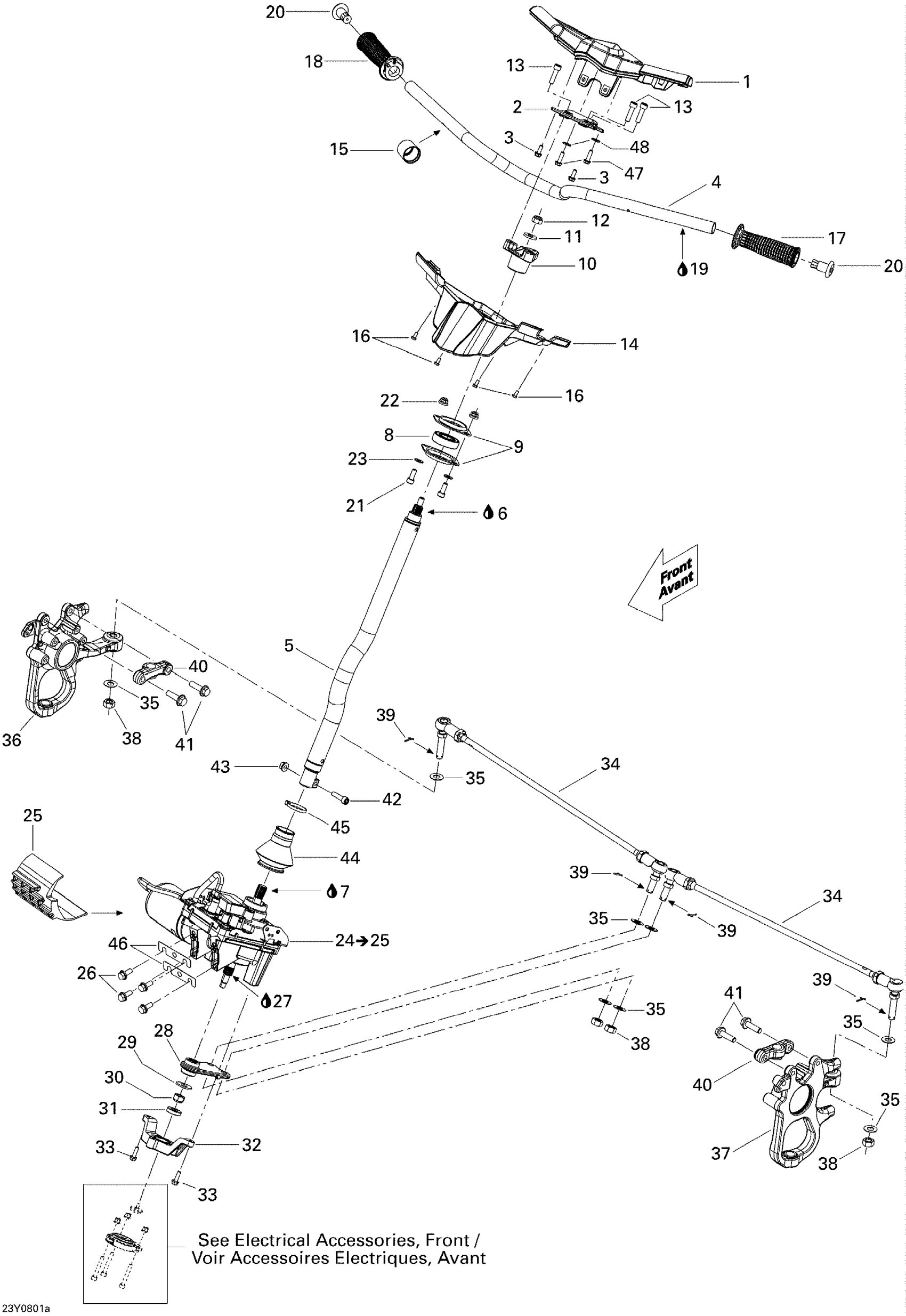

Can-Am Spyder GS 990 5-Speed, 2008 Steering 991 FS Diagram

#

Description
Price

1

Handle Bar Cover

709400618

Unavailable

2

STEERING CLAMP - Call your local BRP dealership

709400481

Unavailable

3

Hex. Flange Screw M6 X 16

210261650

$1.22

4

HANDLE BAR - Call your local BRP dealership

709400483

Unavailable

5

STEERING SHAFT - Call your local BRP dealership

506151972

Unavailable

6

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

7

Synthetic Grease, 400 G

293550010

Unavailable

8

BALL BEARING - Call your local BRP dealership

293350058

Unavailable

9

FLANGE - Call your local BRP dealership

709400532

Unavailable

10

Steering Clamp

709400478

Unavailable

11

Washer

503190439

$5.64

12

Elastic Locking Nut M10 X 1.5

233601416

$1.63

13

Socket Head Screw, Scotch Grip

205583034

$2.11

14

IGNITION SWITCH COVER - Call your local BRP dealership

709400436

Unavailable

15

HANDLE RING - Call your local BRP dealership

709400498

Unavailable

16

HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership

210251180

Unavailable

17

HANDLE GRIP - Call your local BRP dealership

709400516

Unavailable

18

THROTTLE HANDLE - Call your local BRP dealership

709400517

Unavailable

19

Loctite 406, 7 Oz

293800100

$36.99

20

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

21

Socket Head Screw M8 X 20

205082044

$1.06

22

Hex. Flange Elastic Nut M8

233281414

$1.14

23

Flat Washer M8

234081430

$1.74

24

Ens Dps *Dps Kit Rs/Gs | Includes 24 to 25

219800295

$1,737.99

24a

DPS HARDWARE KIT - Call your local BRP dealership | Not Shown

219800191

Unavailable

25

PROTECTOR - Call your local BRP dealership

709400551

Unavailable

26

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

27

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

28

ARM - Call your local BRP dealership

709400469

Unavailable

29

Hardened Washer

706200281

$2.34

30

Hex. Flange Elastic Nut M12

250000047

$1.56

31

Seal Ring

293200113

$4.59

32

SENSOR SUPPORT - Call your local BRP dealership

709400455

Unavailable

33

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

34

TIE ROD ASS`Y - Call your local BRP dealership

709400557

Unavailable

35

Hardened Washer

706200281

$2.34

36

KNUCKLE RH - Call your local BRP dealership

505071711

Unavailable

37

KNUCKLE LH - Call your local BRP dealership

505071709

Unavailable

38

Nut M12

250100099

$1.64

39

Cotter Pin

250400034

$2.00

40

UPPER SUPPORT - Call your local BRP dealership

706200528

Unavailable

41

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207503534

Unavailable

42

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

43

Hex. Elastic Flange Nut M8

233281416

$1.25

44

BELLOWS - Call your local BRP dealership

709400454

Unavailable

45

Tie-Rap 180 mm

414115200

$0.09

46

SHIM - Call your local BRP dealership

709400572

Unavailable

47

Hexagonal Head Screw

210262050

$1.74

48

Flat Washer 8 mm

234081410

$0.69
