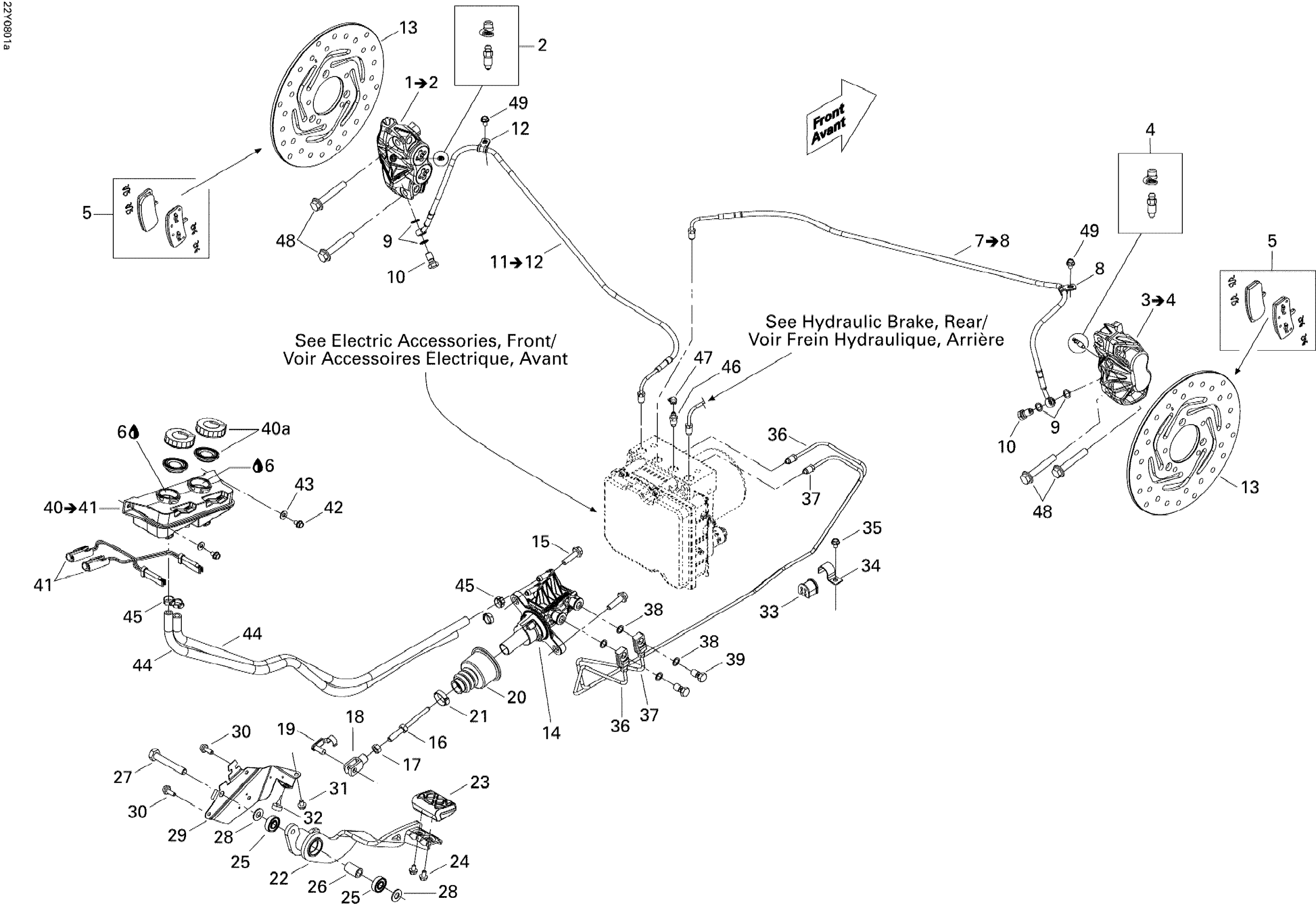

Can-Am Spyder GS 990 5-Speed, 2008 Hydraulic Brake, Front Diagram

#

Description
Price

1

LH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 1 to 2

219800125

Unavailable

2

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

3

RH FRONT CALIPER ASS'Y - Call your local BRP dealership | Includes 3 to 4

219800126

Unavailable

4

BLEED SCREW AND SPRING KIT - Call your local BRP dealership

219800045

Unavailable

5

Pad Kit (4 Pads)

219800164

$154.99

6

HYDRAULIC OIL - Call your local BRP dealership

293600131

Unavailable

7

RH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 7 to 8

705600852

Unavailable

8

Clamp

293650256

$4.36

9

Copper Washer

705601628

$4.21

10

Banjo Bolt

414920500

$8.24

11

LH FRONT FLEXIBLE BRAKE LINE - Call your local BRP dealership | Includes 11 to 12

705600853

Unavailable

12

Clamp

293650256

$4.36

13

FRONT BRAKE DISC - Call your local BRP dealership

705600435

Unavailable

14

Tandem Cylinder Master

705600722

$369.99

15

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.63

16

Piston Rod

705600468

$23.49

17

Hex. Nut M8

232081414

$0.60

18

Yoke

705600100

Unavailable

19

Pin Kit

219702305

$26.62

20

Bellow

705600716

$12.10

21

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

22

BRAKE PEDAL - Call your local BRP dealership | Model-RS

705600633

Unavailable

23

Rubber Pad

705002706

Unavailable

24

Hex. Forming Screw M6 X 10

210261050

$1.42

25

Bearing

705600458

$6.82

26

Bushing

705600541

$15.36

27

Hex. Screw M10 X 65, Scotch Grip

207206534

$7.09

28

Flat Washer 10 mm

234001410

$0.98

29

TAB LOCK - Call your local BRP dealership

705600823

Unavailable

30

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

31

Hex. Forming Screw M6 X 10

210261050

$1.42

32

Rubber Stopper

708000759

$3.61

33

TUBE SUPPORT - Call your local BRP dealership

705600843

Unavailable

34

Clip

705600507

Unavailable

35

Hex. Forming Screw M6 X 10

210261050

$1.42

36

FRONT TANDEM RIGID TUBE - Call your local BRP dealership

705600721

Unavailable

37

REAR TANDEM RIGID TUBE - Call your local BRP dealership

705600742

Unavailable

38

Copper Washer

705601628

$4.21

39

Banjo Bolt

414920500

$8.24

40

OIL RESERVOIR - Call your local BRP dealership | Includes 40 to 41

219800324

Unavailable

40a

Cap And Diaphragm Kit

219800058

$19.49

41

Oil Level Sensor

515176508

$29.07

42

Hex. Forming Screw M6 X 10

210261050

$1.42

43

Flat Washer

224061121

$0.44

44

BOYAU 8MM. *HOSE-8MM. - Call your local BRP dealership

276000084

Unavailable

45

Crimp Clamp, 15.3-706R

293650047

$2.64

46

Bleeder Screw

705600502

$10.12

47

BLEEDER CAP - Call your local BRP dealership

705600554

Unavailable

48

HEX. FLANGED SCREW M10 X 60, SCOTCH GRIP - Call your local BRP dealership

207506034

Unavailable

49

Hex. Forming Screw M6 X 10

210261050

$1.42
