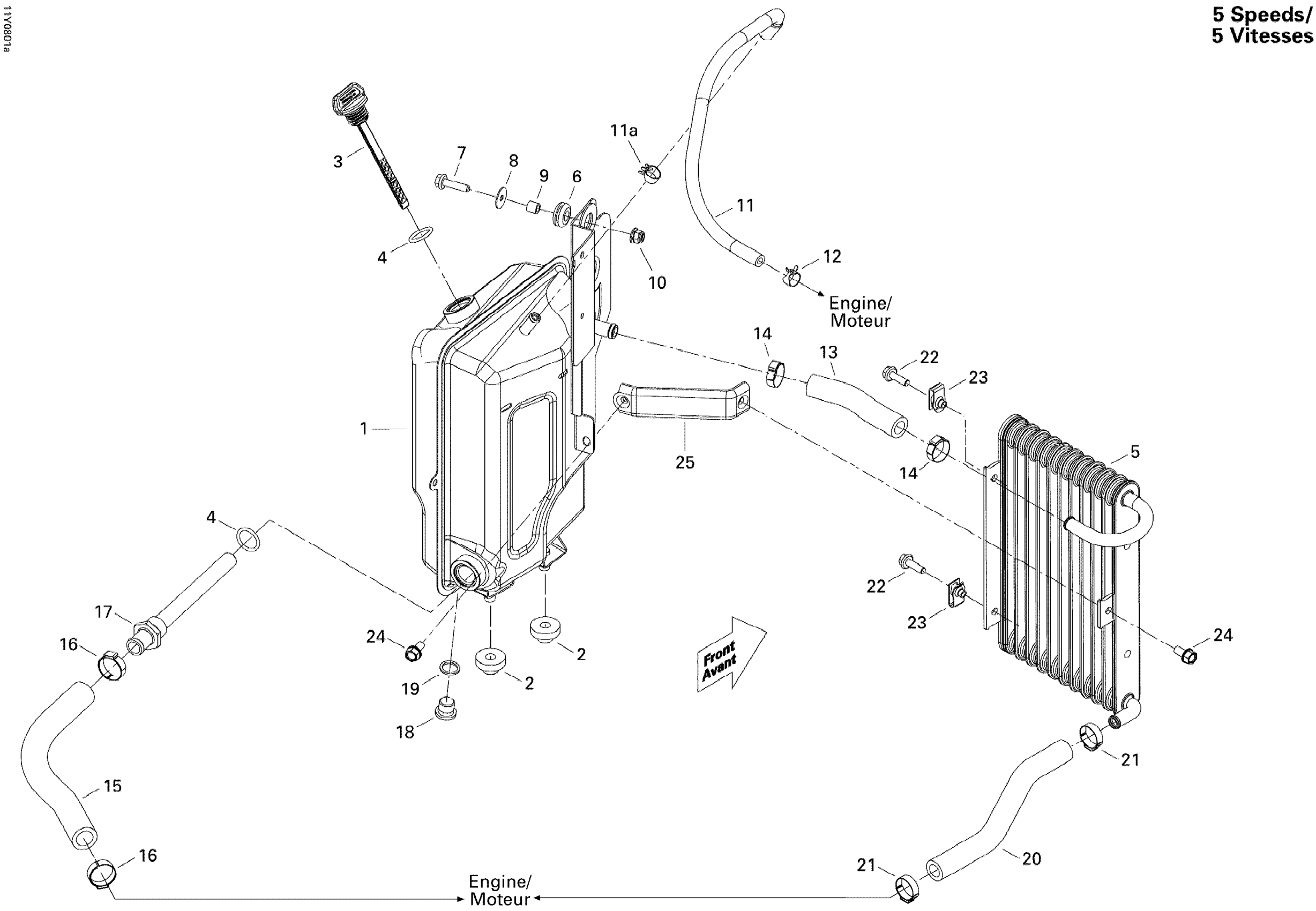

Can-Am Spyder GS 990 5-Speed, 2008 Oil System 991 FS Diagram

#

Description
Price

1

Oil Tank

519000210

Unavailable

2

Grommet

709200285

$7.09

3

Oil Cap

519000155

$15.82

4

O-RING - Call your local BRP dealership

705500271

Unavailable

5

OIL RADIATOR - Call your local BRP dealership

519000123

Unavailable

6

Grommet

709000582

$4.25

7

Hex. Flange Screw M6 X 25

207662544

$0.53

8

Flat Washer

224060201

$1.12

9

Bushing

293900105

$6.07

10

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

11

Formed Hose

519000208

$28.99

11a

Spring Clamp

414655700

$0.66

12

Spring Clamp

414415200

$0.81

13

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

14

Oetiker Clamp

293650186

$3.33

15

15,9 MM HOSE 1000MM LONG - Call your local BRP dealership

219704432

Unavailable

16

Gear Clamp

509000552

$5.76

17

Strainer

519000162

Unavailable

18

Fill Level Plug | 4X4

705500504

$7.61

19

Copper Washer | 4X4

705500506

$0.36

20

12,7 MM HOSE 1000MM LONG - Call your local BRP dealership

219704431

Unavailable

21

Oetiker Clamp

293650186

$3.33

22

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

23

Panel Nut M6 X 1.0

250100198

$1.73

24

Hex. Flange Screw M6 X 12

210261250

$1.56

25

RADIATOR SUPPORT - Call your local BRP dealership

519000175

Unavailable
