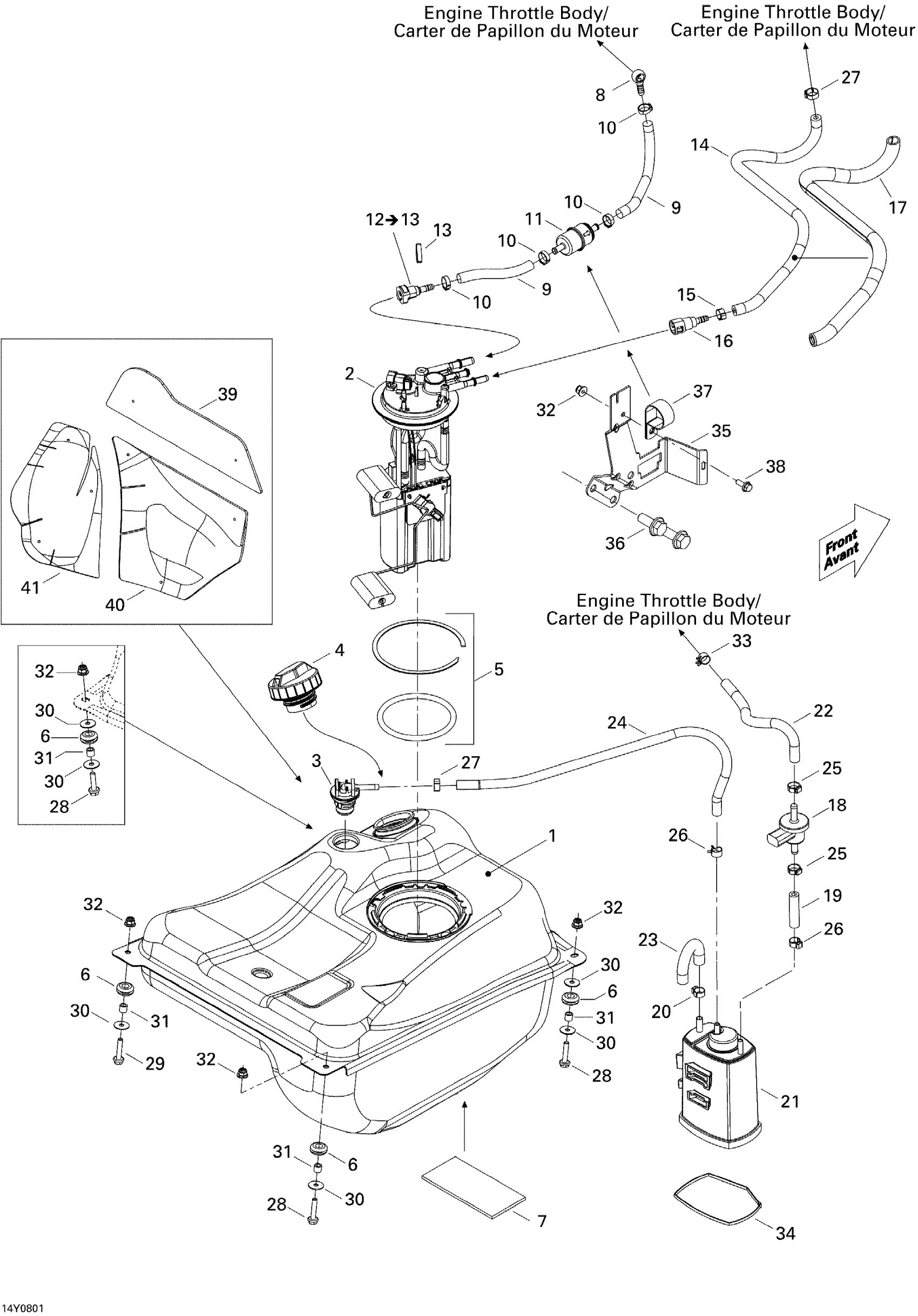

Can-Am Spyder GS 990 5-Speed, 2008 Fuel System Diagram

#

Description
Price

1

Fuel Tank

709000314

Unavailable

2

Pump Module

709000088

$625.00

3

Rollover Valve

709000413

$52.28

4

Fuel Cap

709000660

$15.00

5

Seal Kit

219800248

$39.00

6

Grommet

709000582

$4.38

7

Carpet

709000130

$14.00

8

BANJO FITTING - Call your local BRP dealership

709000137

$20.00

9

Fuel Line 7.9 mm

709000133

Unavailable

10

Oetiker Clamp

293650125

$2.69

11

Fuel Filter

513034047

$23.05

12

Female Quick Fitting Ass'y

709000125

$11.12

13

Locking Clip

513033135

$5.11

14

Hose

513033565

$29.20

15

Oetiker Clamp

293650046

$2.33

16

Quick Connect Pipe Fitting

293710192

$12.00

17

Was 409901800 Tubing (13 mm)

219704400

$9.40

18

Bleed Valve

709000443

$69.20

19

Hose

513033565

$29.20

20

Crimp Clamp, 15.3-706R

293650047

$2.64

21

Vapor Canister

709000090

$87.66

22

Hose

513033565

$29.20

23

FORMED HOSE - Call your local BRP dealership

709000152

Unavailable

24

Hose

513033565

$29.20

25

Oetiker Clamp

293650046

$2.33

26

Oetiker Clamp

293650042

$1.40

27

Oetiker Gear Clamp

293650025

$2.46

28

Hex. Flange Screw M6 X 25

207662544

$0.53

29

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

30

Flat Washer

224060201

$1.15

31

Bushing

709000162

$13.83

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

33

Spring Clamp

414415200

$0.83

34

Tie Wrap 368 mm

293750008

$0.85

35

Support

709000150

Unavailable

36

Hex. Flange Screw M10 X 25

207602544

$1.33

37

Open Clamp

513033047

$4.88

38

Hex. Flange Screw M6 X 16

207661644

$0.61

39

Reflective Sheet

709000157

$21.00

40

REFLECTIVE SHEET - Call your local BRP dealership

709000158

Unavailable

41

REFLECTIVE SHEET - Call your local BRP dealership

709000159

Unavailable
