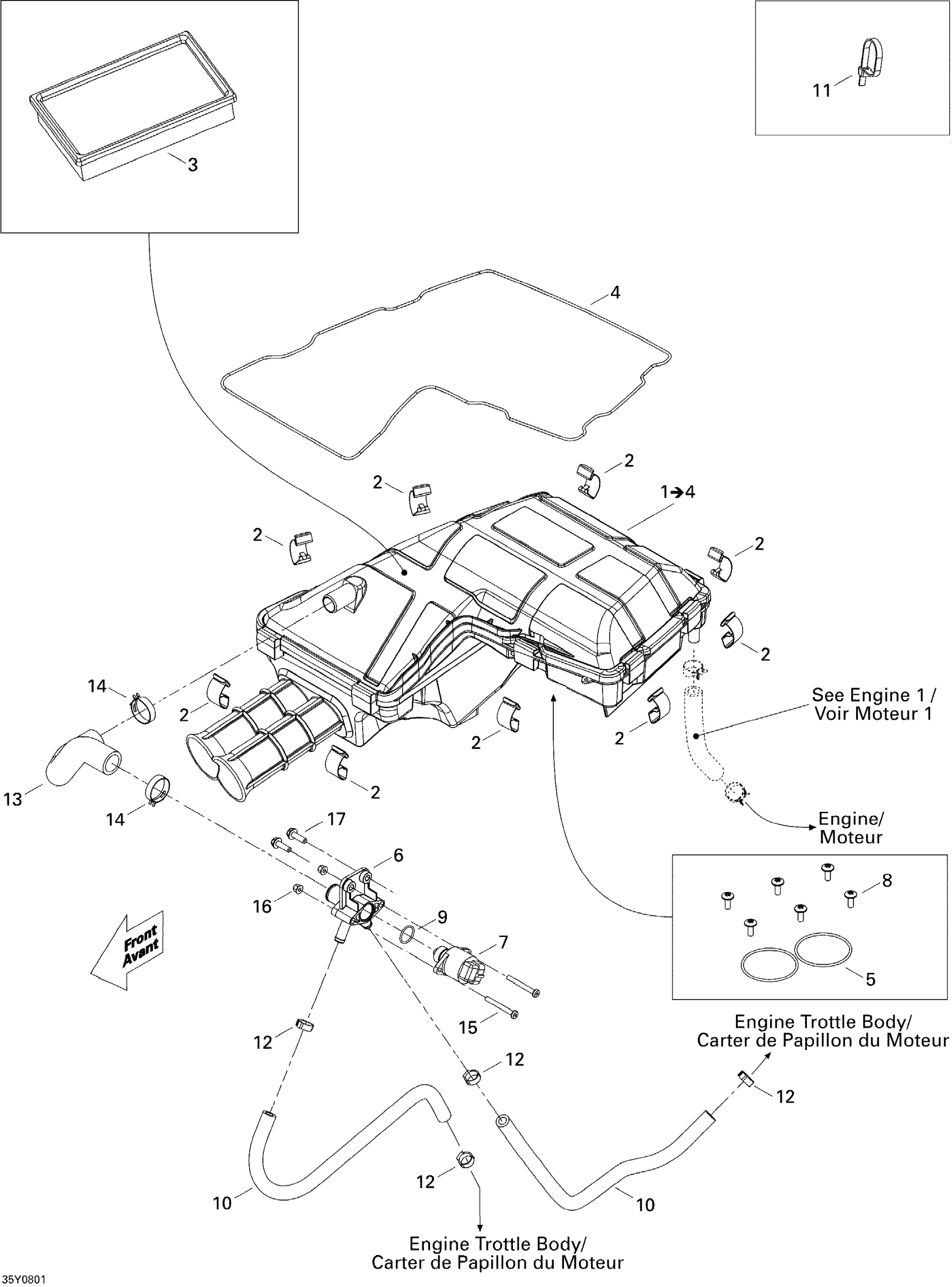

Can-Am Spyder GS 990 5-Speed, 2008 Air Intake Diagram

#

Description
Price

1

AIR INTAKE ASS'Y - Call your local BRP dealership | Includes 1 to 4

707800182

Unavailable

2

COVER BRACKET - Call your local BRP dealership

707800259

Unavailable

3

Air Filter

707800188

$45.99

4

GASKET - Call your local BRP dealership

707800491

Unavailable

5

O RING - Call your local BRP dealership

707800198

$3.79

6

FITTING - Call your local BRP dealership

707800207

Unavailable

7

IDLE VALVE - Call your local BRP dealership

707800203

Unavailable

8

Torx Screw M6 X 16

250000223

$2.11

9

O-Ring

293300079

$6.66

10

HOSE 9.5 MM, METER - Call your local BRP dealership

709000022

Unavailable

11

Tie-Rap 180 mm

414115200

$0.11

12

Oetiker Clamp | Europe

293650030

$5.19

13

FORMED HOSE - Call your local BRP dealership

707800253

Unavailable

14

UNIVERSAL SPRING CLAMP - Call your local BRP dealership

707800255

Unavailable

15

SOCKET HEAD SCREW M5 X 45 - Call your local BRP dealership

205454536

Unavailable

16

Hex. Flange Elastic Nut M5

233251414

$1.04

17

Hexagonal Head Screw

210262050

$2.11
