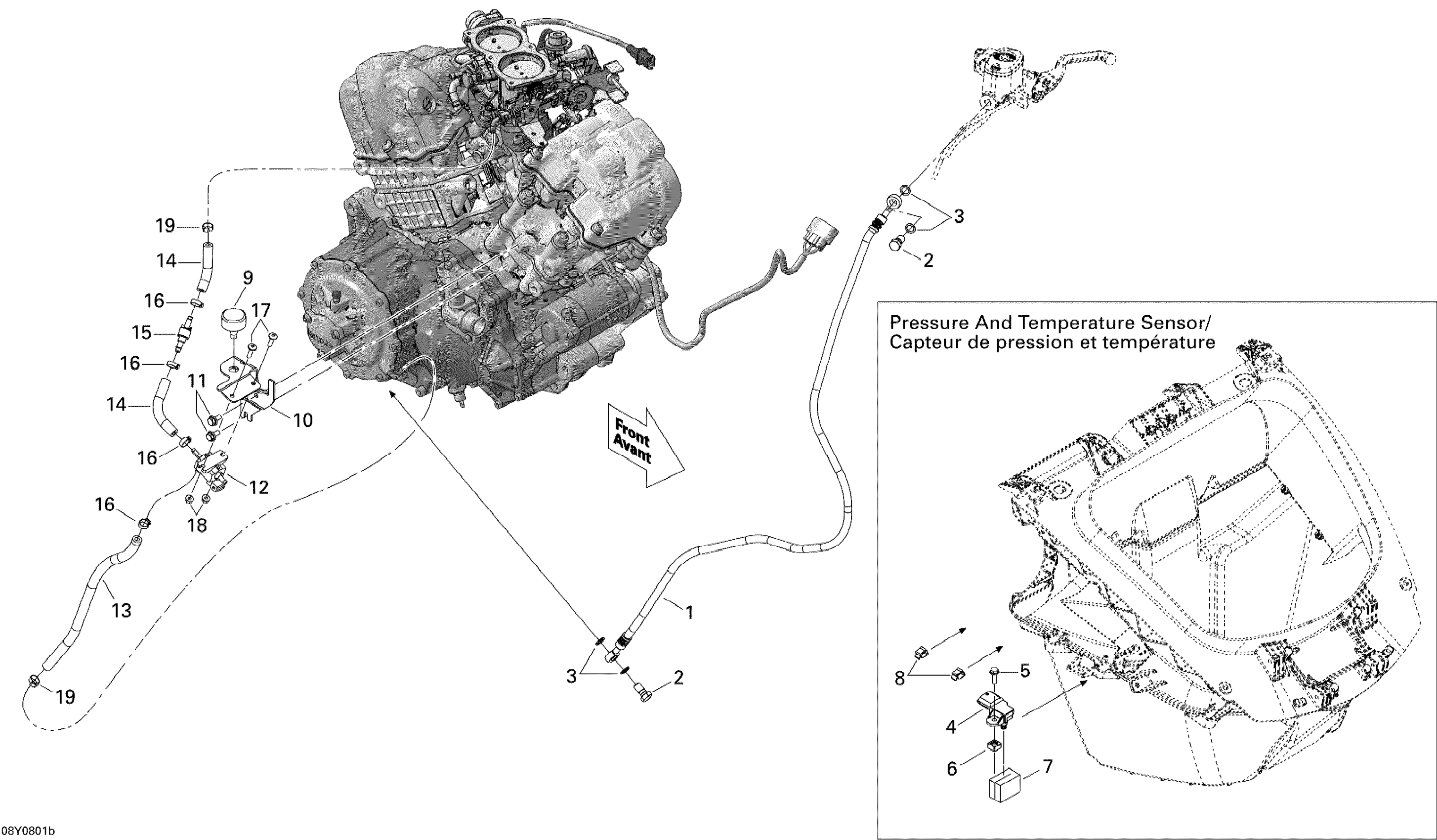

Can-Am Spyder GS 990 5-Speed, 2008 Engine 2 Diagram

#

Description
Price

1

CLUTCH HOSE - Call your local BRP dealership

707000590

Unavailable

2

Banjo Bolt

414920500

$8.49

3

Copper Washer

705601628

$4.34

4

Pressure And Temperature Sensor

707000995

$70.82

5

Hex. Flange Screw M6 X 20

207662084

$0.83

6

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$3.73

7

Foam Filter

707000586

$6.00

8

Clip

414227300

$1.45

9

Rubber Stopper

708000758

$9.37

10

Intake Support

707000756

$11.00

11

Hex. Flange Screw M6 X 12

207661244

$1.70

12

Solenoid Valve

707001596

$79.00

13

Hose

513033565

$29.20

14

Hose

513033565

$29.20

15

Check Valve

513033469

$25.32

16

Oetiker Clamp

293650042

$1.40

17

Torx Screw M5 X 20

250000724

$1.39

18

Hex. Flange Elastic Nut M5

233251414

$1.66

19

Oetiker Clamp

293650042

$1.40
