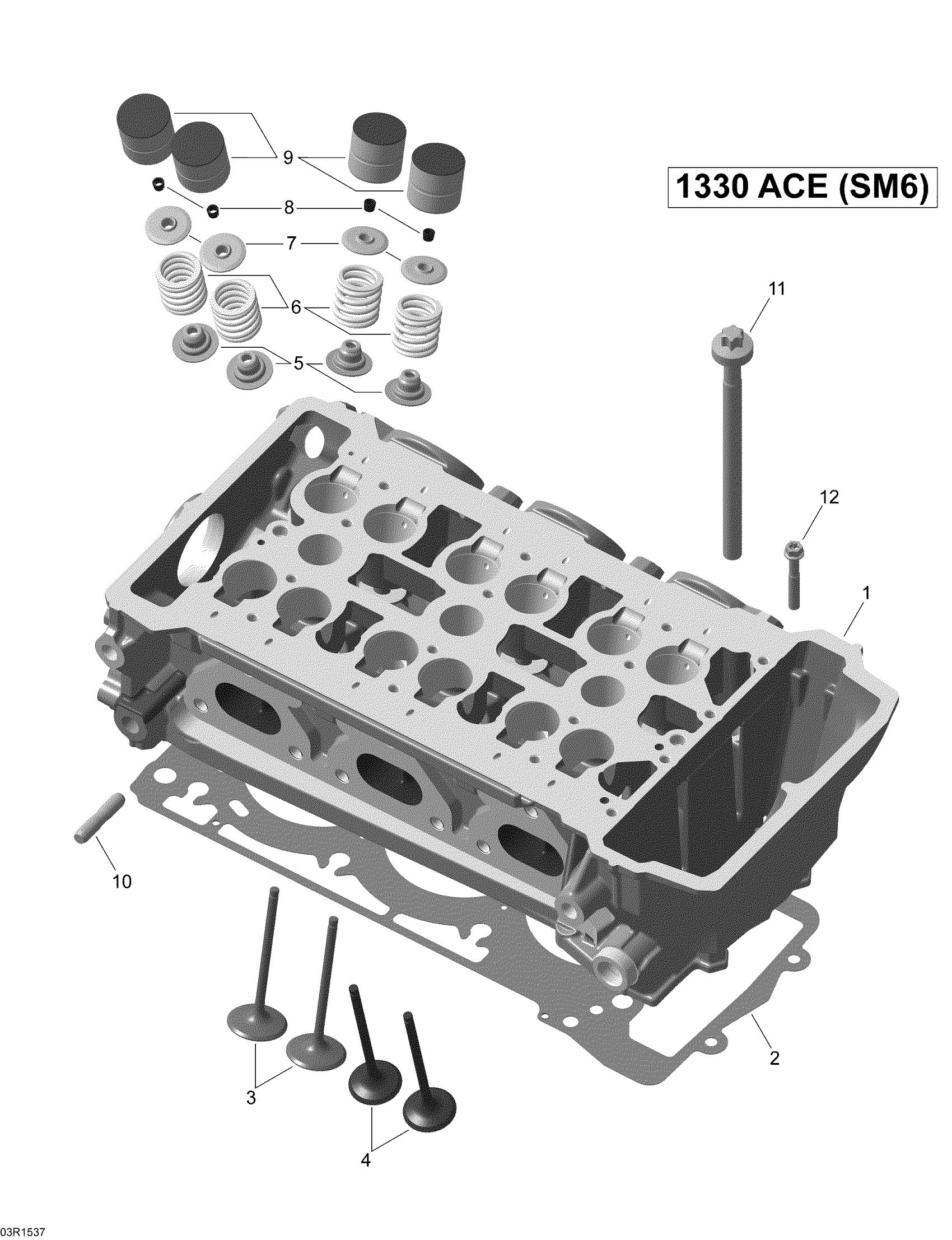

Can-Am Spyder F3 SM6, 2015 Cylinder Head _03R1537 Diagram

#

Description
Price

1

Cylinder Head

420623978

$915.99

2

Cylinder Head Gasket

420431951

$35.99

3

Intake Valve, 32 mm

420253210

$39.99

4

Exhaust Valve, 28.5 mm

420253220

$89.99

5

Valve Stem Seal

420431671

$5.39

6

Valve Spring

420939540

$7.51

7

Valve Spring Retainer

420855150

$4.44

8

Cotter Valve

420254630

$1.01

9

Valve Lifter Bucket

420855165

$46.49

10

Stud

420840718

$11.11

11

Torx Flange Screw M10 X 150

420441285

$12.10

12

Torx Flange Screw M6 X 40

420440282

$3.17
