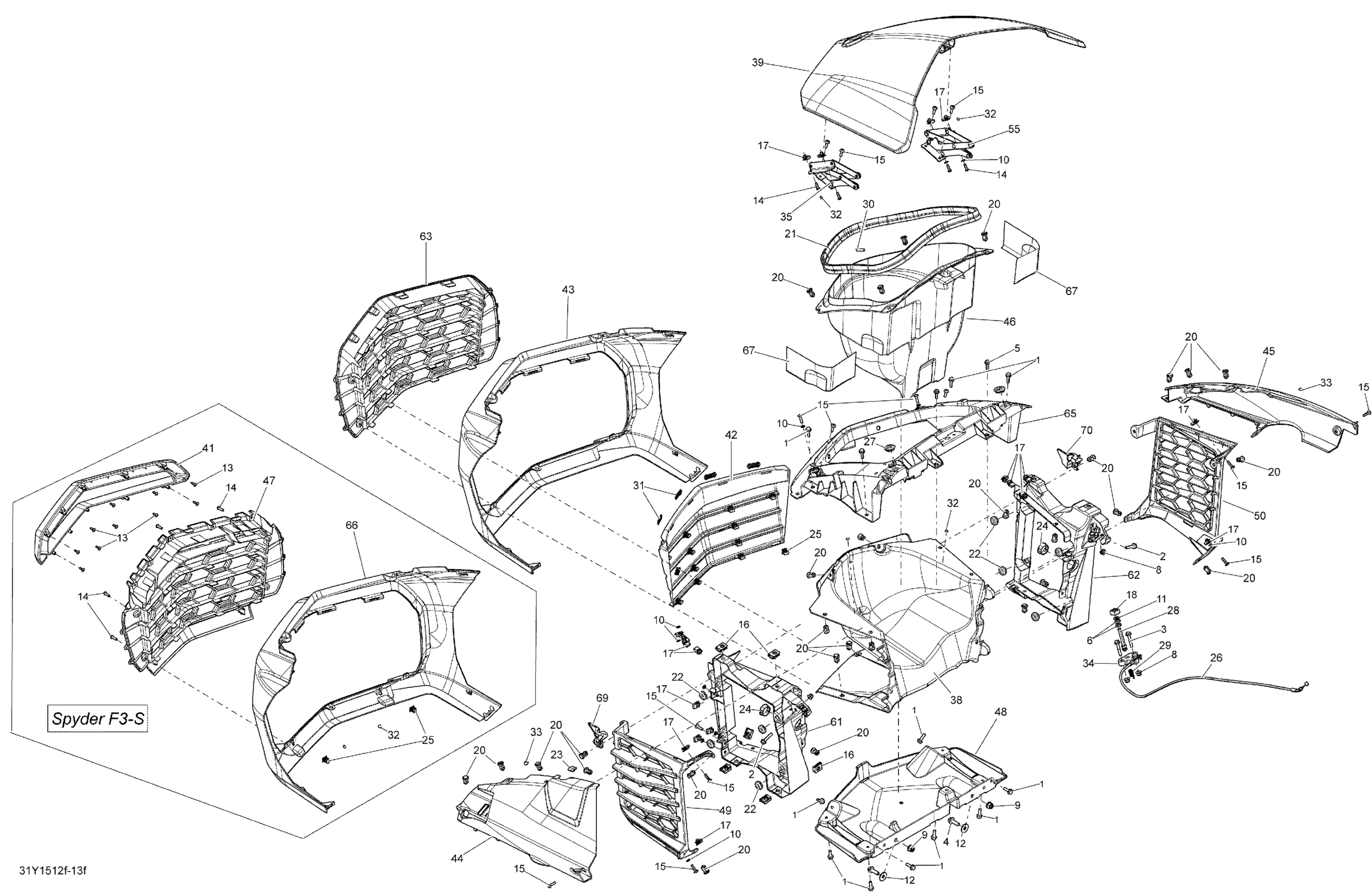

Can-Am Spyder F3 SE6, 2015 Body And Accessories Front Storage_31Y1512f Diagram

#

Description
Price

1

Hex. Flange Screw M6 X 20

207662034

$1.74

2

Hex. Flange Screw M6 X 30

207663054

$3.61

3

Hex. Flange Screw M6 X 35

207663544

$0.74

4

Hex. Flange Screw M8 X 25

207682534

$1.06

5

Hexagonal Head Screw

210262050

$1.74

6

Hex. Jam Nut M8

232180600

$0.56

8

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

9

Hex. Flange Elastic Nut M8

233281434

$1.74

10

Flat Washer M5

234051670

$1.74

11

Flat Washer 8 mm

234081410

$0.69

12

Flat Washer M8

234082430

$2.06

13

Not Available As Spare Parts

XXX

Unavailable

14

Torx Truss Screw M5 X 16, T25

250000578

$1.74

15

Torx Truss Screw M5 X 20

250000715

$2.06

16

Panel Nut M6 X 1.0

250100208

$1.07

17

Panel Nut M5 X 0.8

250100176

$4.00

18

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$5.41

20

Tuflok Plastic Rivet

293150230

$1.21

21

Neoprene Seal 3000Mm Long

219704371

$45.47

22

Grommet

709000582

$4.38

23

Rubber Pad

293830143

$18.00

24

Black, Nylon Cap

414916600

$4.32

25

Edge Clip

517302785

$0.70

26

Hood Cable

517305742

$43.00

27

Oval Washer

705000321

$4.64

28

Lug

705002223

$26.00

29

Spring

705003911

$4.00

30

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$19.20

31

Flat Clip

705004838

$8.00

32

Stopper

705006633

$8.00

33

Polyurethane Stopper

705006634

$5.00

34

Latch

705007379

$29.00

35

LH Hood Hinge | Includes 3000 to 3000h

708200673

$92.00

38

Front Air Duct Module

708200362

$89.00

39

Steel Black Hood

708200379

$540.00

39

Vegas White Pearl, Hood

708200677

$540.00

41

Not Available As Spare Parts

XXX

Unavailable

42

Front Deflector Grille

708200393

$76.00

43

Steel Black Front Fascia

708200400

$380.00

43

Vegas White Front Fascia

708200479

$320.00

44

Steel Black, LH Vent Panel

708200450

$215.00

44

Vegas White Pearl, LH Vent Panel

708200679

$220.00

45

Steel Black, RH Vent Panel

708200451

$215.00

45

Vegas White Pearl, RH Vent Panel

708200680

$220.00

46

Front Storage Bin

708200403

$70.00

47

Not Available As Spare Parts

XXX

Unavailable

48

Front Skid Plate

708200405

$30.00

49

LH Front Lateral Vent

708200406

$34.00

50

RH Side Vent

708200859

$35.00

55

RH Hood Hinge | Includes 3100 to 3100h

708200674

$92.00

61

LH Breakaway Lateral Tower Leg | Includes 100 to 100f

708200437

$79.00

62

RH Breakaway Lateral Tower Leg | Includes 500 to 500f

708200438

$79.00

63

Front Radiator Grille

708200443

$130.00

65

Sub-Frame Type Structure | Includes 2500 to 2500b

708200446

$79.00

66

Not Available As Spare Parts

XXX

Unavailable

67

Heat Shield Sheet

708200490

Unavailable

69

LH Front Union Link

708200493

$10.00

70

RH Front Union Link

708200494

$10.00
