Partiron

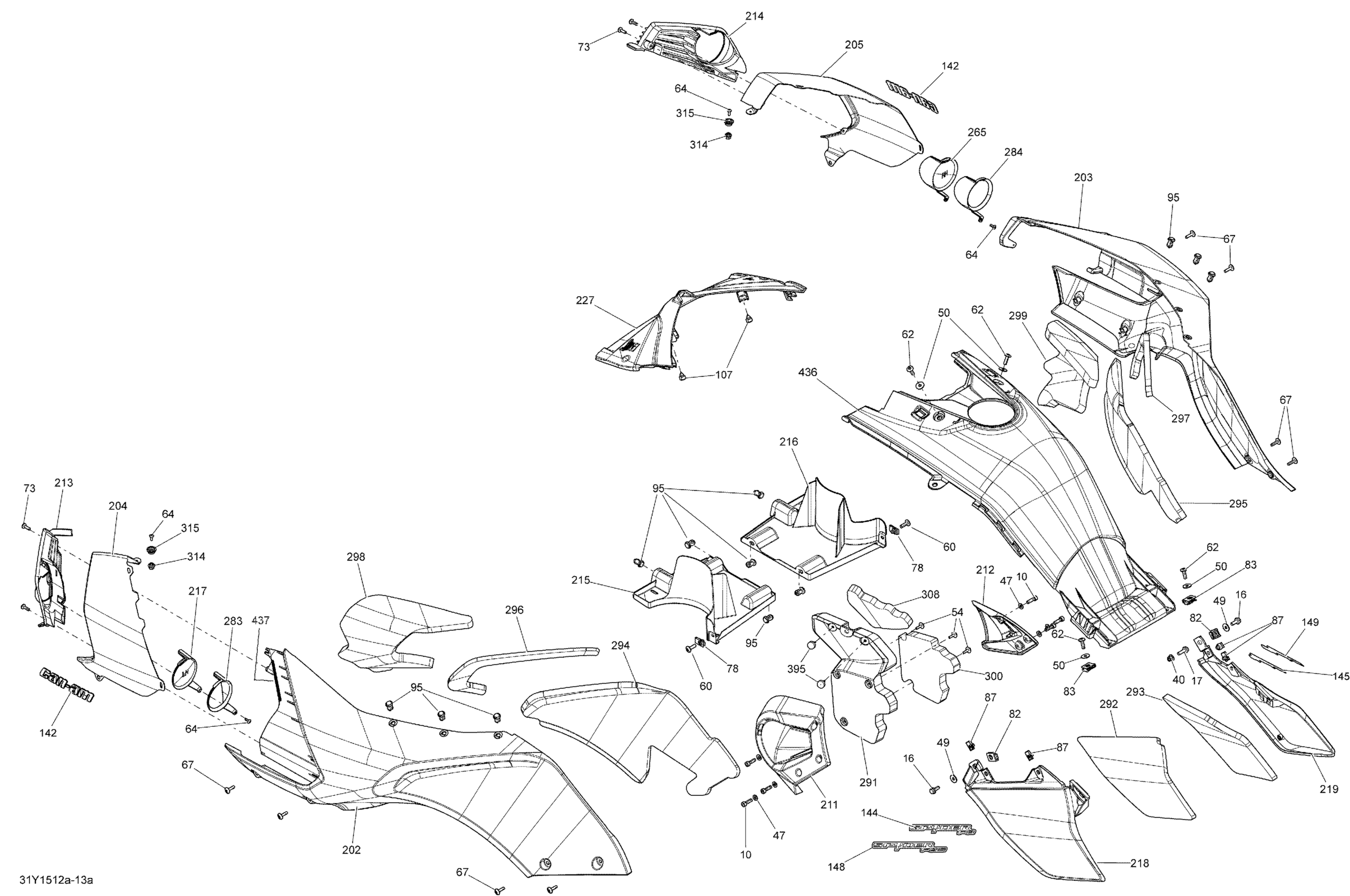

Can-Am Spyder F3 SE6, 2015 Body And Accessories Fairing_31Y1512a Diagram

#

Description
Price

10

Socket Head Screw M6 X 20, Scotch Grip

205562060

$0.76

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

17

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

40

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

47

Stainless Flat Washer M6

234061600

$0.33

49

Flat Washer 6 mm

234062410

$0.77

50

Stainless Steel Flat Washer

234062670

$2.11

54

Screw M4 X 16

250000725

$3.49

60

Torx Truss Screw M6 X 20

250000350

$5.29

62

Torx Screw M6 X 20, Scotch Grip

250000446

$4.44

64

Torx Truss Screw K40 X 12

250000577

$2.11

67

Torx Truss M5 X 20

250000586

$4.44

73

Torx Screw K50 X 16

250000720

$1.69

78

Panel Nut M6 X 1.0

250100198

$2.11

82

Panel Nut M6 X 1.0

250100208

$1.46

83

Panel Nut M6 X 1.0

250100208

$1.46

87

Panel Nut M5 X 0.8

250100176

$4.09

95

Tuflok Plastic Rivet

293150230

$1.47

107

Rubber Bumper

293830005

$8.09

142

Brillant Chrome, Logo CAN-AM

704904675

$38.99

144

SPYDER F3 DECAL VEGAS WHITE - Call your local BRP dealership

704904667

Unavailable

145

SPYDER F3 DECAL VEGAS WHITE - Call your local BRP dealership

704904667

Unavailable

148

Not Available As Spare Parts

XXX

Unavailable

149

Not Available As Spare Parts

XXX

Unavailable

202

Steel Black Met., LH Lateral Fairing

705010846

$254.99

202

Vegas White, LH Lateral Fairing

705010844

$249.99

203

Steel Black, RH Lateral Fairing

705010838

$254.99

203

Vegas White, RH Lateral Fairing

705010836

$254.99

204

LH Air Scoop

705010678

$43.99

205

RH Air Scoop

705010679

$224.99

211

LH Engine Fairing

705007780

$45.99

212

RH Engine Fairing

705007781

$45.99

213

Deep Black, LH Air Vent Grid

705010137

$19.99

214

Deep Black, RH Air Vent Grid

705010138

$19.99

215

LH Front Skid Plate

705007785

$28.49

216

RH Front Skid Plate

705007786

$28.49

217

Deep Black, LH Light Cap

705007787

$10.99

218

Steel Black Met., LH Low Fairing

705008254

$104.99

218

LH LOWER FAIRING VEGAS WHITE PEARL - Call your local BRP dealership

705010797

Unavailable

219

Steel Black Met., RH Lower Fairing

705008255

$104.99

219

Bare, RH Lower Console Fairing

705007791

$27.99

227

Service Center Fairing

705008058

$33.99

265

Deep Black, RH Light Cap

705008963

$10.99

283

LH Heat Shield

705008995

$13.99

284

RH Heat Shield

705008996

$13.99

291

LH Acoustic Fairing

705009144

$45.99

292

Acoustic Foam

705009153

$14.49

293

Acoustic Foam

705009154

$13.49

294

Acoustic Foam

705009155

$16.99

295

Acoustic Foam

705009156

$16.99

296

Acoustic Foam

705009157

$8.49

297

Acoustic Foam

705009158

$8.49

298

Acoustic Foam

705009159

$16.99

299

Acoustic Foam

705009160

$16.99

300

Acoustic Foam

705009162

$14.49

308

Acoustic Foam

705009344

$8.49

314

Anchor Pin

705009430

$1.37

315

SHOULDERED BUSHING - Call your local BRP dealership

705009431

Unavailable

395

Rubber Stopper

708000759

$4.19

436

Steel Black Fuel Tank Cover

705008246

$249.99

436

Vegas White Fuel Tank Cover

705010801

$249.99

437

Seal 1000Mm Long

219704373

$8.26
