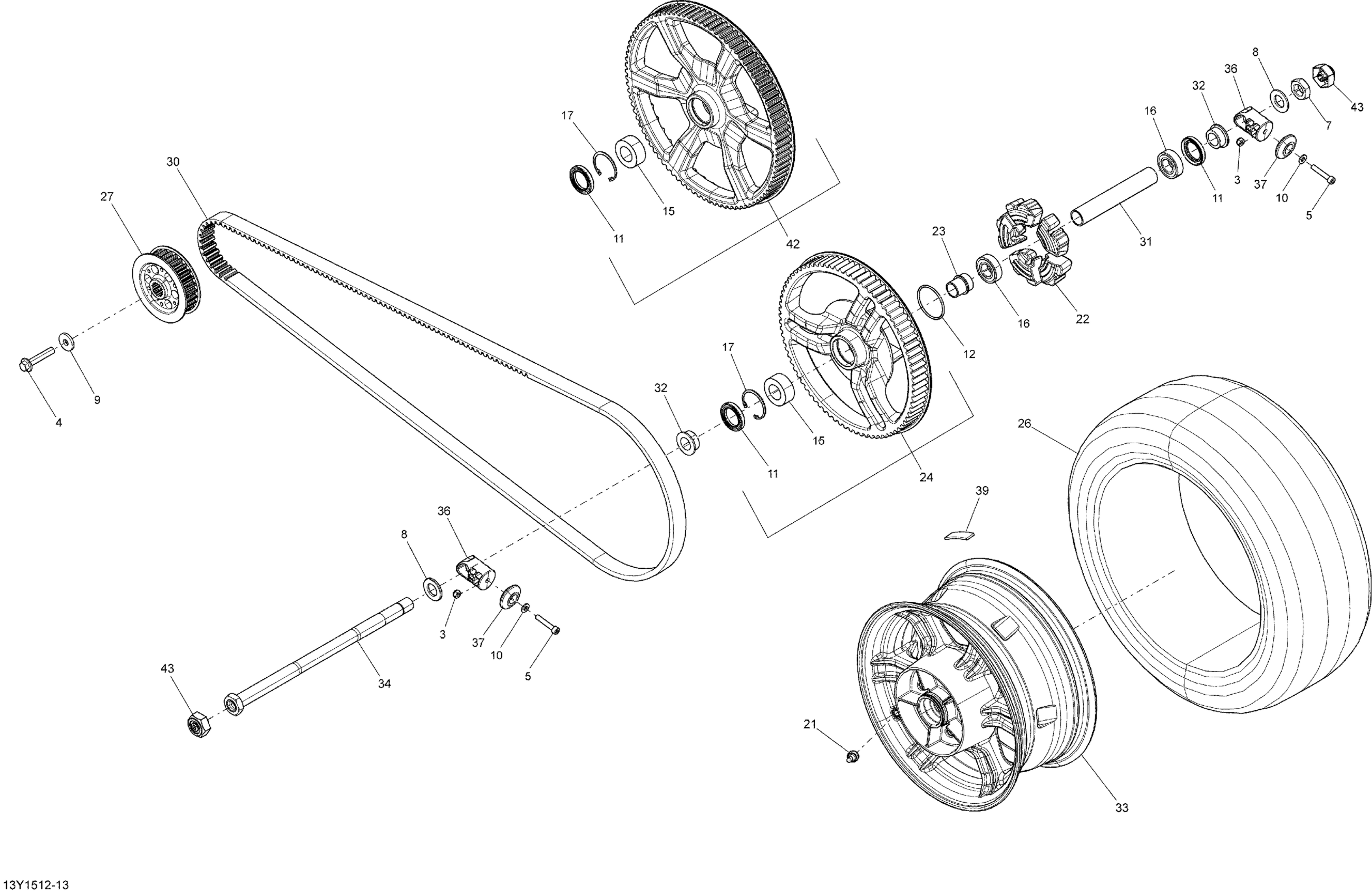

Can-Am Spyder F3 SE6, 2015 Drive System, Rear _13Y1512 Diagram

#

Description
Price

3

Hex. Elastic Nut M8

250100141

$2.00

4

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.00

5

Socket Screw DIN.912

250000713

$3.00

7

Hex. Jam Nut M24

250100170

$12.00

8

Flat Washer

250200163

$3.40

9

Washer

250200052

$10.14

10

Flat Washer 8 mm

234081410

$0.69

11

Seal

293200094

$9.31

12

O-Ring

293300124

$3.00

15

Double Row Bearing

293350065

$34.00

16

Ball Bearing

293350115

$11.15

17

Circlip

293370053

$10.00

21

Rim Valve With Cap

705400193

$6.69

22

Damper

705500736

$24.00

23

Spacer

705500853

$23.00

24

Silver - Pulley Ass'y, 79 Teeth | Model-RS STD

705502015

$510.00

26

Rear Tire 225/50R15

705503310

Unavailable

27

Sprocket 28 Teeth

705503239

$160.00

30

Drive Belt

705501304

$410.00

30

Drive Belt

705502157

$410.00

31

Spacer Tube

705502093

$18.00

32

Spacer

705501602

$19.00

33

RIM_15 INCH M-519 X 7 - Call your local BRP dealership | Package-STD

705502089

Unavailable

34

Rear Axle Ass'y

705502024

$116.00

36

Sliding Block

705502027

$18.00

37

End Stop Adjusment

705502085

$26.00

39

Self Adhesive Weight, 5G 20mm

705502106

$4.35

42

SILVER SPROCKET 89 TEETH ASS'Y - Call your local BRP dealership | Package-STD North America

705502216

Unavailable

43

Nut Cap

705502248

$8.00
