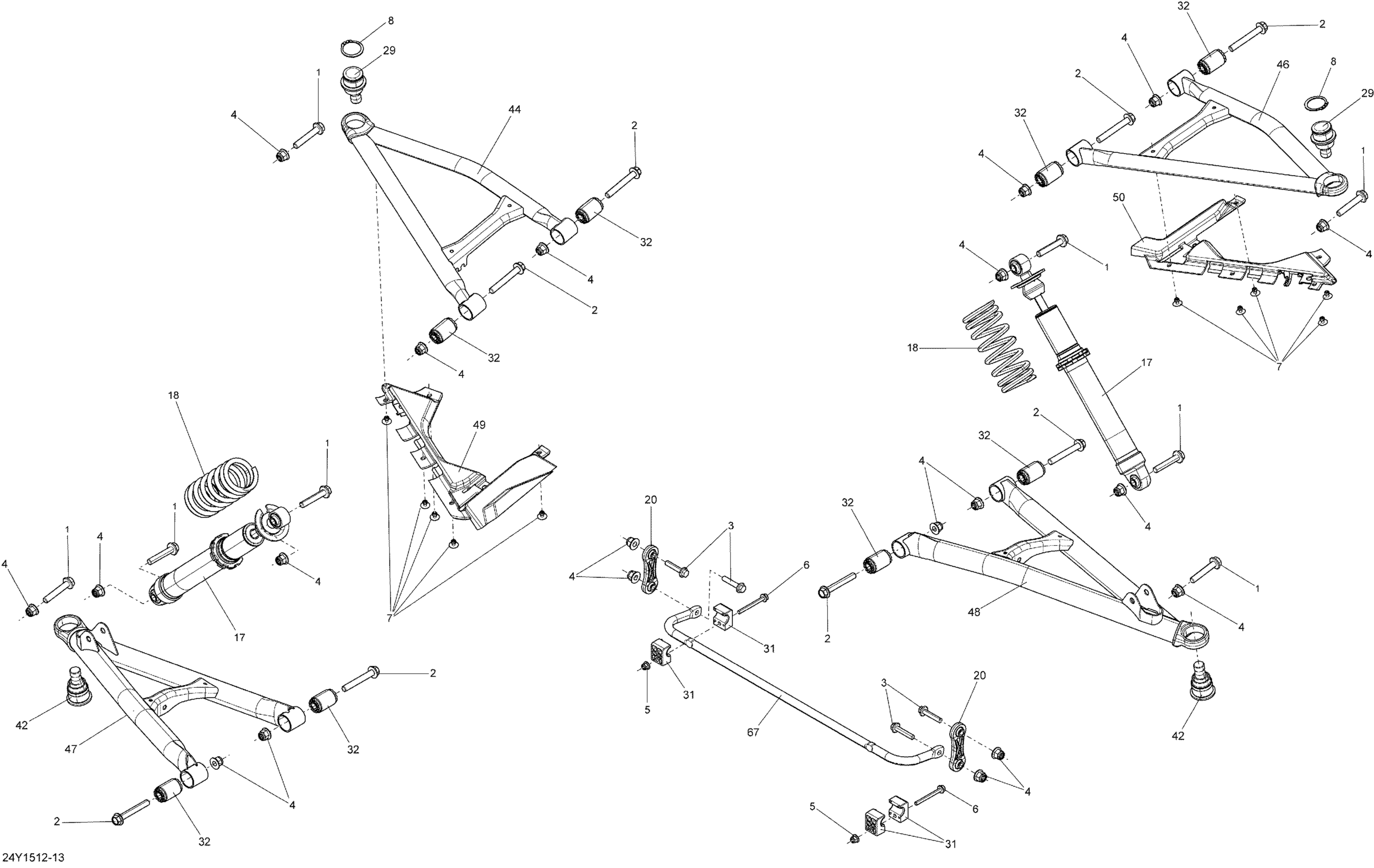

Can-Am Spyder F3 SE6, 2015 Suspension, Front _24Y1512 Diagram

#

Description
Price

1

Hex. Flange Screw M10 X 55

207605554

$8.00

2

Hex. Flange Screw M10 X 70

207607056

$3.38

3

Hex. Flange Screw M8 X 40

207684054

$2.06

4

Flange Elastic Nut M10

233201466

$2.63

5

Hex. Flange Elastic Nut M6

233261466

$1.66

6

Hex. Flange Screw M6 X 60

250000778

$3.61

7

Pop Rivet 3/16"

293150103

$0.54

8

Circlip

293370035

$2.55

17

Shock

706001699

$410.00

18

Spring

706001771

$62.00

20

Tie Rod

706200671

$21.00

29

Ball Joint

706202507

$59.97

31

Bushing

706201429

$10.00

32

Suspension Arm Bushing

706201519

$14.00

42

Ball Joint

706201739

$41.00

44

Deep Black, LH Upper Suspension Arm

706204682

$159.00

46

Deep Black, RH Upper Suspension Arm

706204686

$159.00

47

Deep Black, LH Lower Arm

706202165

$159.00

48

Deep Black, RH Lower Arm

706202166

$159.00

49

Cable Cap

706201842

$14.00

50

RH Cable Cap

706201843

$14.00

67

Sway Bar

706202799

$91.00
