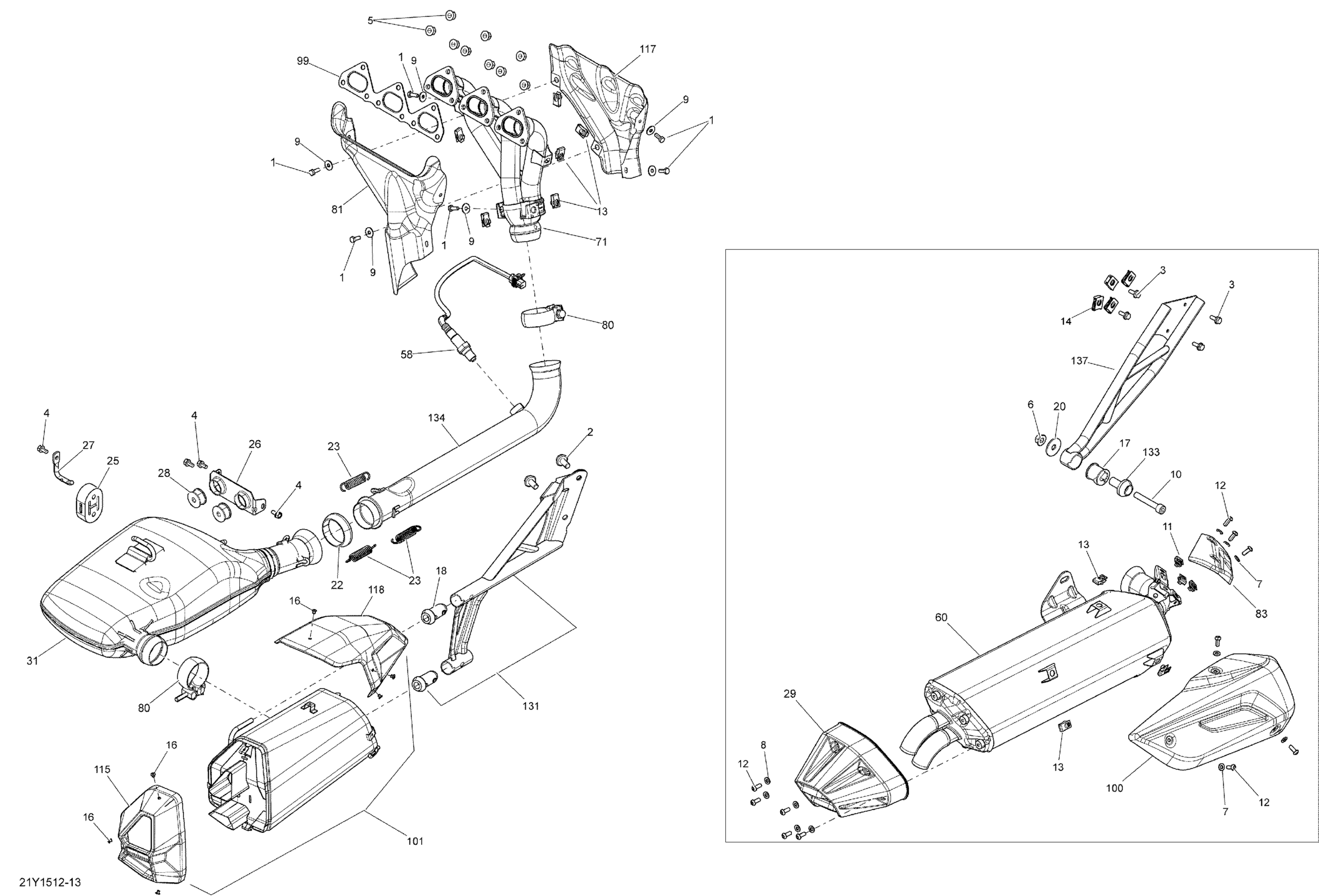

Can-Am Spyder F3 SE6, 2015 Exhaust System _21Y1512 Diagram

Hex. Screw M6 X 16, Scotch Grip

207361660

$0.91

Hex Flange Screw M10 X 20

207502044

$4.28

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Hex. Flange Screw M6 X 12

210261250

$1.56

Hex. Flange Nut M8

233081416

$1.63

Hex. Flange Nut M10

233101600

$4.39

Stainless Flat Washer M6

234061600

$0.25

Black, Flat Washer 6 mm

234061670

$1.00

Flat Washer M6, Stainless

234062600

$0.64

Socket Screw M10 X 60

244006060

$3.32

Panel Nut M6 X 1.0

250100198

$1.73

Stainless, Socket Screw, M6X16 S.Grip

250000437

$2.00

Panel Nut M6 X 1.0

250100198

$1.73

Panel Nut M6 X 1.0

250100208

$1.07

Pop-Rivet 5/32

293150059

$0.52

Anti-Vibration Rubber

293830162

$13.00

Rubber Bushing

293830167

$15.00

Washer 10 mm

506150000

$2.63

Exhaust Gasket

514054174

$27.66

Spring

415107100

$6.20

Rubber Bumper

707600638

$14.37

Front Bracket | Includes 360 to 360b1a

707600661

$13.00

RETAINING ROD - Call your local BRP dealership

707600666

Unavailable

Anti-Vibration Rubber

707600702

$8.34

Crystal Silver Muffler End Cap

707600867

$82.00

Primary Muffler

707601881

$1,229.00

Oxygen Sensor

707600872

$115.67

KIT MUFFLER ASSY - Call your local BRP dealership | Model-RT STD

219800438

Unavailable

Exhaust Manifold | Includes 40 to 40j

707601922

$770.00

Exhaust Clamp

707600980

$23.05

Heat Shield interior

707603641

$54.00

Crystal Silver Heat Shield

707601132

$25.00

Exhaust Seal

707601857

$19.00

Crystal Silver Heat Shield

707601382

$76.00

Crystal silver Muffler Ass'y | Short Muffler

707601389

$954.00

Crystal Silver Muffler End Cap | Short Muffler

707601478

$82.00

Heat Shield Exterior

707603642

$54.00

Crystal Silver Heat Shield | Short Muffler

707601479

$82.00

Muffler Support | Includes 240 to 240c

707601550

$46.00

Black Bushing | Includes 240d to 240d2

707601657

$18.00

Exhaust Tuned Pipe | Includes 30 to 30d

707601605

$339.00

Muffler Support | Includes 240a to 240a2

707601683

$68.00
